6
SS-CT100D/WGV100D/ZX100D
SECTION 4
EXPLODED VIEWS
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 A-1173-646-A OVERALL ASSY
2 4-874-614-21 SCREW (1) (3.5X14), TAPPING
3 A-1173-647-A FRONT PANEL ASSY
SP1 1-826-375-31 LOUDSPEAKER (8cm)
SP2 1-826-375-31 LOUDSPEAKER (8cm)

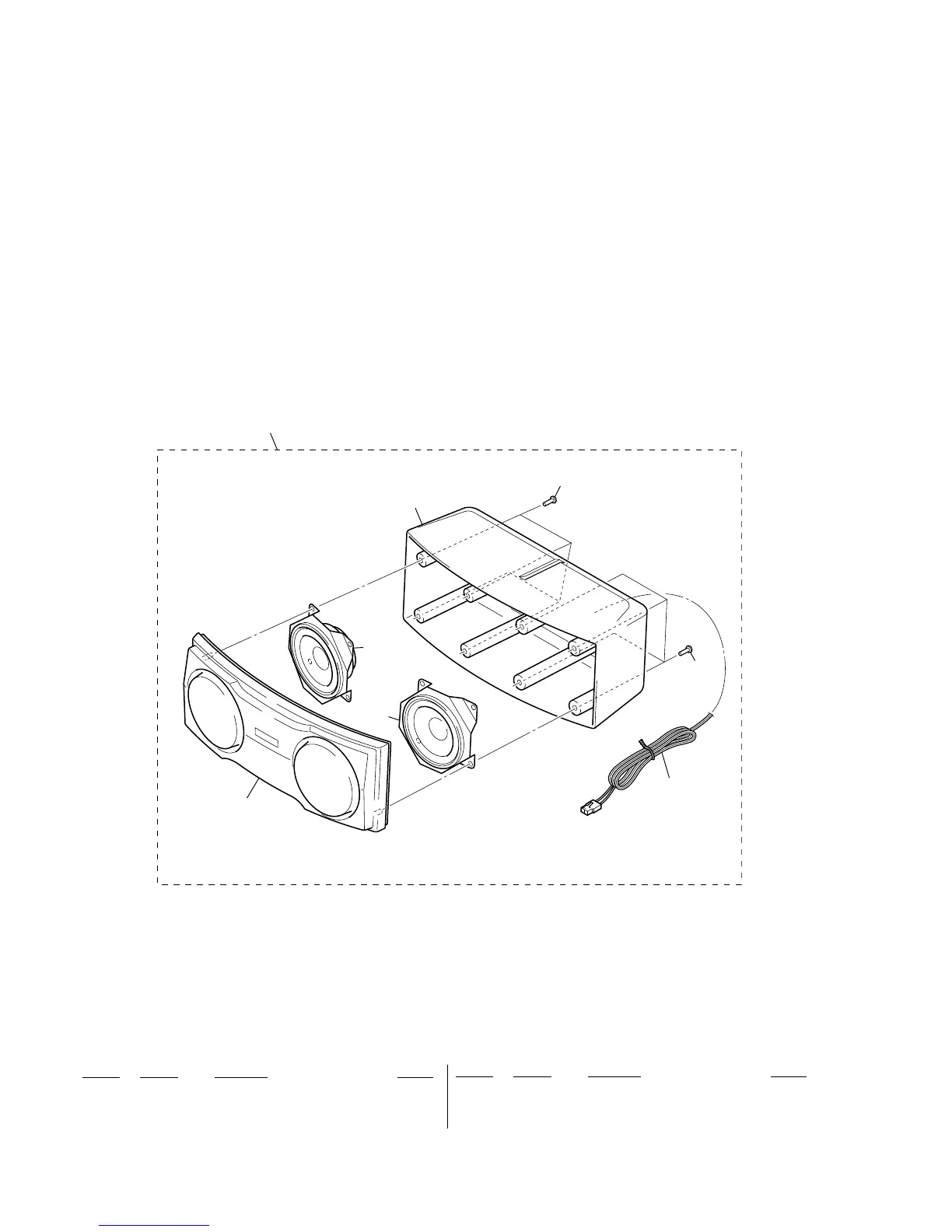

4-1. SS-CT100D (CENTER SPEAKER)
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
1
SP1
SP2
not supplied
not supplied
2
3
2
