Sony SS-CT100D - SS-ZX100 D (Front;Surround Speaker) Exploded View

7
SS-CT100D/WGV100D/ZX80DP/ZX100D/ZX100DP

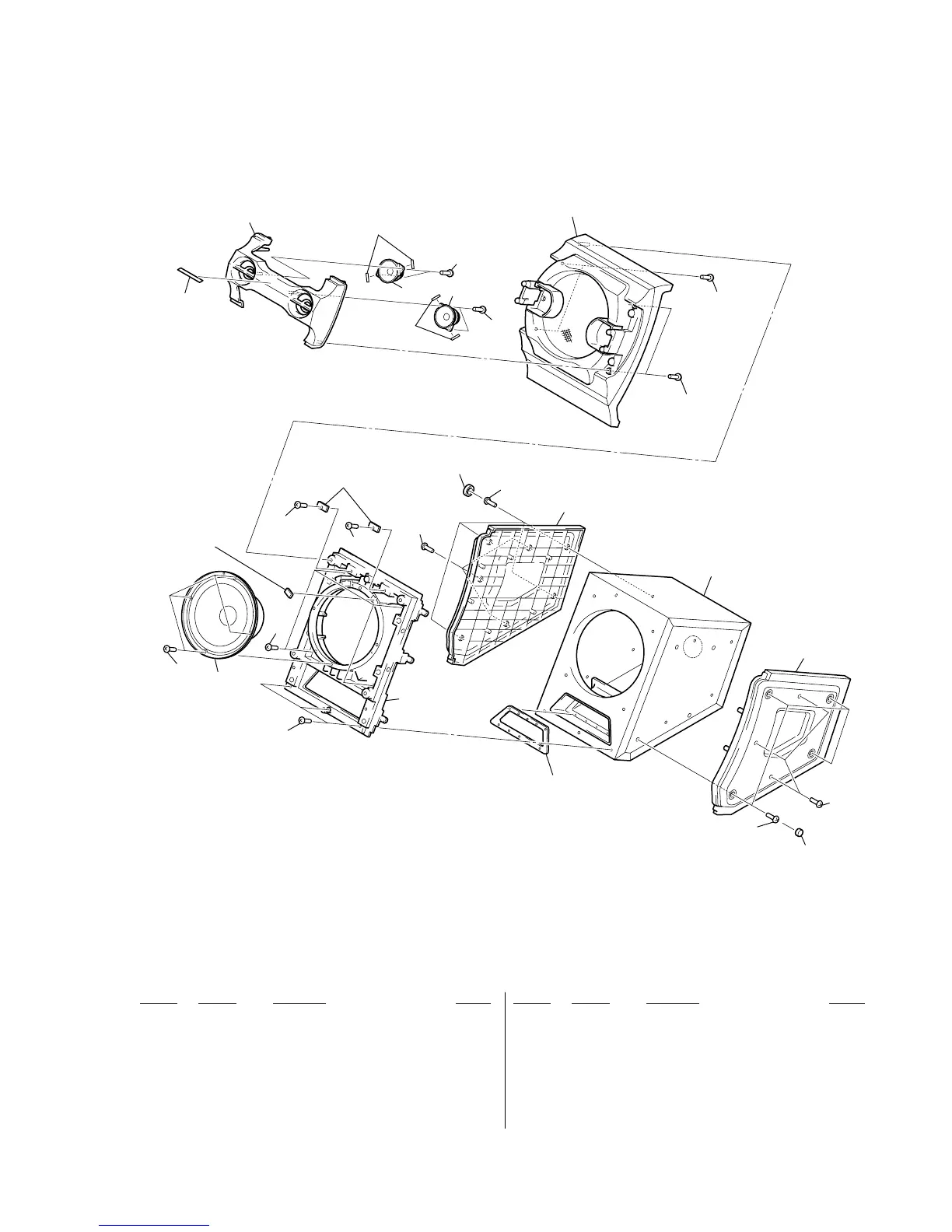

4-2. SS-ZX100D (FRONT/SURROUND SPEAKER)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 2-663-064-01 SUB PANEL
52 A-1158-867-A FRONT PANEL ASSY
53 4-874-614-02 SCREW (1) (3.5X14), TAPPING
54 2-663-061-01 WOOFER STAND
55 2-663-063-01 SIDE PANEL L
56 2-663-062-01 SIDE PANEL R
57 2-663-078-01 FOOT B
58 2-663-077-01 FOOT A
59 4-874-614-12 SCREW (1) (3.5X14), TAPPIN
60 4-986-971-02 SCREW (3.5)
61 2-669-801-01 EMBLEM, X-TRANCE
SP3 1-826-371-11 LOUDSPEAKER (5cm)
SP4 1-826-371-11 LOUDSPEAKER (5cm)
SP5 1-826-372-11 LOUDSPEAKER (20cm)
51
61
SP3
SP4
SP5
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
60
60
52
53
53
54
53
53
53
53
53
55
59
59
59
58
59
57
56
