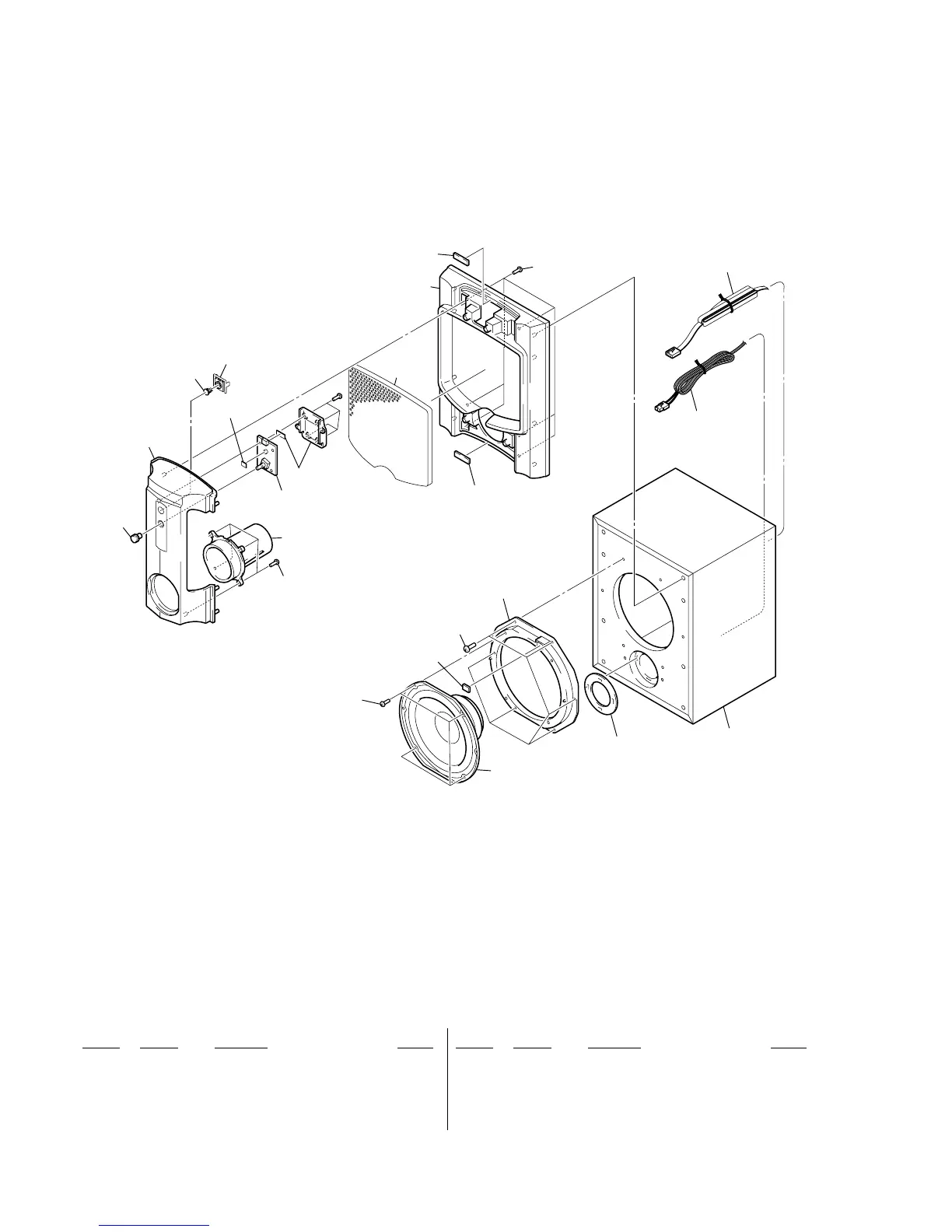

4-3. SS-WGV100D (SUBWOOFER)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 2-660-212-11 KNOB LEVEL
102 2-660-207-31 SUB PANEL
103 2-660-211-01 BUTTON POWER
104 A-1173-623-A SWPANEL BOARD, COMPLETE
105 2-660-219-01 GRILLE
106 2-660-206-11 FRONT PANEL
107 4-874-614-02 SCREW (1) (3.5X14), TAPPING
108 4-874-614-12 SCREW (1) (3.5X14), TAPPING
SP6 1-826-378-21 LOUDSPEAKER (20cm)
#1 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
