SS-F4000P/F5000/F5000P/
F6000/F6000P/F7000/F7000P
SECTION 1
EXPLODED VIEWS
Ref. No. Part No. Description Remark

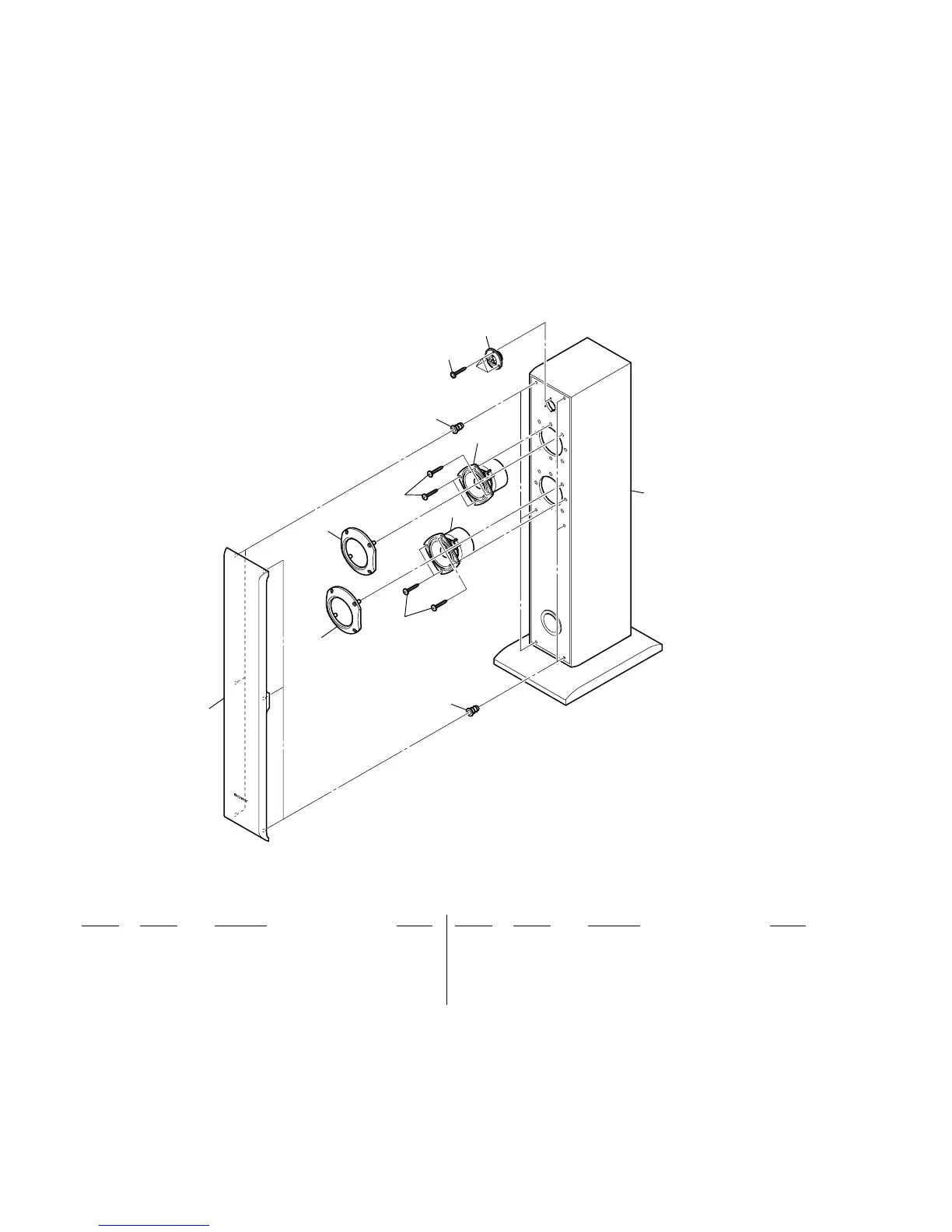

1-1. SS-F4000P
(AEP, E)
Ref. No. Part No. Description Remark
1 A-1226-023-A GRILLE FRAME ASSY
2 3-097-050-01 WOOFER RING
3 4-874-614-12 SCREW (1) (3.5X14), TAPPING
4 1-826-575-11 LOUDSPEAKER (10cm)
5 1-826-576-11 LOUDSPEAKER (10cm)
6 4-254-182-01 CATCHER
7 4-235-903-02 SCREW (3.5X20)
8 X-2176-239-1 TWEETER ASSY
9 A-1226-022-A SPEAKER CABINET ASSY (BLACK) (E)
9 A-1226-034-A SPEAKER CABINET ASSY (WOOD) (AEP, E)
NOTE:
• -XX, -X mean standardized parts, so they may
have some difference from the original one.
• Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Abbreviation
CND: Canadian model
• Color indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) … (RED)
↑↑
Parts color Cabinet's color
1
2
2
4
6
3
3
5
7
8
9
6
To Next Page
