SS-F4000P/F5000/F5000P/
F6000/F6000P/F7000/F7000P

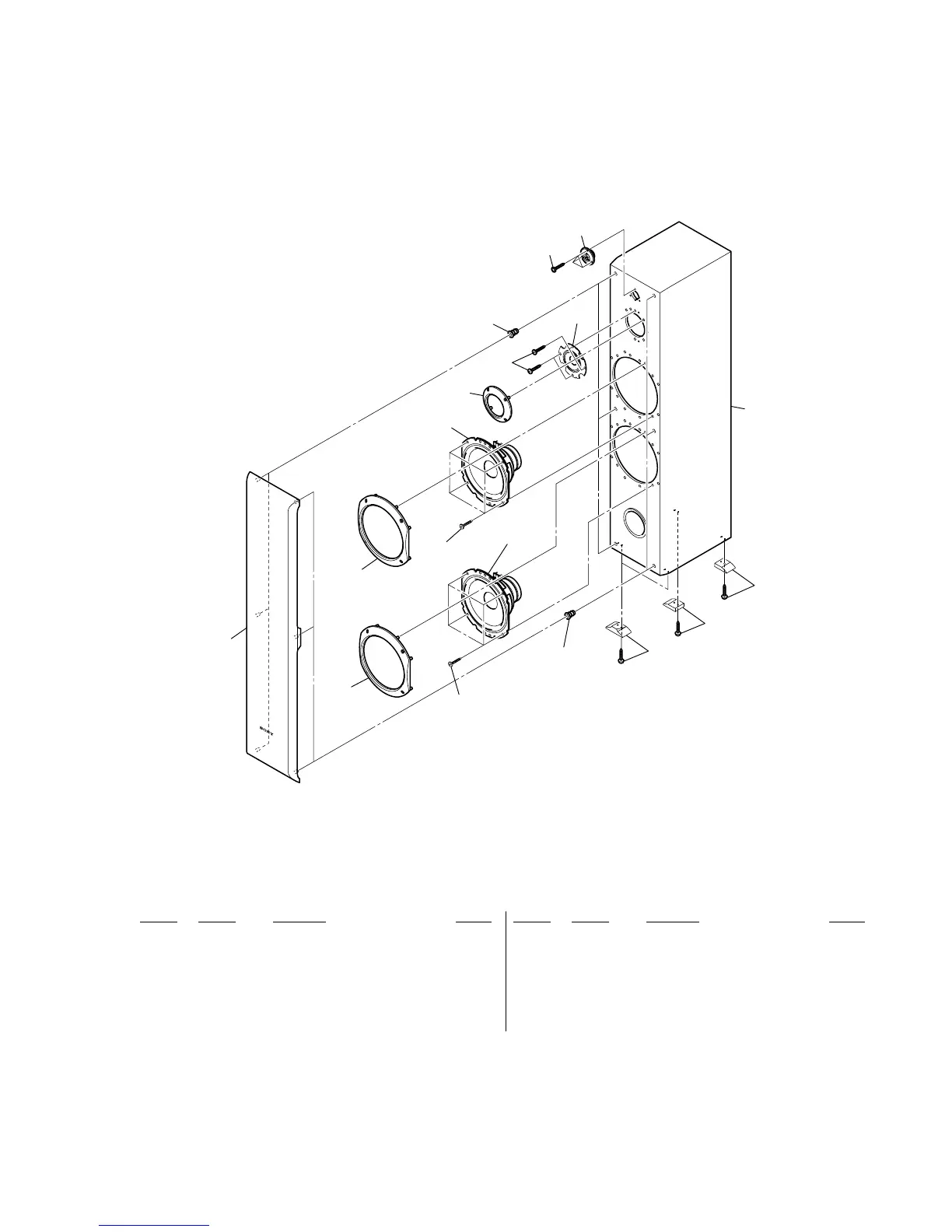

1-4. SS-F7000P
(US, CND, E)
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
151 A-1226-007-A GRILLE FRAME ASSY
152 2-898-827-01 WOOFER RING
153 1-826-577-11 LOUDSPEAKER (20cm)
154 1-826-592-11 LOUDSPEAKER (20cm)
155 2-898-826-01 MIDRANGE RING
156 4-254-182-01 CATCHER
157 4-874-614-12 SCREW (1) (3.5X14), TAPPING
158 1-826-594-11 LOUDSPEAKER (8cm)
159 4-235-903-02 SCREW (3.5X20)
160 X-2176-239-1 TWEETER ASSY
161 A-1224-862-A SPEAKER CABINET ASSY (BLACK) (US, CND, E)
161 A-1224-947-A SPEAKER CABINET ASSY (WOOD) (E)
151
152
152
153
155
156
157
158
159
160
161
154
156
not supplied
not supplied
not supplied
not supplied
not supplie
d
