SS-RT3/SRT3
SECTION 1

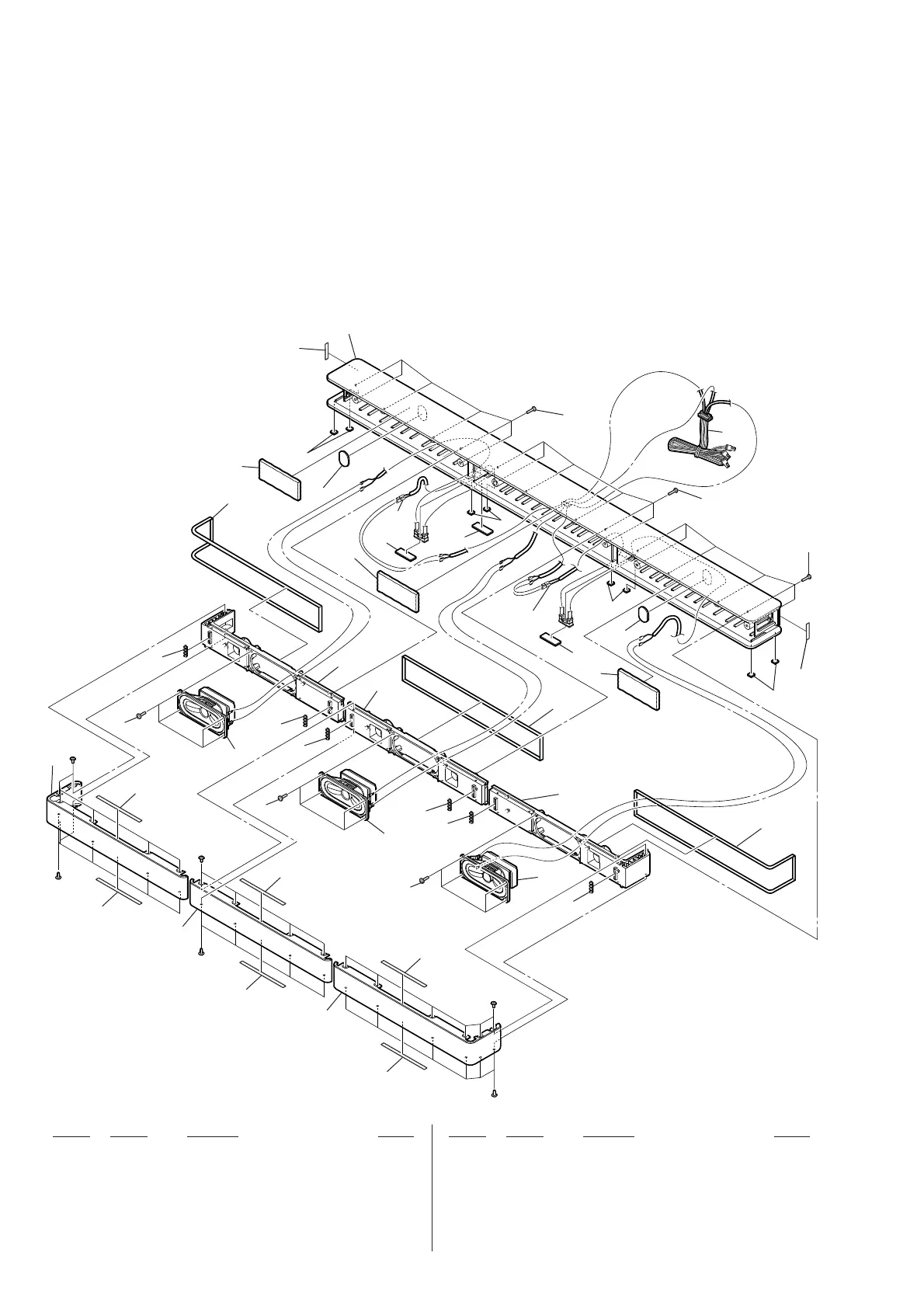

EXPLODED VIEW
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
Parts Color Cabinet’s Color
• Abbreviation
AUS : Australian model
CND : Canadian model
E12 : 220-240 V AC area in E model
EA : Saudi Arabia model
1-1. SS-RT3
1 4-986-971-02 +BV TAPPING SCREW TYPE-2 3.5
2 4-582-953-01 GRILLE, SIDE (EL-BAR)
3 4-582-952-01 GRILLE, CENTER (EL-BAR)
4 4-591-760-01 TPP + 3 X10 (HR) - 3W ZN
5 1-859-189-11 LOUDSPEAKER 4X10 CM
6 1-859-189-21 LOUDSPEAKER 4X10 CM
7 2-893-646-01 FOOT
8 1-849-303-11 INPUT CABLE
9 4-582-949-01 CABINET (EL-BAR)
#1 7-685-504-19 SCREW +BTP 2X6 TYPE2 N-S
ns not supplied
7
#1
#1
#1
#1
#1
#1
7
1
5
6
5
2
3
2
1
9
1
7
7
8
8
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
4
4
4
ns
ns
ns
ns
