— 2 —
Sony Corporation
Home A&V Products Company
9-922-815-11
98D1690-1
Printed in Japan © 1998.4
Published by Quality Assurance Dept.
(Shibaura)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 X-4950-138-1 FRONT PANEL ASSY
2 7-685-659-79 SCREW + BVTP 4 x 8 TYPE2 IT-3
3 7-685-661-21 SCREW + BVTP 4 x 12 TYPE2 SLIT
* 4 X-4950-131-1 CABINET ASSY, SPEAKER
5 4-929-125-01 SCREW (M4 x 16),TAPPING
6 1-537-775-11 TERMINAL BOARD

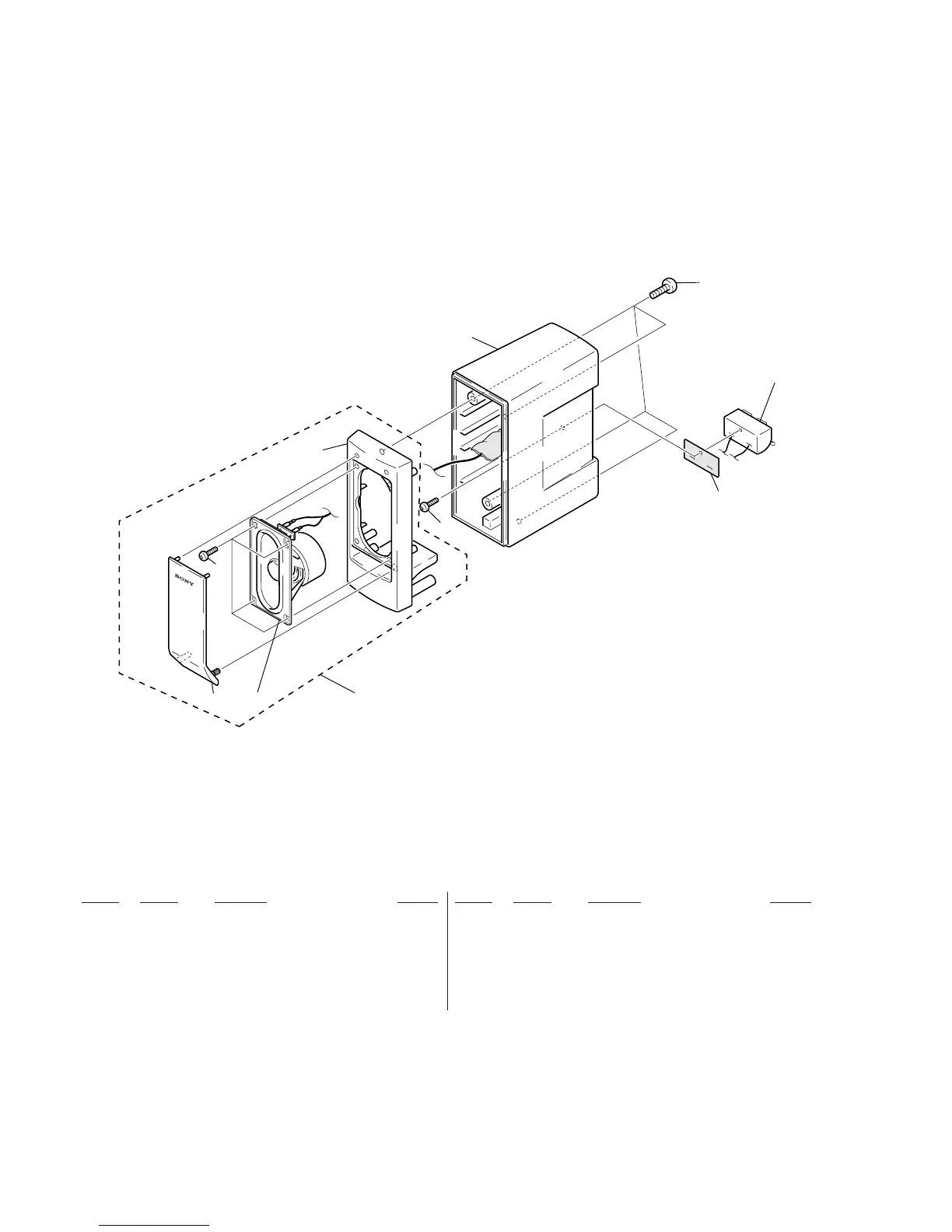

EXPLODED VIEW AND PARTS LIST
5
6
4
3
1
2
not supplied
not supplied
not supplie
NOTE:
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
ACCESSORIES & PACKING MATERIALS
*******************************
1-769-433-01 SPEAKER CORD (10 m)
1-769-433-11 SPEAKER CORD (2.5 m)
4-972-322-01 FOOT
