NOTE:
• The mechanical parts with no reference number in
the exploded views are not supplied.

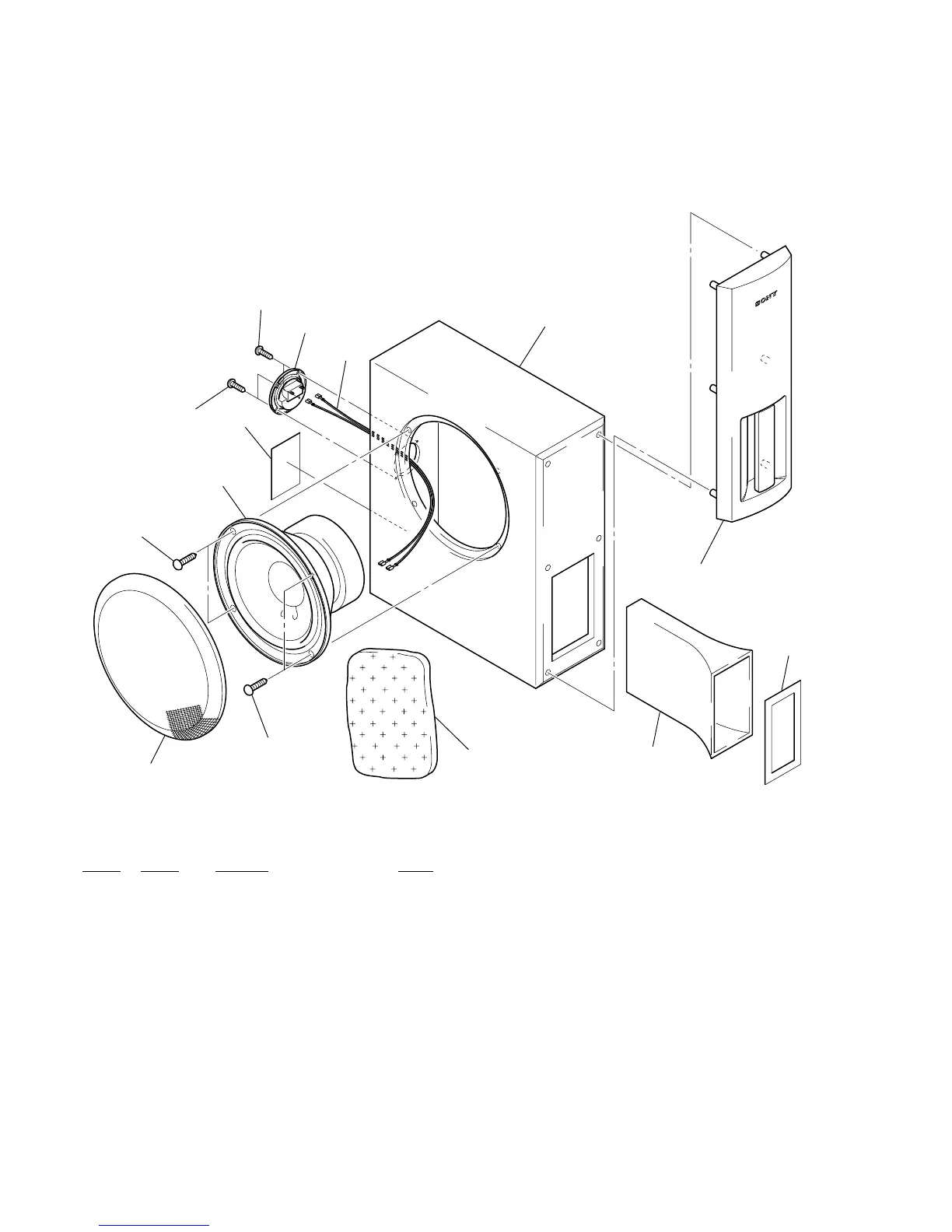

EXPLODED VIEW AND PARTS LIST
SS-WS300
Sony Corporation
Home Audio Division Company
9-929-053-11
2000A091681-1
Printed in Japan © 2000. 01
Published by Quality Assurance Dept.
SP1
not supplied
not supplied
1
2
9
3
4
5
5
6
7
7
8
Ref. No. Part No. Description Remark
1 3-043-791-01 FRONT (SW) PANEL
2 3-043-790-01 CUSHION (SW)
3 3-043-786-01 SPK (SW)CABINET
4 3-043-787-01 TERMINAL
5 7-621-849-20 +R3.1X16
6 4-228-407-01 MODEL NUMBER LABEL
7 7-621-846-58 +R4.1X20
8 X-4952-583-1 GRILLE FRAME ASSY
9 4-228-911-01 DUCT
SP1 1-529-617-11 SPEAKER (200 mm)
