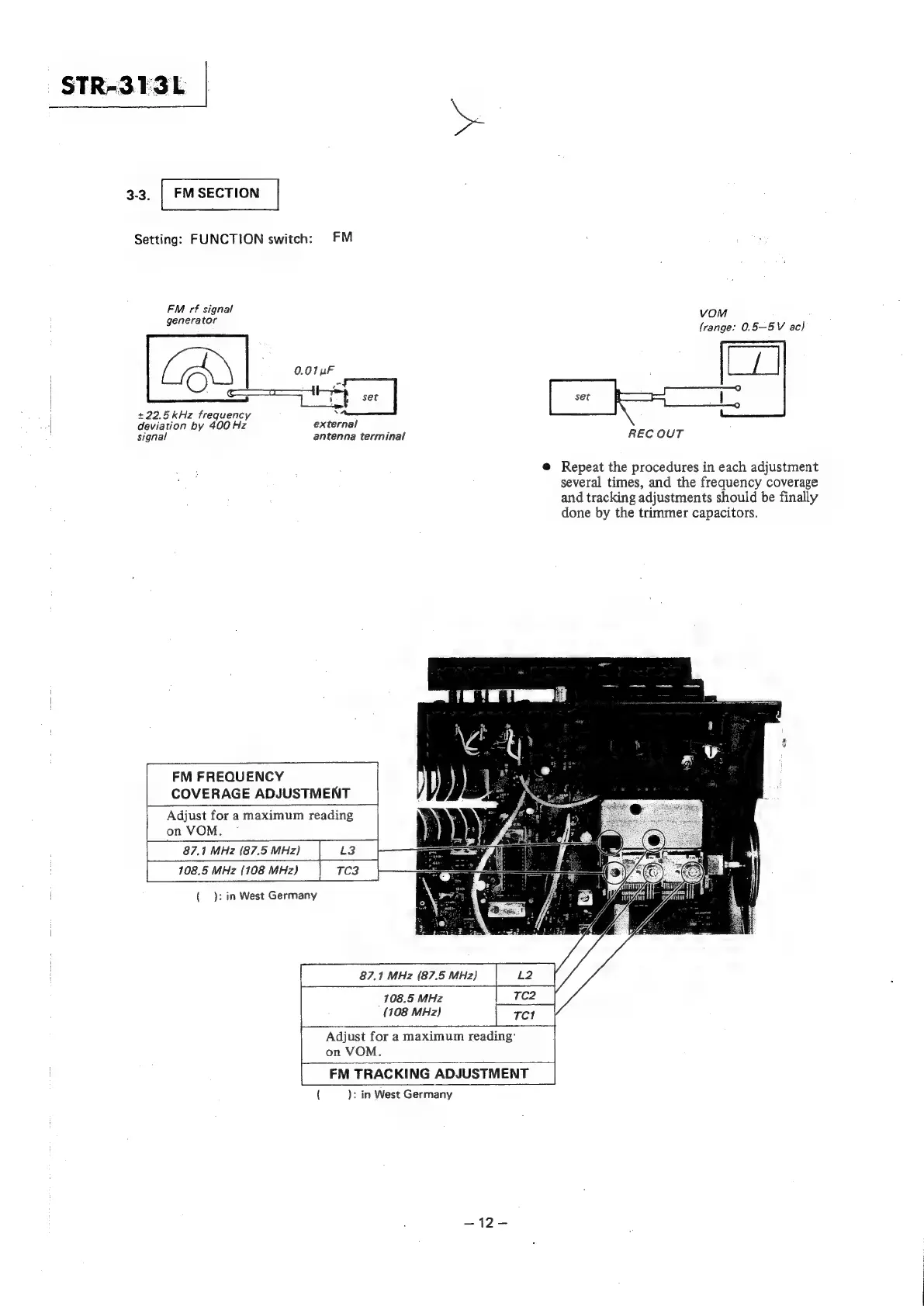

Sony STR-313L - FM SECTION

STR-313L
3.3. | FMSECTION
Setting: FUNCTION switch: FM
FM rf signal
VOM
enerator
: frange: 0.5—5V ac)
CAS . OO ERE
g ' t set set aa
: +22.5kHz frequency ‘
|
deviation
by
400
Hz
external
signal
antenna
terminal
REC
OUT
e@ Repeat the procedures in each adjustment
several times, and the frequency coverage
and tracking adjustments should be finally
done by the trimmer capacitors.
Pad
FM FREQUENCY
COVERAGE ADJUSTMENT
Adjust for a maximum reading
on VOM. © _|
87.1 MHz (87.5 MHz) £3
108.5 MHz (108 MHz) TC3
( ): in West Germany
87.1 MHz (87.5 MHz)
108.5 MHz
‘(108 MHz} TCI
Adjust for a maximum reading’
on VOM.
FM TRACKING ADJUSTMENT
( ): in West Germany
