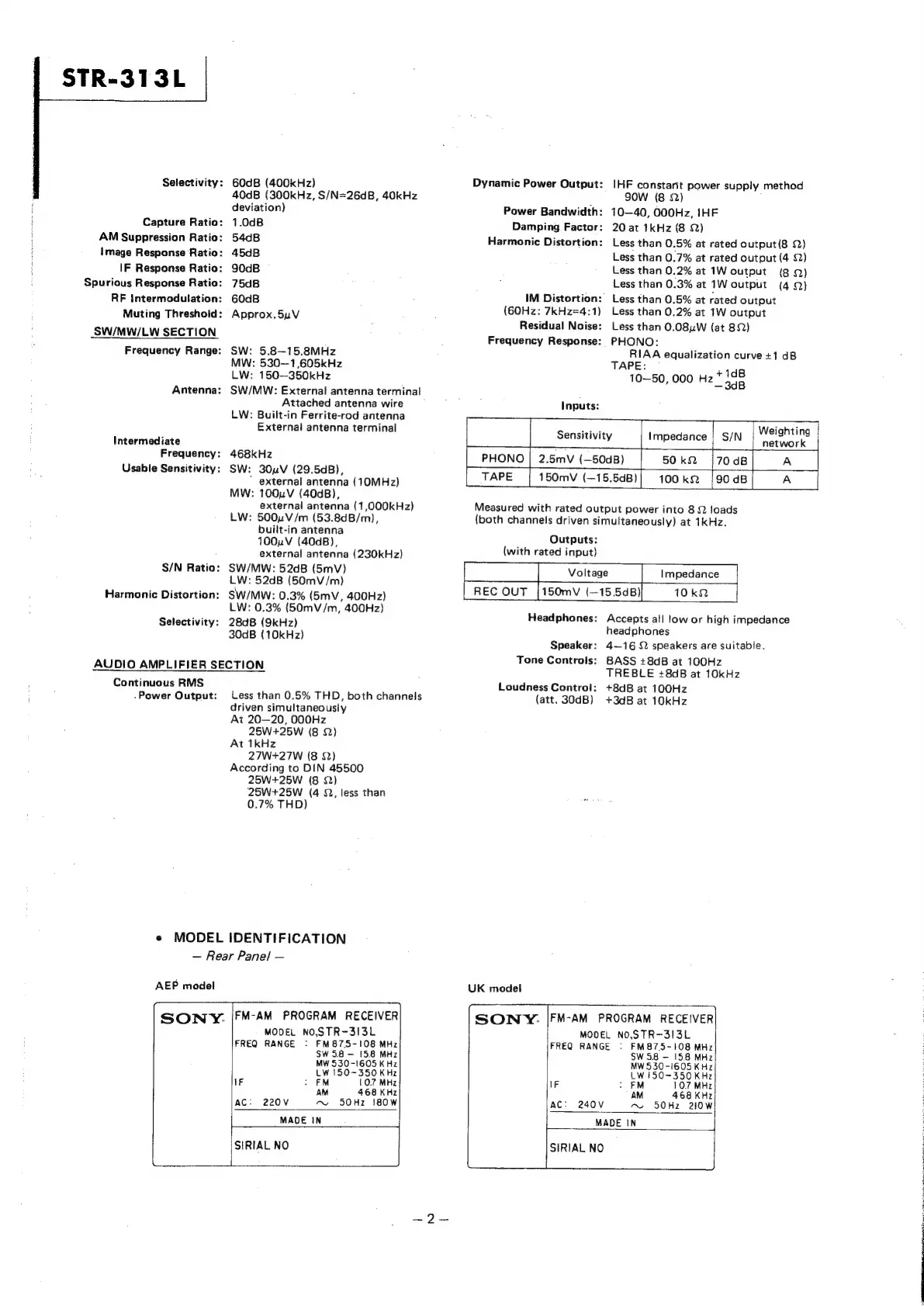

Sony STR-313L - SW;MW;LW SECTION; AUDIO AMPLIFIER SECTION; MODEL IDENTIFICATION

STR-313L
Selectivity:
Capture Ratio:
AM Suppression Ratio:
Image Response Ratio:
IF Response Ratio:
Spurious Response Ratio:
RF Intermodulation:
Muting Threshold:
SW/MW/LW SECTION
Frequency Range:
Antenna:
Intermediate
Frequency:
Usable Sensitivity:
S/N Ratio:
Harmonic Distortion:
Selectivity:
60dB (400kHz)
40dB (300kHz, S/N=26dB, 40kHz
deviation)
1.0dB
54dB
45dB
90cB
75dB
60dB
Approx. 5uV
SW: 5.8—-15.8MHz
MW: 530—1,605kHz
LW: 150—350kHz
SW/MW: External antenna terminal
Attached antenna wire
LW: Built-in Ferrite-rod antenna
External antenna terminal
468kHz
SW: 30uV (29.5dB),
* external antenna (10MHz)
MW: 100uV (40dB),
external antenna (1,000kHz)
LW: 500uV/m (53.8dB/m),
built-in antenna
100uV (40d8),
external antenna (230kHz)
SW/MW: 52dB (5mV)
LW: 52dB (50mV/m)
SW/MW: 0.3% (5mV, 400Hz)
LW: 0.3% (50mV/m, 400Hz)
28dB (9kHz)
30dB (10kHz)
AUDIO AMPLIFIER SECTION
Continuous RMS
.Power Output:
Less than 0.5% THD, both channels
driven simultaneously
At 20—20, OOOHz
25W+25W (8 2)
At 1kHz
27W+27W (8 Q)
According to DIN 45500
25W+25W (8 &2)
25W+25W (4 2, less than
0.7% THD)
e MODEL IDENTIFICATION
— Rear Panel —
AEP model
=
SONY. |FM-AM PROGRAM RECEIVER
MODEL NOSTR-3I3L
FREQ RANGE : FM87.5-108 MHz
SW 5.8 — 15.8 MHz
MW 530-1605 KHz
LW 150-350 KHz
iF : FM 107 MHz
AM 468 KHz
AC: 220V ~ 50Hz 180W
MADE IN |
SIRIAL NO
Ns sets | es
Dynamic Power Output:
Power Bandwidth:
Damping Factor:
Harmonic Distortion:
IM Distortion:
(60Hz: 7kHz=4:1)
Residual Noise:
Frequency Response:
IHF constant power supply method
9OW (8 2)
10—40, O000Hz, IHF
20 at kHz (8 2)
Less than 0.5% at rated output(8 2)
Less than 0.7% at rated output (4 2)
Less than 0.2% at 1W output (8 2)
Less than 0.3% at 1W output (4 9)
Less than 0.5% at rated Output
Less than 0,2% at 1W output
Less than 0.08uW (at 82)
PHONO:
ee equalization curve +1 dB
10-50, 000 Hz * 148
—3dB
Inputs:
nye Weighting
Sensitivity | Impedance | S/N network
PHONO
|
2.5mVv
(-sod8)
|
50k2
|700B]
A
150mV (—15.5dB)| 100k2 |90dB A
Measured with rated output power into 89 loads
{both channels driven simultaneously) at 1kHz.
Outputs:
(with rated input)
[| voir | “rpadanes
REC OUT |150mV (-15.50B)) — 10kQ |
Headphones:
Speaker:
Tone Controls:
Loudness Control:
Accepts all low or high impedance
headphones
4—16 2 speakers are suitable.
BASS +8d8 at 100Hz
TREBLE +8dB at 10kHz
+8dB at 100Hz
(att. 30dB) +3dB at 10kHz
UK model
SONY. |FM-AM PROGRAM RECEIVER
MODEL NO,STR-3I3L
FREQ RANGE : FM875-108 MHz
SW 5.8 — 15.8 MHz
MW 530-1605 K Hz
LW 150-350 KHz
iF : FM 107 MHz
AM 468 KHz
AC: 240V ~ 50Hz 210W
MADE IN 4
SIRIAL NO
