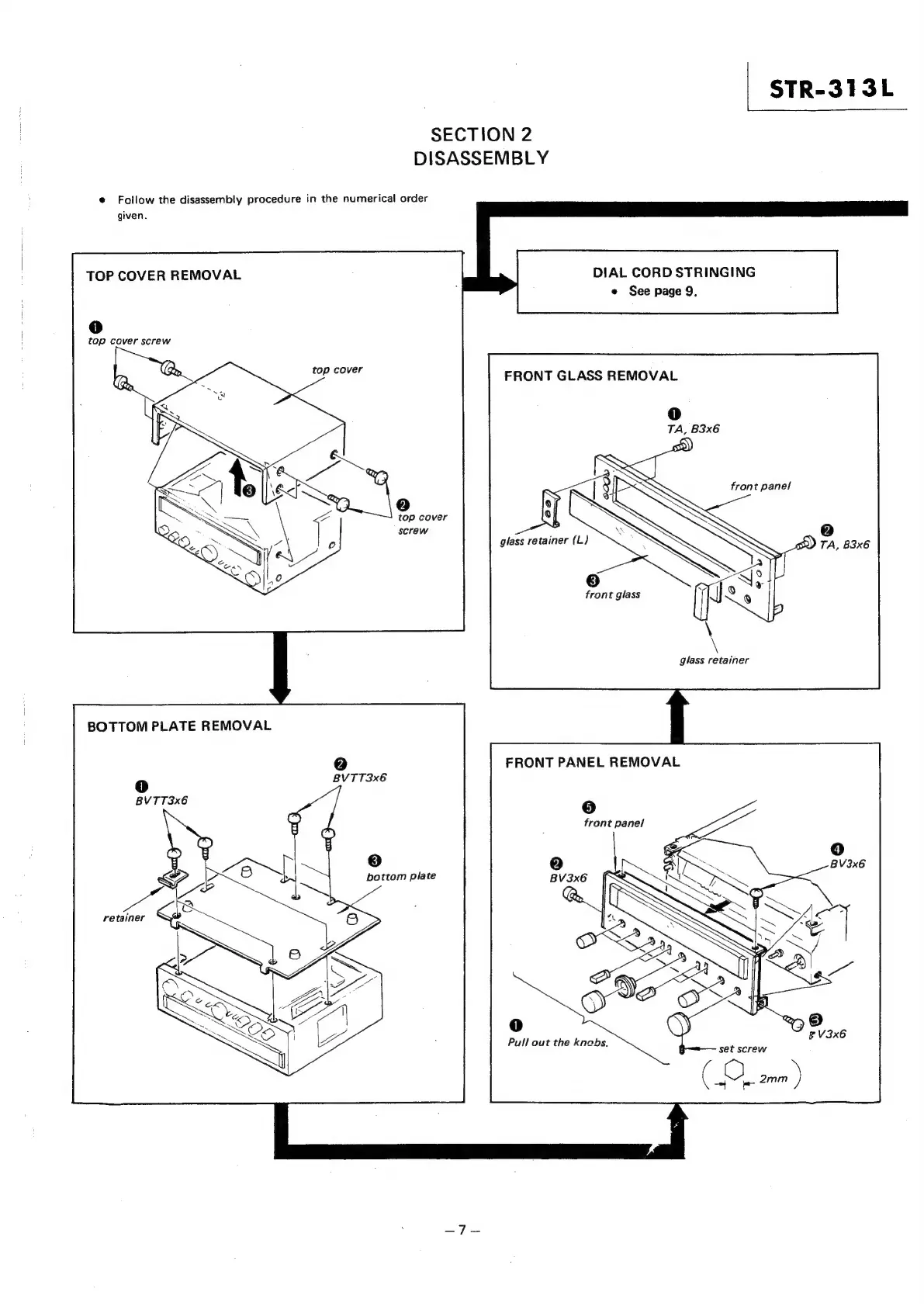

Sony STR-313L - SECTION 2 DISASSEMBLY; TOP COVER REMOVAL; FRONT GLASS REMOVAL; BOTTOM PLATE REMOVAL

SECTION 2
STR-313L
DISASSEMBLY
e@ Follow the disassembly procedure in the numerical order
given.
TOP COVER REMOVAL
top cover screw
top cover
top cover
screw
BOTTOM PLATE REMOVAL
BVTT3x6
BVTT3x6
3)
bottom plate
retainer
DIAL CORD STRINGING
e See page 9.
FRONT GLASS REMOVAL
TA, B3x6
front panel
front glass
glass retainer
FRONT PANEL REMOVAL
5)
front panel
Pull out the knobs.
set screw
2mm )
