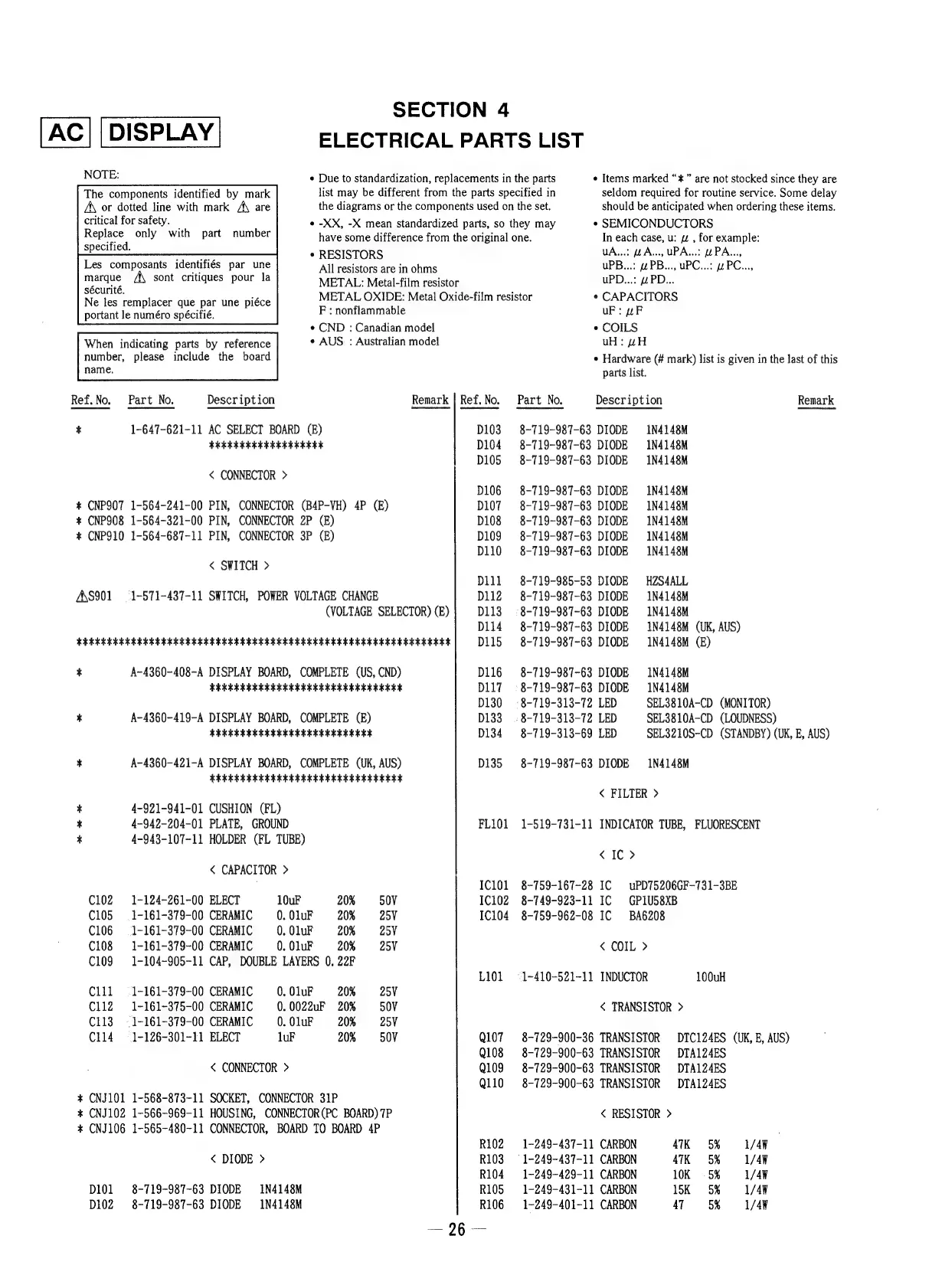

SECTION 4
ELECTRICAL PARTS LIST
NOTE:
The components identified by mark
A\ or dotted line with mark A\ are
critical for safety.
Replace only with part number
specified.
« Due to standardization, replacements in the parts
list may be different from the parts specified in
the diagrams or the components used on the set.
« -XX, -X mean standardized parts, so they may
have some difference from the original one.
¢ RESISTORS
All resistors are in ohms
« Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
¢ SEMICONDUCTORS
In each case, u: yz , for example:
UA... WA..., UPA... ZPA...,
uPB...: @PB..., uPC...: w PC...,
Les composants identifiés par une
marque /\ sont critiques pour la METAL: Metal-film resistor uPD...: “4 PD...
ete anna Aueonapuinecnieee METAL OXIDE: Metal Oxide-film resistor * CAPACITORS
portant le numéro spécifié. F : nonflammable uP: uP
¢ CND : Canadian model « COILS
When indicating parts by reference ° AUS : Australian model uH: #H
number, please include the board * Hardware (# mark) list is given in the last of this
name. parts list.
Ref.No. Part No. Description Remark | Ref.No. Part No. Description Remark
x 1-647-621-11 AC SELECT BOARD (E) D103 =8-719-987-63 DIODE 1N4148M
pertetttssttstess es 3 D104 8-719-987-63 DIODE 1N4148M
D105 8-719-987-63 DIODE 1N4148M
< CONNECTOR >
D106 =©8-719-987-63 DIODE 1N4148M
* CNP907 1-564-241-00 PIN, CONNECTOR (B4P-VH) 4P (E) D107 ©8-719-987-63 DIODE 1N4148M
* CNP908 1-564-321-00 PIN, CONNECTOR 2P (E) D108 8-719-987-63 DIODE 1N4148M
* CNP910 1-564-687-11 PIN, CONNECTOR 3P (E) D109 8-719-987-63 DIODE 1N4148M
D110 8-719-987-63 DIODE 1N4148M
< SWITCH >
Dlll 8-719-985-53 DIODE HZS4ALL
A\S901 =: 1-571-437-11 SWITCH, POWER VOLTAGE CHANGE D112) ~=8-719-987-63 DIODE 1N4148M
(VOLTAGE SELECTOR) (E) D113 = 8-719-987-63 DIODE 1N4148M
D114 8-719-987-63 DIODE 1N4148M (UK, AUS)
Po STIPE ELSSSSSES SSS SS SSS SS SLOSS SSIS SSS TSS T TTS TLS SS SSS TESS STS + 3 D115 8-719-987-63 DIODE 1N4148M (E)
x A-4360-408-A DISPLAY BOARD, COMPLETE (US, CND) D116 =©8-719-987-63 DIODE 1N4148M
KKKEAKKEEEKEKAKER ERA AER RARER ERE LE D117. = 8-719-987-63 DIODE 1N4148M
D130. = 8-719-313-72 LED SEL3810A-CD (MONITOR)
k A-4360-419-A DISPLAY BOARD, COMPLETE (E) D133 = 8-719-313-72 LED SEL3810A-CD (LOUDNESS)
peSSssstetesssststsess tees 3 D134 8-719-313-69 LED SEL3210S-CD (STANDBY) (UK, E, AUS)
* A-4360-421-A DISPLAY BOARD, COMPLETE (UK, AUS) D135 8-719-987-63 DIODE 1N4148M
psstettisteetiestertessestest tess
< FILTER >
* 4-921-941-01 CUSHION (FL)
x 4-942-204-01 PLATE, GROUND FL101 1-519-731-11 INDICATOR TUBE, FLUORESCENT
x 4-943-107-11 HOLDER (FL TUBE)
< IC >
< CAPACITOR >
1C101 8-759-167-28 IC uPD75206GF-731-3BE
C102 1-124-261-00 ELECT 10uF 20% 50V 1C102 8-749-923-11 IC GP1U58XB
C105 = 1~161-379-00 CERAMIC 0. OluF 20% 25V IC104 8-759-962-08 IC BA6208
C106 =. 1-161-379-00 CERAMIC 0. OluF 20% 25V
C108 1-161-379-00 CERAMIC 0. OluF 20% 25V < COIL >
C109 1-104-905-11 CAP, DOUBLE LAYERS 0. 22F
L101 =: 1-410-521-11 INDUCTOR 100uH
Cll1 =: 1-161-379-00 CERAMIC 0. OluF 20% 25V
C112. ~=1-161-375-00 CERAMIC 0.0022uF 20% 50V < TRANSISTOR >
C113. =: 1-161-379-00 CERAMIC 0. OluF 20% 25V
C114 =: 1-126-301-11 ELECT luF 20% 50V Q107 8-729-900-36 TRANSISTOR DTC124ES (UK, E, AUS)
Q108 8-729-900-63 TRANSISTOR DTA124ES
< CONNECTOR > Q109 8-729-900-63 TRANSISTOR DTA124ES
Q110 8-729-900-63 TRANSISTOR DTA124ES
* CNJ101 1-568-873-11 SOCKET, CONNECTOR 31P
* CNJ102 1-566-969-11 HOUSING, CONNECTOR(PC BOARD) 7P < RESISTOR >
* CNJ106 1-565-480-11 CONNECTOR, BOARD TO BOARD 4P
R102 1-249-437-11 CARBON ATK 5% 1/44
< DIODE > R103 = 1-249-437-11 CARBON 47K 5% 1/4¥
R104 1-249-429-11 CARBON 10K = 5% 1/44
D101 8-719-987-63 DIODE 1N4148M R105 1-249-431-11 CARBON 15K 5% 1/4¥
D102 »=©8-719-987-63 DIODE 1N4148M R106 = 1-249-401-11 CARBON 47 5% 1/4¥
