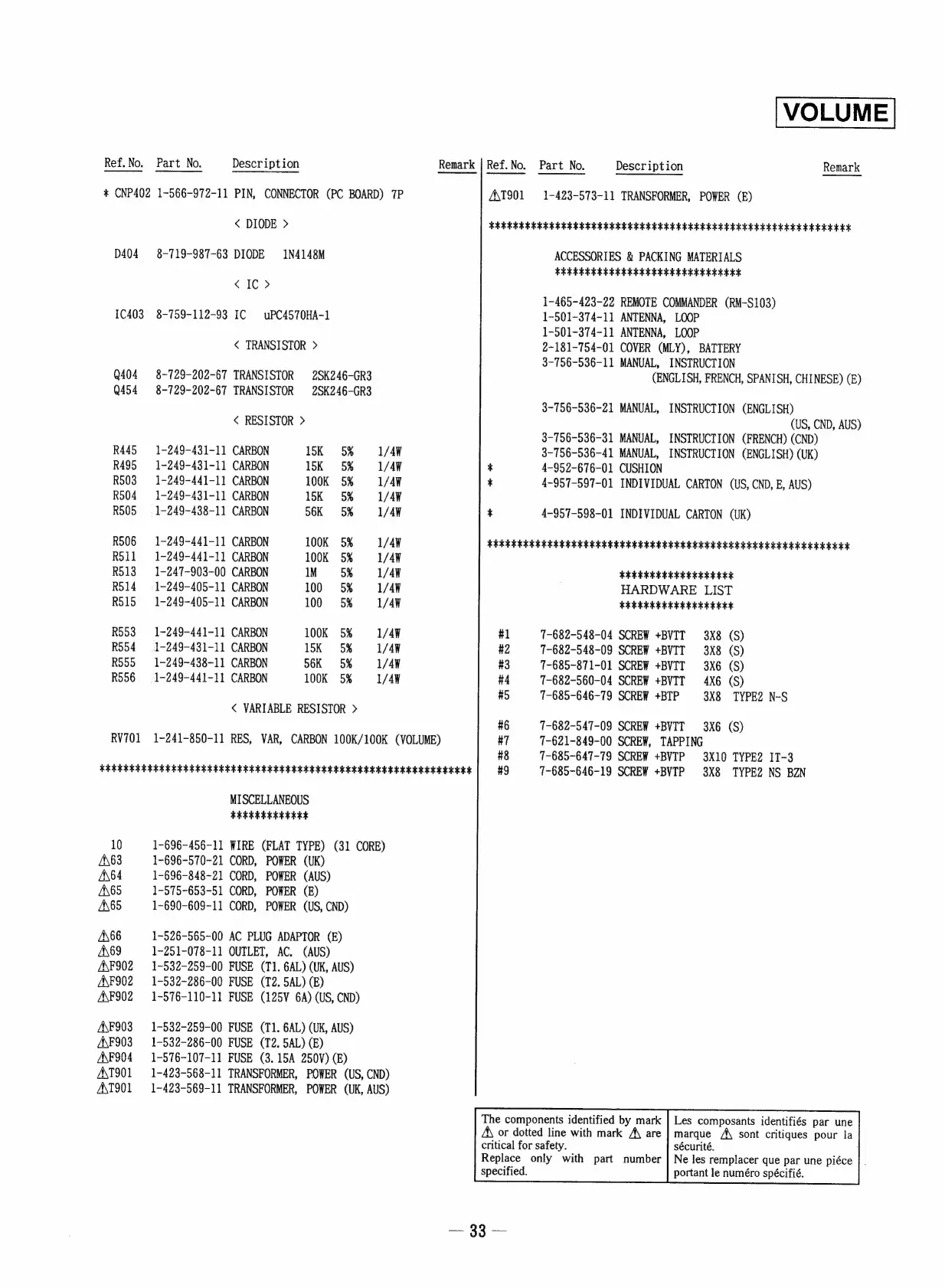

Sony STR-D311 - Page 20

Ref. No. Part No. Description
* CNP402 1-566-972-11 PIN, CONNECTOR (PC BOARD) 7P
< DIODE >
D404 8-719-987-63 DIODE 1N4148M
< IC >
IC403 8-759-112-93 IC uPC4570HA-1
< TRANSISTOR >
Q404. 8-729-202-67 TRANSISTOR 2SK246-GR3
Q454 8-729-202-67 TRANSISTOR 2SK246-GR3
< RESISTOR >
R445 1-249-431-11 CARBON ISK 5% 1/4¥
R495 1-249-431-11 CARBON ISK 54 8 1/4W
R503 1-249-441-11 CARBON 100K 5% 1/44
R504 =1-249-431-11 CARBON 15K 5% 1/4¥
R505 = 1-249-438-11 CARBON 56K 5%) / AW
R506 = 1-249-441-11 CARBON 100K 5% 1/44
R511 = 1-249-441-11 CARBON 100K 5% 1/4¥
R513: 1-247-903-00 CARBON IMB 1/4¥
R514 =: 1-249-405-11 CARBON 100 5% 1/4
R515 = 1-249-405-11 CARBON 100 5% 1/4W
R553: 1-249-441-11 CARBON 100K 5% 1/49
R554 =: 1-249-431-11 CARBON 15K 5% 1/4W
R555: 1-249-438-11 CARBON 56K 5% 1/4¥
R556 =: 1-249-441-11 CARBON 100K 5% = 1/4¥
< VARIABLE RESISTOR >
RV701 1-241-850-11 RES, VAR, CARBON 100K/100K (VOLUME)
HKKKKEKERAK REE ARE EERE ERR RARER KARE EEER AREER RE EERE REE RE ERE
MISCELLANEOUS
KAREAKEKREKKE
10 1-696-456-11 WIRE (FLAT TYPE) (31 CORE)
A63 1-696-570-21 CORD, POWER (UK)
A\64 1-696-848-21 CORD, POWER (AUS)
A\65 1-575-653-51 CORD, POWER (E)
A\65 1-690-609-11 CORD, POWER (US, CND)
A\66 1-526-565-00 AC PLUG ADAPTOR (E)
A\69 1-251-078-11 OUTLET, AC. (AUS)
A\F902 1-532-259-00 FUSE (TI. 6AL) (UK, AUS)
A\F902 1-532-286-00 FUSE (T2. SAL) (E)
AF902 = 1-576-110-11 FUSE (125V 6A) (US, CND)
A\F903 1-532-259-00 FUSE (T1. 6AL) (UK, AUS)
A\F903 —-1-532-286-00 FUSE (T2. 5AL) (E)
A\F904 = 1-576-107-11 FUSE (3. 15A 250V) (E)
A\T901 — 1-423~-568-11 TRANSFORMER, POWER (US, CND)
A\T901 — 1-423-569-11 TRANSFORMER, POWER (UK, AUS)
Remark
Ref.No. Part No. Description Remark
A\T901 —-1-423-573-11 TRANSFORMER, POWER (E)
pecses tess s tts tssssssesesessest tts tissssssesccessssesssees to
ACCESSORIES & PACKING MATERIALS
KKKEKKRARERAKARER EERE AR ERAR EER
1-465-423-22 REMOTE COMMANDER (RM-S103)
1-501-374-11 ANTENNA, LOOP
1-501-374-11 ANTENNA, LOOP
2-181-754-01 COVER (MLY), BATTERY
3-756-536-11 MANUAL, INSTRUCTION
(ENGLISH, FRENCH, SPANISH, CHINESE) (E)
3-756-536-21 MANUAL, INSTRUCTION (ENGLISH)
(US, CND, AUS)
3-756-536-31 MANUAL, INSTRUCTION (FRENCH) (CND)
3-756-536-41 MANUAL, INSTRUCTION (ENGLISH) (UK)
* 4-952-676-01 CUSHION
* 4-957-597-01 INDIVIDUAL CARTON (US, CND, E, AUS)
* 4-957-598-01 INDIVIDUAL CARTON (UK)
Pe Le Lest s sss sss sssssssrssss sss sss st etessrecstestessesst sees
KKKKEKAAKEKEAKERE RS
HARDWARE LIST
RERREKEREERAK ARERR
#1 7-682-548-04 SCREW +BVIT 3X8 (S)
#2 7-682-548-09 SCREW +BVTT 3X8 (S)
#3 7-685-871-01 SCREW +BVIT 3X6 (S)
#4 7-682-560-04 SCREW +BVIT 4X6 (S)
#5 7-685-646-79 SCREW +BIP 3X8 TYPE2 N-S
#6 7-682-547-09 SCREW +BVTT 3X6 (S)
#7 7-621-849-00 SCREW, TAPPING
#8 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#9 7-685-646-19 SCREW +BVTP 3X8 TYPE2 NS BZN
The components identified by mark
A\ or dotted line with mark A\ are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque A\ sont critiques pour la
sécurité,
Ne les remplacer que par une piéce
portant le numéro spécifié.
