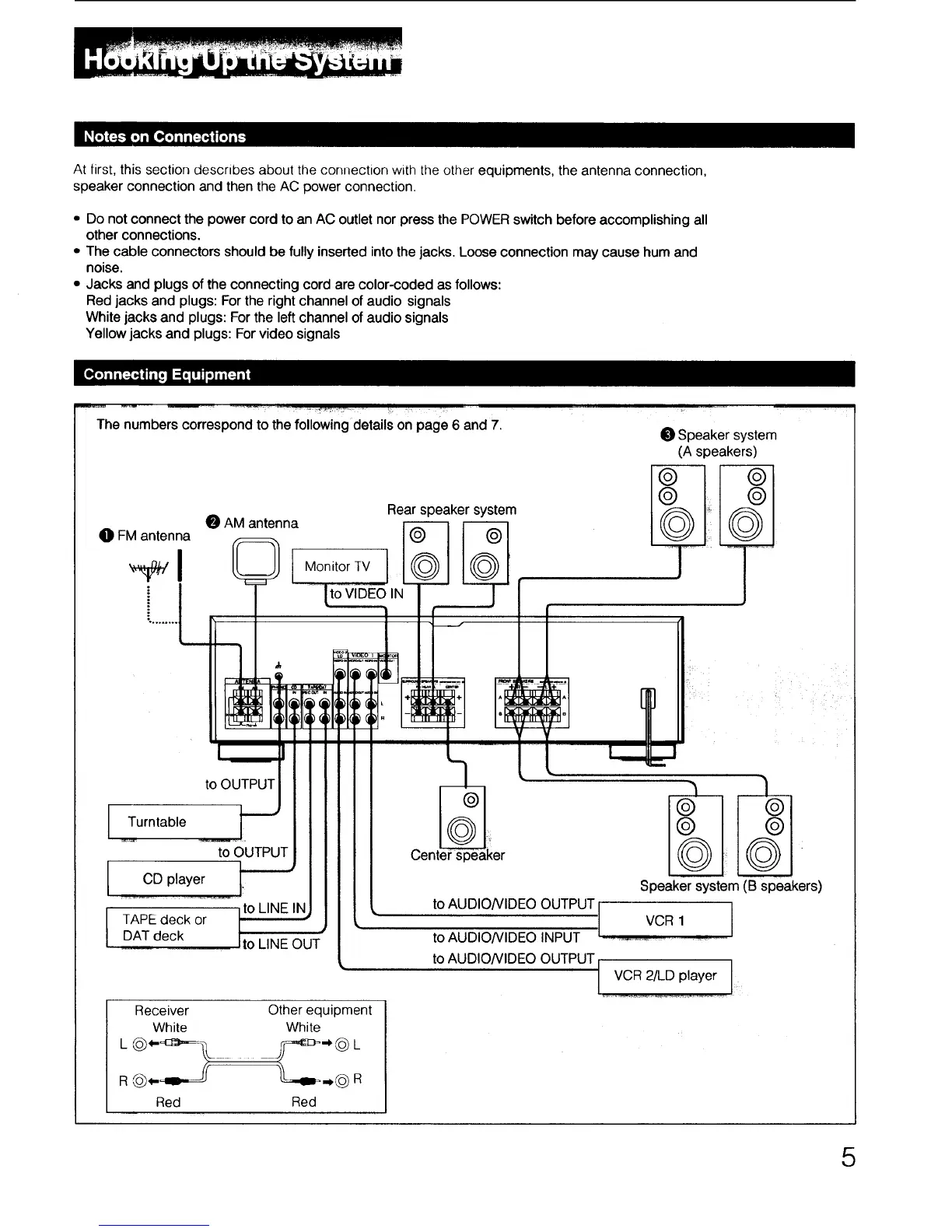

At first, this section describes about the connection with the other equipments, the antenna connection,
speaker connection and then the AC power connection.
• Do not connect the power cord to an AC outlet nor press the POWER switch before accomplishing all
other connections.
• The cable connectors should be fully inserted into the jacks. Loose connection may cause hum and
noise.
• Jacks and plugs of the connecting cord are color-coded as follows:
Red jacks and plugs: For the right channel of audio signals
White jacks and plugs: For the left channel of audio signals
Yellow jacks and plugs: For video signals
The numbers correspond to the following details on page 6 and 7.
O FM antenna
AM antenna
Rearspeaker system
Monitor TV ]
lto VIDEO IN
O Speaker system
(A speakers)
Turntable
CD player
TAPE deck or
DAT deck
to OUTPUT
to OUTPUT
to LINE IN
to LINE OUT
Receiver Other equipment
White White
'
Red Red
Cent
Speaker system (B speakers)
to AUDIO/VIDEO OUTPUT I VCR 1 I
to AUDIO/VIDEO INPUT ..........................
to AUDIO/VIDEO OUTPUT
VCR 2/LD player
5
