Sony STR-DA7ES - FM Tuner Section; Sensitivity; Usable Sensitivity; AM Tuner Section

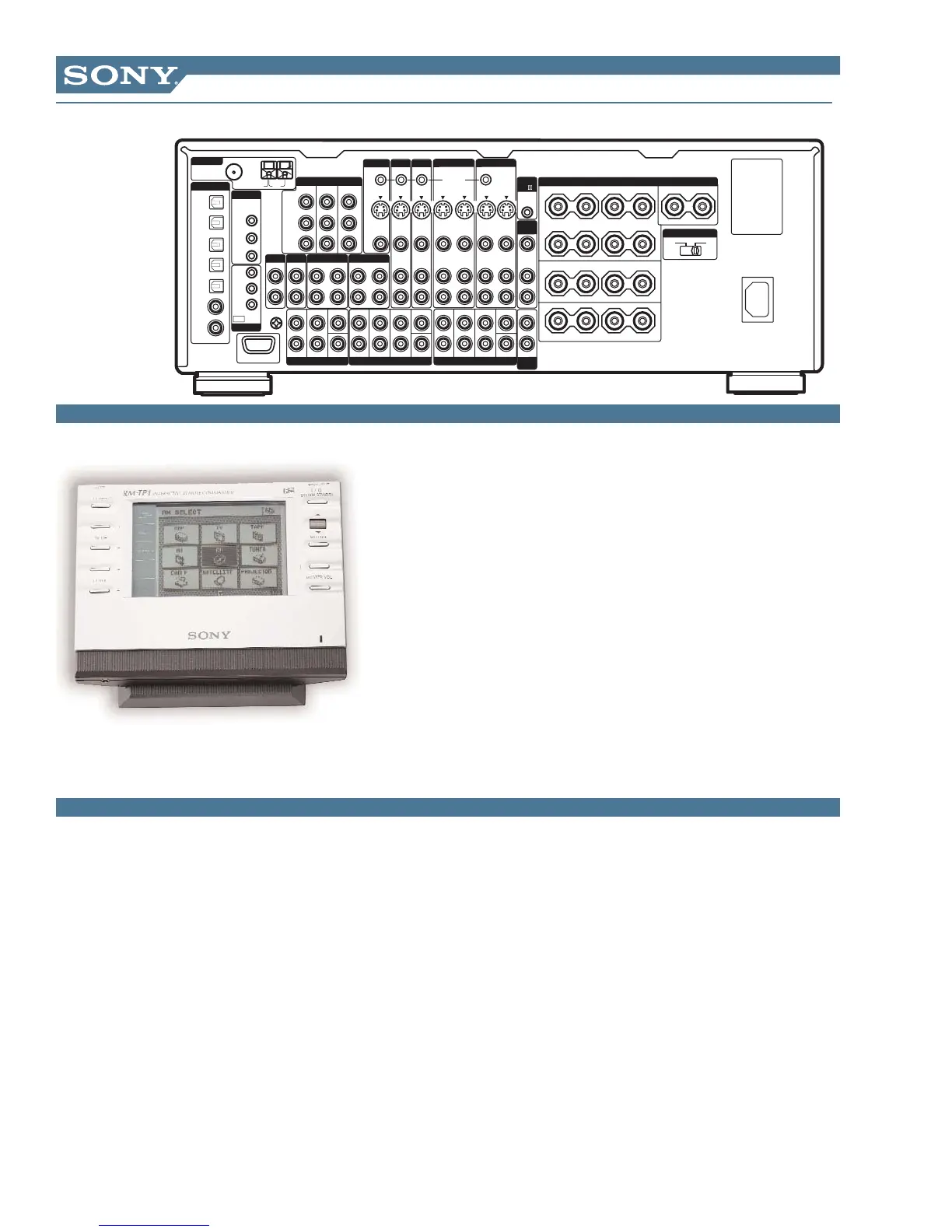

A World of Control in the Palm of Your Hand A wealth of
functionality all at your finger tips. With the newly developed 2 Way Touch
Panel Interactive Remote Commander control is easy. The unique design
employs both “hard” and “soft” keys for the ultimate in ease of use. The
“hard” keys control the most used of functons such as, TV Volume +/-, TV
Channel +/-, TV Inputs, Power On/Off, Master Volume +/-, Muting and
System Standby. The interactive touch panel is simple and intuitive. Three
basic functons are found on the panel, RM select, Macro and RM setup.
All options within the remote can use the simple “jog dial” to rotate or scroll
through functions and menus.The remote not only offers a wealth of con-
trol options, but feedback as well.
Seeing the title of your CD as it is playing or monitoring the status of the
soundfield that you are using is as easy as looking at the handy backlit
LCD display. Even performing several commands in sequence is a breeze
with the Macro functionality found on the remote control. The remote con-
trol is able to perform 16 separate macros of 24 commands each. To
ensure that the remote is always ready when you are, we employ a
rechargeable battery and cradle. Truly a command performance!
Specifications
Amplifier Section
• Multi-Channel Mode:
120W x 7, 0.05% THD
• Stereo Mode (2 Channel):
120 Watts Per Channel x 2
8 ohms, 20 - 20kHz, 0.05%
THD
• Input Sensitivity/Impedance:
Phone: 2.5mV/50 kOhm
Line (CD): 150mV/50 kOhm
• Frequency Response (2 -
20kHz):
Phono: RIAA ±0.5dB
Line (CD): 10Hz-100kHz
+0.5/-2db
• S/N Ratio (IHF-A Network):
Phono: 86dB
Line (CD): 100dB
• Rec Out Level/Impedance:
150mV/10 kOhm
• Pre Out Level/Impedance:
Front: 2V/1 kOhm
Center: 2V/1 kOhm
Rear: 2V/1 kOhm
Woofer:2V/1 kOhm
Video Section
• Input Sensitivity/Impedance:
CompositeIn:1Vp-p/75 ohm
S-Video In(Y):1Vp-p/75 ohm
S-VideoIn(C):0.286Vp-p/75
ohm
• OutputSensitivity/Impedance:
Composite In:1Vp-p/75 ohm
S-VideoIn(Y):1Vp-p/75 ohm
S-Video In (C): 0.286Vp-
p/75 ohm
General
• Power Requirements:
AC120V, 60Hz
• Power Consumption
(Standby): 1W
• Power Consumption (in
Operation): 450W
Accessories
Supplied Accessories
• Instruction Manual
• RM-TP1 Remote Control
• RM-US105A 2nd Room
Remote Control
Weights & Measures
• Dimensions (W x H x D):
17" x 6.8" x 18.3"
• Weight: 44 lbs.
ADDITIONAL FEATURES
KEY TECHNOLOGY
M D / DA TT A PE P H O N O
IN OUT IN OUT IN
SIGNAL GND
U
FRONT SURROUND CENTER
SUB WOOFERSUB WOOFER
L
L
R
L
R
R
AUDIO
IN
VIDEO
IN
VIDEO
IN
AUDIO
IN
M U LTI CHANN EL I N P U T 1 M U LTI CHANN EL I N P U T 2
FRONT SURROUND SURR BACK CENTER
VIDEO
OUT
TV/SAT IN DVD/LD IN MONITOR OUT
C O M PO N E N T VI D EO
Y
R
B/B-Y
P
R/R-Y
75Ω COAXIAL
FM
AM
U
AN TE NNA
CD /S ACD
IN
ND / D A T
O P T I CA L
O U T
I R
O U T 1
M A I N
R
OO M
2 ND
R
OO M
3 RD
R
OO M
I R
O U T 2
I R I N
O U T
M D / D A T
O P T I CA L
I N
T V / S A T
O P T I CA L
I N
D
V D / L D
O P T I CA L
I N
C D / S AC D
C O A X I A L
I N
D
V D / L D
C O A X I A L
I N
C D / S AC D
O P T I CA L
I N
D IGIT A L
I R R E M OTE
T R IGGE R
A SSIG NAB LE
R S 232C
OUTIN STATUS IN
S2 VIDEO
IN
S2 VIDEO
IN
S2 VIDEO
OUT
TV/S A T D V D /L D
MO N ITO R
AC O U TLET
I M P E D A N C E U S E 4 - 16 Ω
OUT IN OUT IN
OUT IN OUT IN
L
R
VIDEO VIDEO
AUDIO AUDIO
SUB WOOFER
CENTER
VIDEO OUT
AUDIO OUT
VARIABLE
VARIABLE
AUDIO
OUT
P R E O U T
FRONT SURROUND SURR BACK
C T R L
A1
2ND
R
OOM
3RD
R
OOM
OUT IN OUT
OUT
IN
S2 VIDEO
CONTROL S
S2 VIDEO
VI D EO 2 VI D EO 1
L R
A
B
L R
L R
–
+
–
+
–
+
–
+
–
+
–
+
–
+
–
+
–
+
F R O N T
S URR O UND
C E N T E R
S URR BACK
SPE AK E R S
IMPE DANC E SELE C TO R
4 Ω 8 Ω
Product Information
STR-DA7ES
ES Receiver
©2002 Sony Electronics Inc. All rights
reserved. Features and specifications are
subject to change without notice.
RM-TP1
