Frequency response
Analog 10 Hz – 70 kHz,
+0.5/–2 dB (with sound
field and equalizer bypassed)
Input
Analog (PORTABLE IN) Sensitivity: 1 V/50 kohms
S/N
3)
: 96 dB
(A, 500 mV
4)
)
Analog (Except PORTABLE IN) Sensitivity: 500 mV/50 kohms
S/N
3)
: 96 dB
(A, 500 mV
4)
)
Digital (Coaxial) Impedance: 75 ohms
S/N: 100 dB
(A, 20 kHz LPF)
Digital (Optical) S/N: 100 dB
(A, 20 kHz LPF)
Output (Analog)
AUDIO OUT Voltage: 500 mV/1 kohm
SUBWOOFER Voltage: 2 V/1 kohm
Equalizer
Gain levels ±6 dB, 1 dB step
3)
INPUT SHORT (with sound field and equalizer bypassed).
4)
Weighted network, input level.
FM tuner section
Tuning range 87.5 MHz – 108.0 MHz
Antenna (aerial) FM wire antenna (aerial)
Antenna (aerial) terminals 75 ohms, unbalanced
Intermediate frequency 10.7 MHz
AM tuner section
Tuning range
Area Tuning scale
10 kHz step 9 kHz step
US, CND 530 kHz – 531 kHz –
1,710 kHz 1,710 kHz
ECE, UK, AUS, TW – 531 kHz –
1,602 kHz
Antenna (aerial) Loop antenna (aerial)
Intermediate frequency 450 kHz
Video section
Inputs/Outputs
Video: 1 Vp-p, 75 ohms
COMPONENT VIDEO: Y: 1 Vp-p, 75 ohms
P
B: 0.7 Vp-p, 75 ohms
P
R: 0.7 Vp-p, 75 ohms
80 MHz HD Pass Through
General
Power requirements
Area Power requirements
US, CND, TW 120 V AC, 60 Hz
ECE, UK, AUS 230 V AC, 50/60 Hz
Power consumption 240W
Power consumption (during standby mode)
0.3 W (When “CTRL.HDMI” is set to
“CTRL OFF”)
Dimensions (width/height/depth) (Approx.)
430 mm × 157.5 mm × 322 mm
(17 in × 6
1/4 in × 12 3/4 in) including
projecting parts and controls
Mass (Approx.) 7.6 kg (16 lb 13 oz)

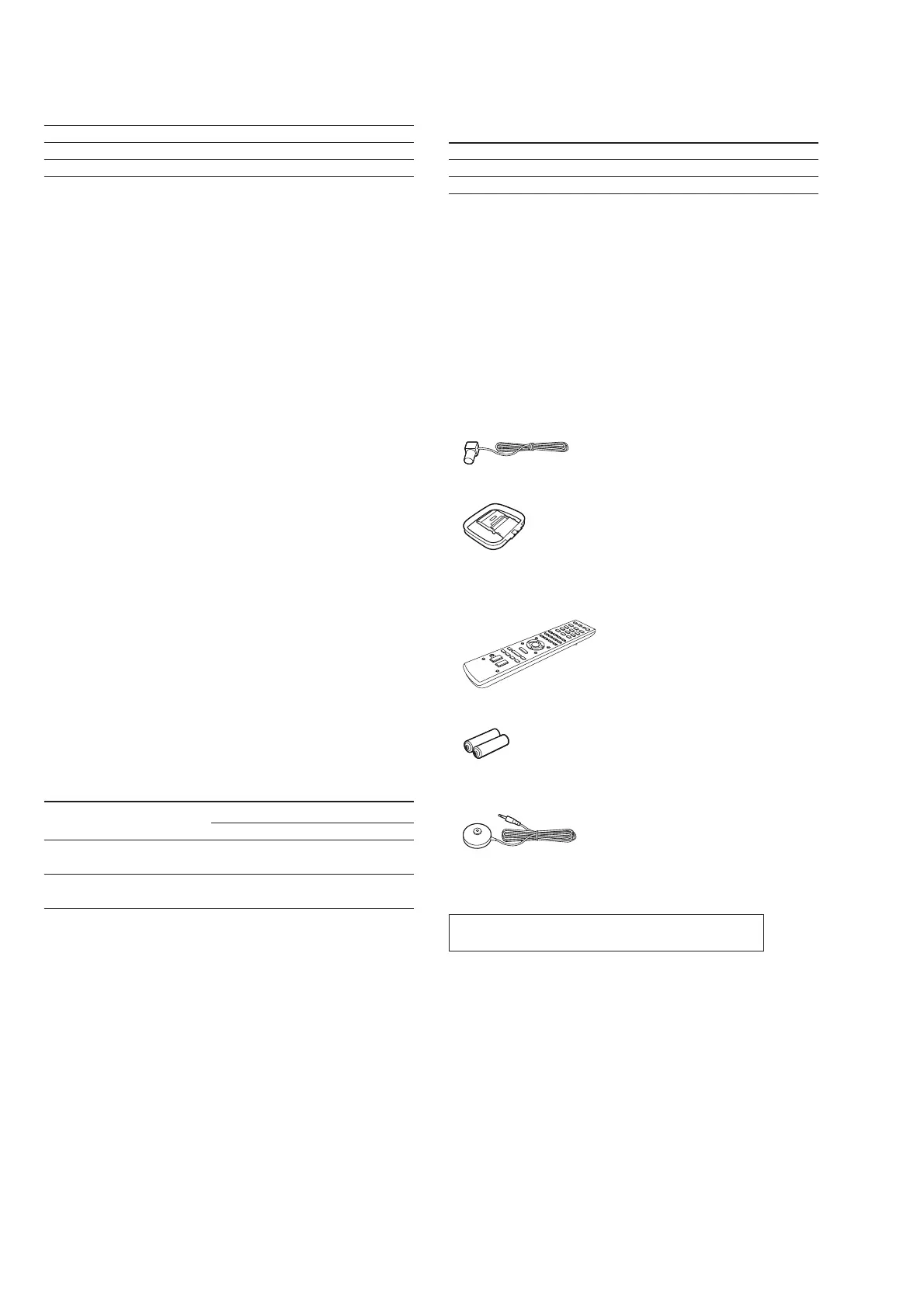

Supplied accessories
•
Operating Instructions
• Quick Setup Guide
• FM wire antenna (aerial) (1)
• AM loop antenna (aerial) (1)
• Remote control (1)
– RM-AAU104 (US and CND models only)
– RM-AAU105 (Other models)
• R6 (size AA) batteries (2)
• Optimizer microphone (ECM-AC2)
(ECE, UK, AUS and TW models only) (1)
Design and specifications are subject to change without notice.
• Halogenated flame retardants are not used in the certain
printed wiring boards.
Abbreviation
AUS : Australian model
CND : Canadian model
ECE : Continental European, East European and Russian models
TW : Taiwan model
