STR-K670P

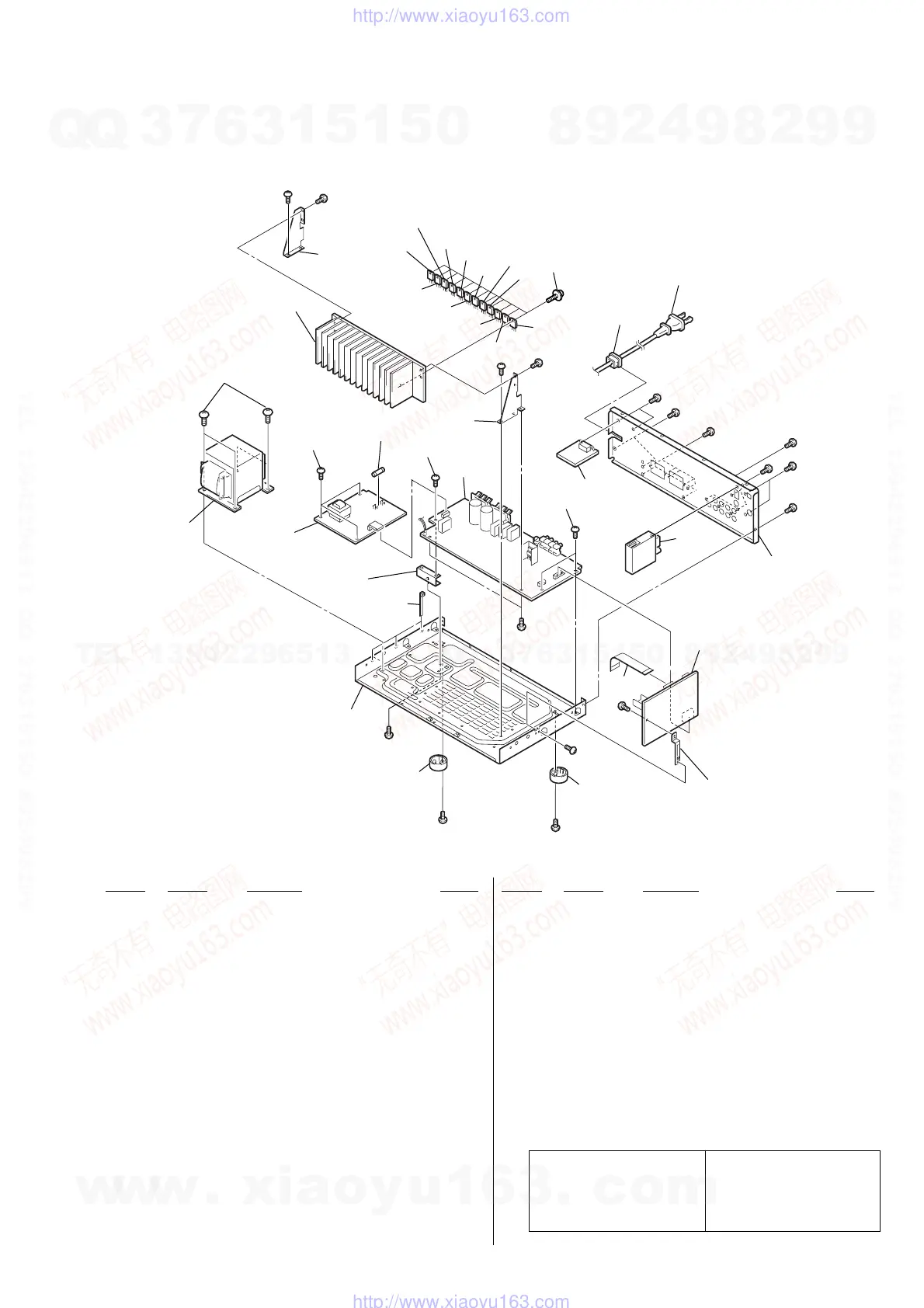

4-2. CHASSIS SECTION-1
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 X-4953-448-1 FOOT ASSY
54 A-1082-613-A STANDBY BOARD, COMPLETE (US, CND)
54 A-1083-592-A STANDBY BOARD, COMPLETE
(EXCEPT US, CND, E51, MX)
54 A-1083-669-A STANDBY BOARD, COMPLETE (MX)
54 A-1083-980-A STANDBY BOARD, COMPLETE (E51)
54 A-1148-678-A STANDBY BOARD, COMPLETE (AR)
55 4-249-675-01 +BV SUMITITE S 4X6 ROUND
57 3-905-609-01 SCREW (TRANSISTOR)
* 58 3-703-244-00 BUSHING (2104), CORD
0 59 1-777-071-23 CORD, POWER (EXCEPT US, CND, MX, AUS)
0 59 1-783-820-11 CORD, POWER (US, CND)
0 59 1-783-941-12 CORD, POWER (AR)
0 59 1-827-295-22 CORD, POWER (AUS)
0 59 1-829-627-11 POWER-SUPPLY CORD (MX)
60 A-1082-609-A MAIN BOARD, COMPLETE (US, CND)
60 A-1083-591-A MAIN BOARD, COMPLETE
(EXCEPT US, CND, E51, MX)
60 A-1083-969-A MAIN BOARD, COMPLETE (MX)
60 A-1108-531-A MAIN BOARD, COMPLETE (E51)
60 A-1148-673-A MAIN BOARD, COMPLETE (AR)
61 1-828-963-11 WIRE (FLAT TYPE) (11 CORE)
(EXCEPT AEP, UK, RU)
61 1-828-980-11 WIRE (FLAT TYPE) (15 CORE) (AEP, UK, RU)
63 A-1082-618-A DIGITAL BOARD, COMPLETE (US, CND)
63 A-1083-438-A DIGITAL BOARD, COMPLETE (AEP, UK, RU)
63 A-1083-593-A DIGITAL BOARD, COMPLETE (SP, SP6)
63 A-1083-642-A DIGITAL BOARD, COMPLETE (AUS)
63 A-1083-670-A DIGITAL BOARD, COMPLETE (MX)
63 A-1083-982-A DIGITAL BOARD, COMPLETE (E51)
63 A-1084-191-A DIGITAL BOARD, COMPLETE (AR)
