Sony STR-V5500 - SECTION 4 EXPLODED VIEWS; MAIN SECTION

SECTION 4
EXPLODED VIEWS
Note:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Abbreviation
MY : Malaysia SP : Singapore
HK : Hong Kong IA : Indonesian
CH : Chinese
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
— 25 —
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

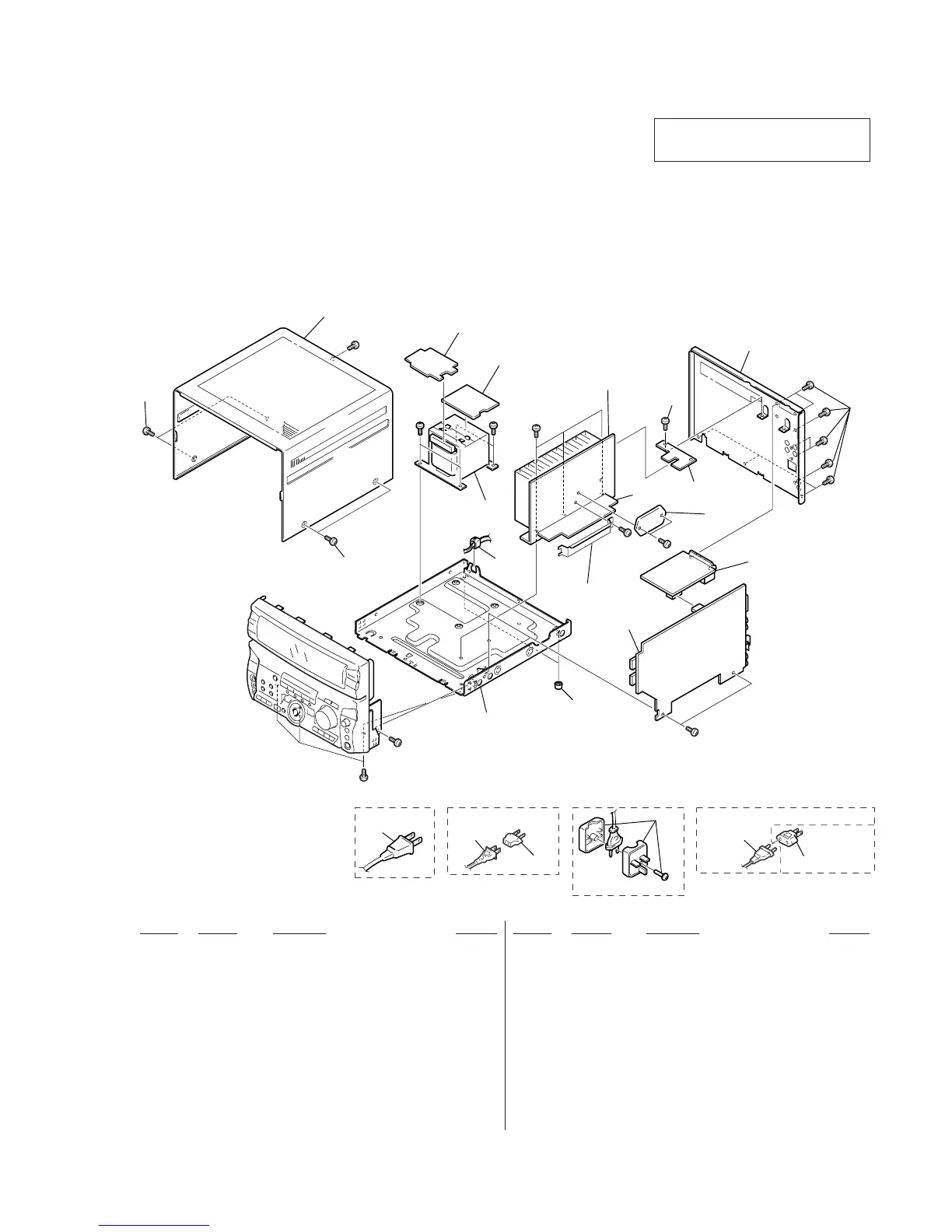

4-1. MAIN SECTION
1 3-363-099-11 SCREW (CASE 3 TP2)
* 2 4-991-364-11 CASE
* 3 1-666-059-11 SEC BOARD
* 4 1-666-065-11 PRI BOARD
* 5 1-666-066-11 AMP BOARD
6 1-233-546-21 ENCAPSULATED COMPONENT
* 7 1-666-067-11 DUMMY BOARD
* 8 4-991-361-01 PANEL (VCD), BACK (MY,SP)
* 8 4-991-361-11 PANEL (VCD), BACK (CH)
* 8 4-991-361-21 PANEL (VCD), BACK (HK)
* 8 4-991-361-31 PANEL (VCD), BACK (IA)
* 9 A-4403-202-A MAIN BOARD, COMPLETE
10 4-970-381-11 FOOT (REAR)
* 11 3-703-244-00 BUSHING (2104), CORD (IA)
11 3-703-571-11 BUSHING (S) (4516), CORD (MY,SP,HK,CH)
! 12 1-777-071-21 CORD, POWER (MY,SP,HK)
! 12 1-782-315-11 CORD, POWER (IA)
! 12 1-782-464-21 CORD, POWER (CH)
! 13 1-569-007-11 ADAPTOR, CONVERSION 2P (IA)
! 13 1-569-008-21 ADAPTOR, CONVERSION 2P (MY,SP)
! 13 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (HK)
! T901 1-431-365-11 TRANSFORMER, POWER
2
1
1
3
4
11
5
7
10
9
8
#3
#5
not supplied
not supplied
not supplied
#3
#4
#2
T901
#2
#1
#3
#3
#3
#3
6
12
IC901
13
MY, SP, HK MODEL
MY, SP
MODEL
13
HK MODEL
12
13
IA MODEL
12
CH MODEL
