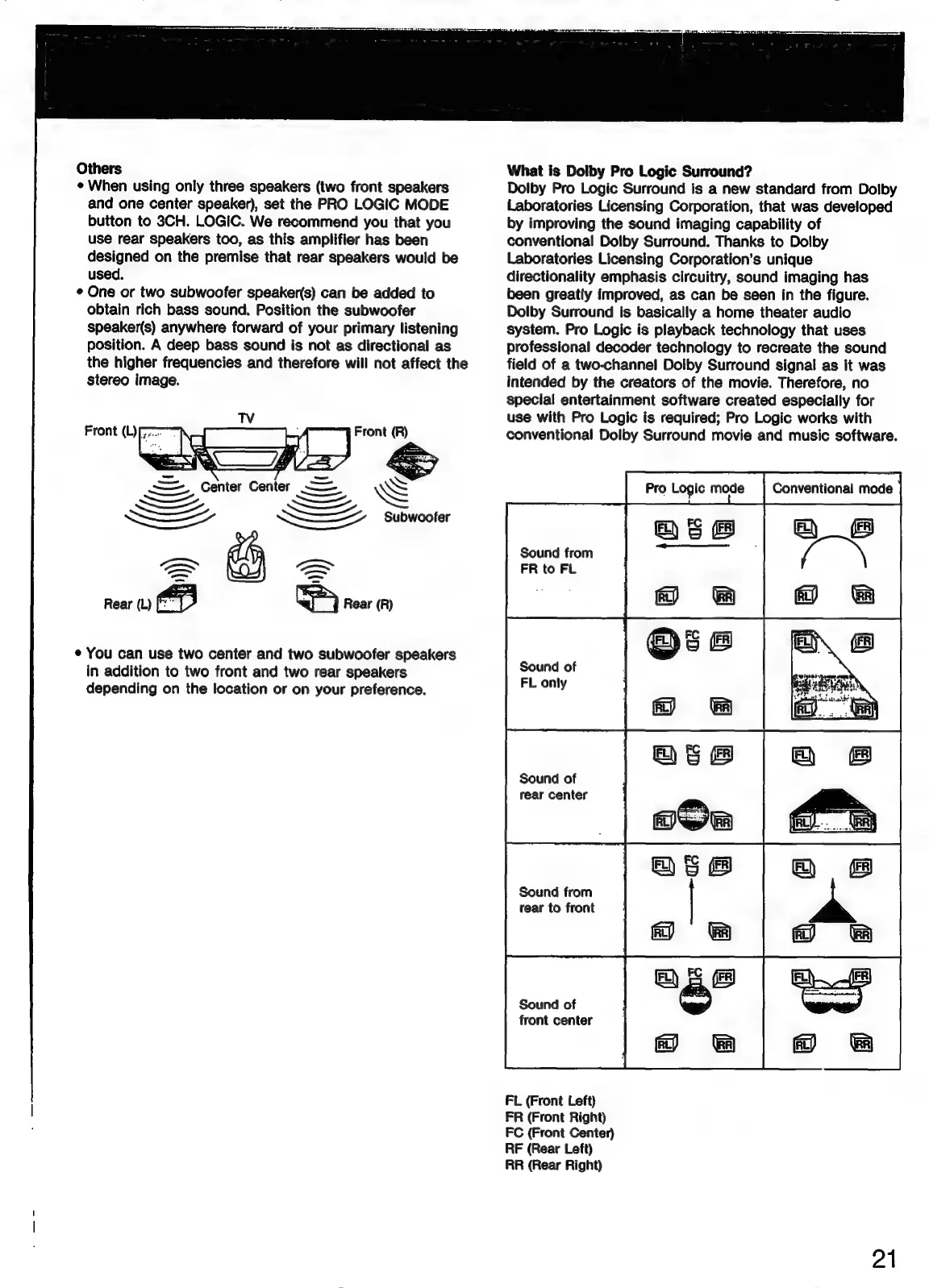

Others
¢ When using only three speakers (two front speakers
and one center speaker), set the PRO LOGIC MODE
button to 3CH. LOGIC. We recommend you that you
use rear speakers too, as this amplifier has been
designed on the premise that rear speakers would be
used.
© One or two subwoofer speaker(s) can be added to
obtain rich bass sound. Position the subwoofer
speaker(s) anywhere forward of your primary listening
position. A deep bass sound is not as directional as
the higher frequencies and therefore will not affect the
stereo image.
Front (L)
= Center Center <=
ee,
————— ee
—— SA Subwoofer
=> cs
Rear (L) Sy Rear (R)
e You can use two center and two subwoofer speakers
in addition to two front and two rear speakers
depending on the location or on your preference.
What is Dolby Pro Logic Surround?
Dolby Pro Logic Surround is a new standard from Dolby
Laboratories Licensing Corporation, that was developed
by improving the sound imaging capability of
conventional Dolby Surround. Thanks to Dolby
Laboratories Licensing Corporation’s unique
directionality emphasis circuitry, sound imaging has
been greatly improved, as can be seen in the figure.
Dolby Surround Is basically a home theater audio
system. Pro Logic is playback technology that uses
professional decoder technology to recreate the sound
field of a two-channel Dolby Surround signal as it was
intended by the creators of the movie. Therefore, no
special entertainment software created especially for
use with Pro Logic is required; Pro Logic works with
conventional Dolby Surround movie and music software.
Sound from
FR to FL
Sound of
FL only
Sound of
rear center
Sound from
rear to front
Sound of
front center
FL (Front Left)
FR (Front Right)
FC (Front Center)
RF (Rear Left)
RR (Rear Right)
21
