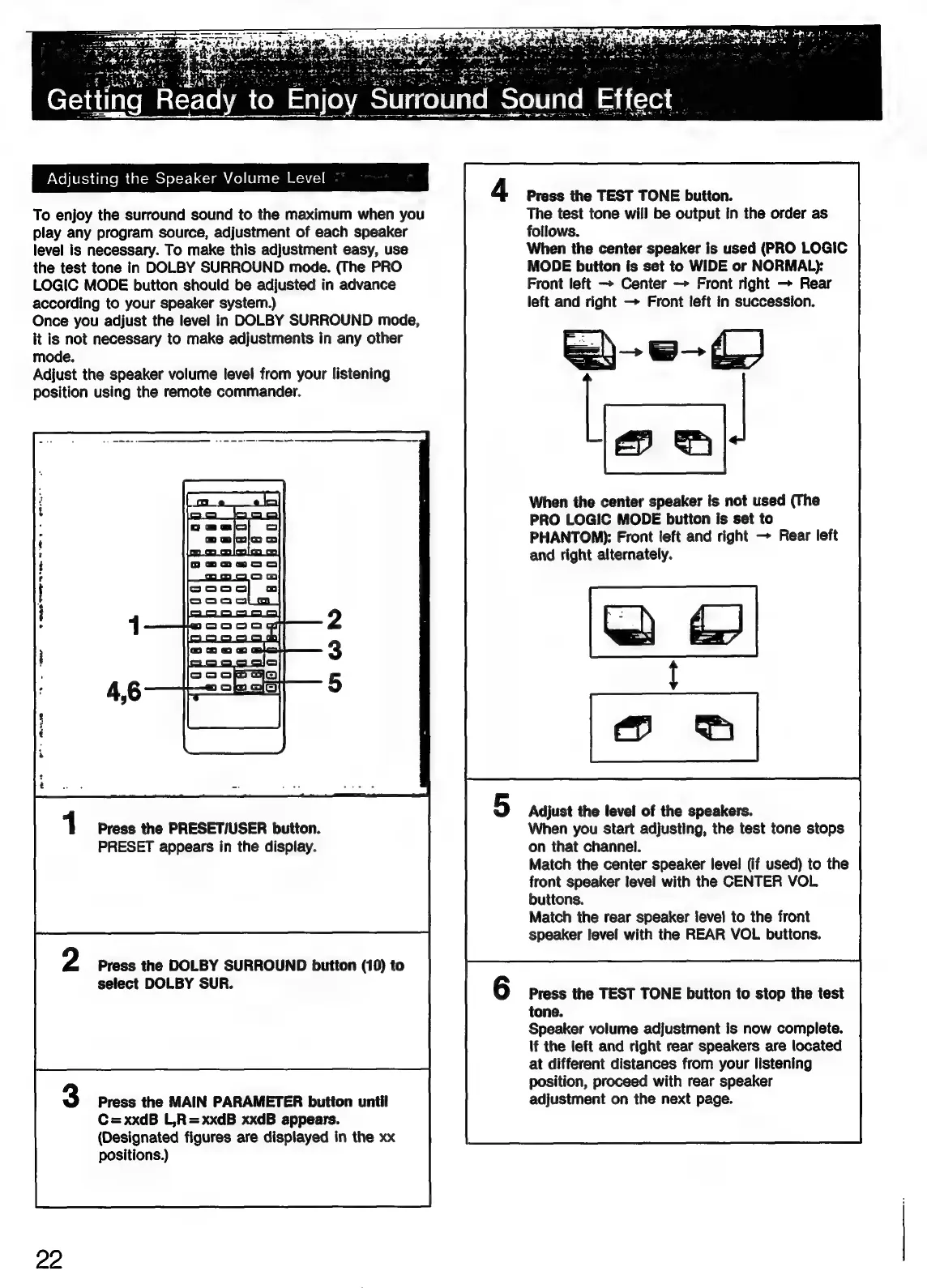

Sony TA-E2000ESD - Adjusting Speaker Volume Levels

ROPEP A EE Te
to Enjoy Surround Sound Effect.
ae a ae a re er ee,
Adjusting the Speaker Volume Level
4 Press the TEST TONE button.
To enjoy the surround sound to the maximum when you The test tone will be output In the order as
play any program source, adjustment of each speaker follows.
level is necessary. To make this adjustment easy, use When the center speaker is used (PRO LOGIC
the test tone in DOLBY SURROUND mode. (The PRO MODE button is set to WIDE or NORMAL):
LOGIC MODE button should be adjusted in advance Front left —» Center — Front right — Rear
according to your speaker system.) left and right — Front left In succession.
Once you adjust the level in DOLBY SURROUND mode,
it is not necessary to make adjustments in any other
mode. Es) ea i
Adjust the speaker volume level from your listening
position using the remote commander.
ie
When the center speaker is not used (The
PRO LOGIC MODE button is set to
PHANTOM): Front left and right — Rear left
and right alternately.
Otte
© RO Teme een. OF ae
Adjust the level of the speakers.
When you start adjusting, the test tone stops
on that channel.
Match the center speaker level (if used) to the
front speaker level with the CENTER VOL
buttons.
Match the rear speaker level to the front
speaker level with the REAR VOL buttons.
1 Press the PRESET/USER button.
PRESET appears in the display.
Press the DOLBY SURROUND button (10) to
select DOLBY SUR.
Press the TEST TONE button to stop the test
tone.
Speaker volume adjustment is now complete.
If the left and right rear speakers are located
at different distances from your listening
position, proceed with rear speaker
adjustment on the next page.
Press the MAIN PARAMETER button until
C=xxdB L,R=xxdB xxdB appears.
(Designated figures are displayed in the xx
positions.)
22
