TA-FE230/FE330R/FE530R
– 19 –
– 20 –

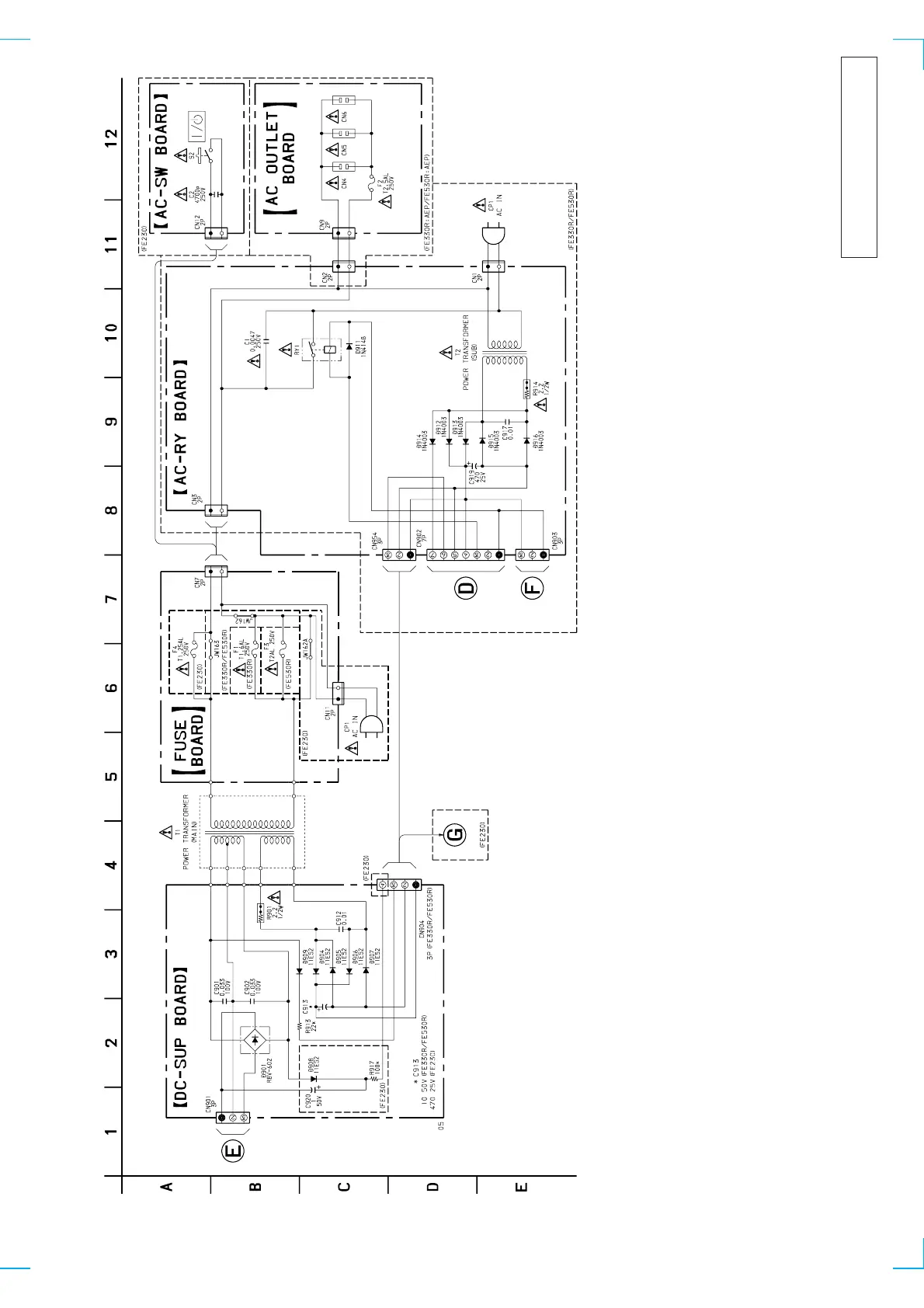

3-7. SCHEMATIC DIAGRAM – POWER Section –
The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.
(Page 12)
(Page 12)
(Page 12) (Page 15)
