– 4 –

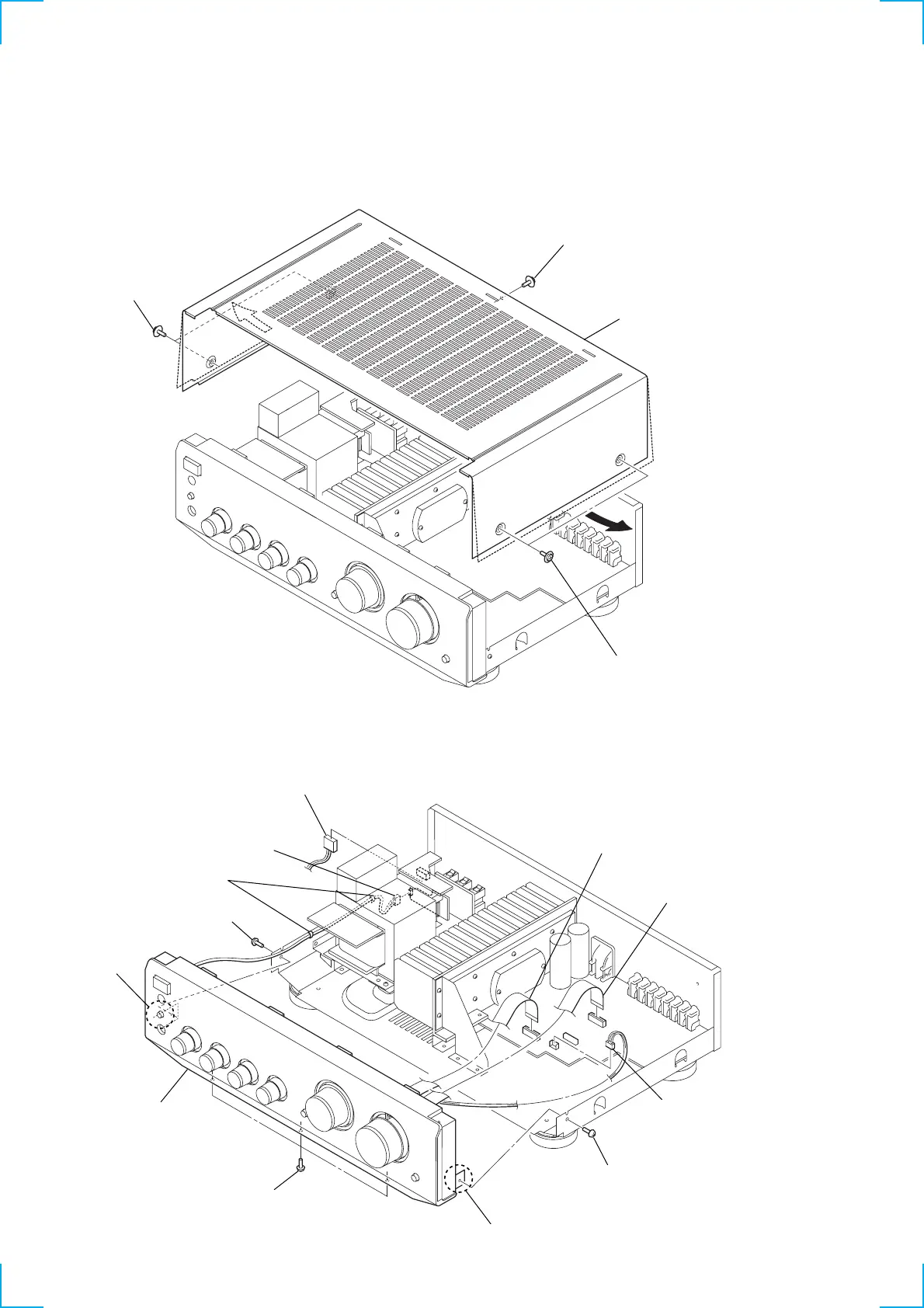

CASE
PANEL ASS’Y
Note: Follow the disassembly procedure in the numerical order given.
SECTION 2
DISASSEMBLY
1 two screws
(CASE)
1 screw (CASE)
1 two screws
(CASE)
2 case
2 connector (CN7) (FE230)
2 connector (CN903)
(FE330R/FE530R)
3 two clamps
4 screw (BVTP3 × 8)
5 claw
6 panel ass’y
4 three screws
(BVTP3
× 8)
5 claw
4 screw (BVTP3 × 8)
2 connector (CN812)
(FE530R)
1 wire (flat type) (13 core)
(CN815)
1 wire (flat type) (13 core)
(CN811)
