Sony TA-FE230 - Main Section Printed Wiring Board

http://cxema.ru
TA-FE230/FE330R/FE530R
– 13 –
– 14 –

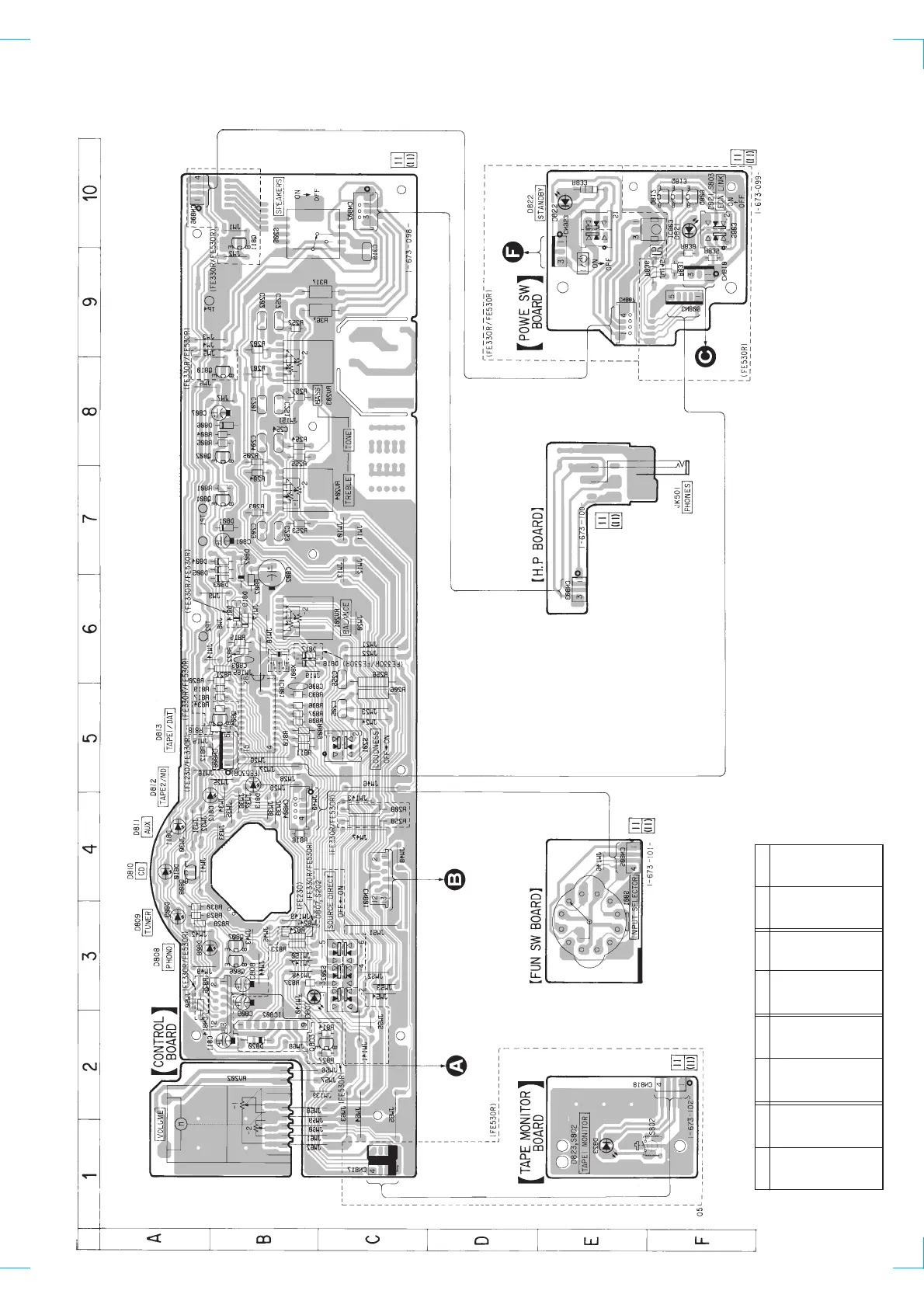

3-4. PRINTED WIRING BOARDS – PANEL Section – • See page 8 for Circuit Boards Location.
(Page 9) (Page 9)
(Page 18)
(Page 9)
D811 A-4 D812 B-4 D813 B-5 D814 B-6 D816 B-6 D817 B-6 D819 B-6 D820 B-2 D821 F-10 D822 E-10 D823 E-1
D801 B-7 D802 B-7 D803 B-6 D804 B-7 D805 B-7 D806 B-8 D807 B-3 D808 A-3 D809 A-3 D810 A-4
• Semiconductor Location
IC801 B-5 IC802 B-2 IC803 F-10 Q801 B-7 Q802 B-8 Q803 C-2 Q804 B-5 Q806 B-3 Q807 B-3 Q808 A-4
Q809 F-10 Q810 B-8 Q811 B-10 Q812 F-10 Q813 F-10
Ref. No. Location Ref. No. Location
Ref. No. Location Ref. No. Location
