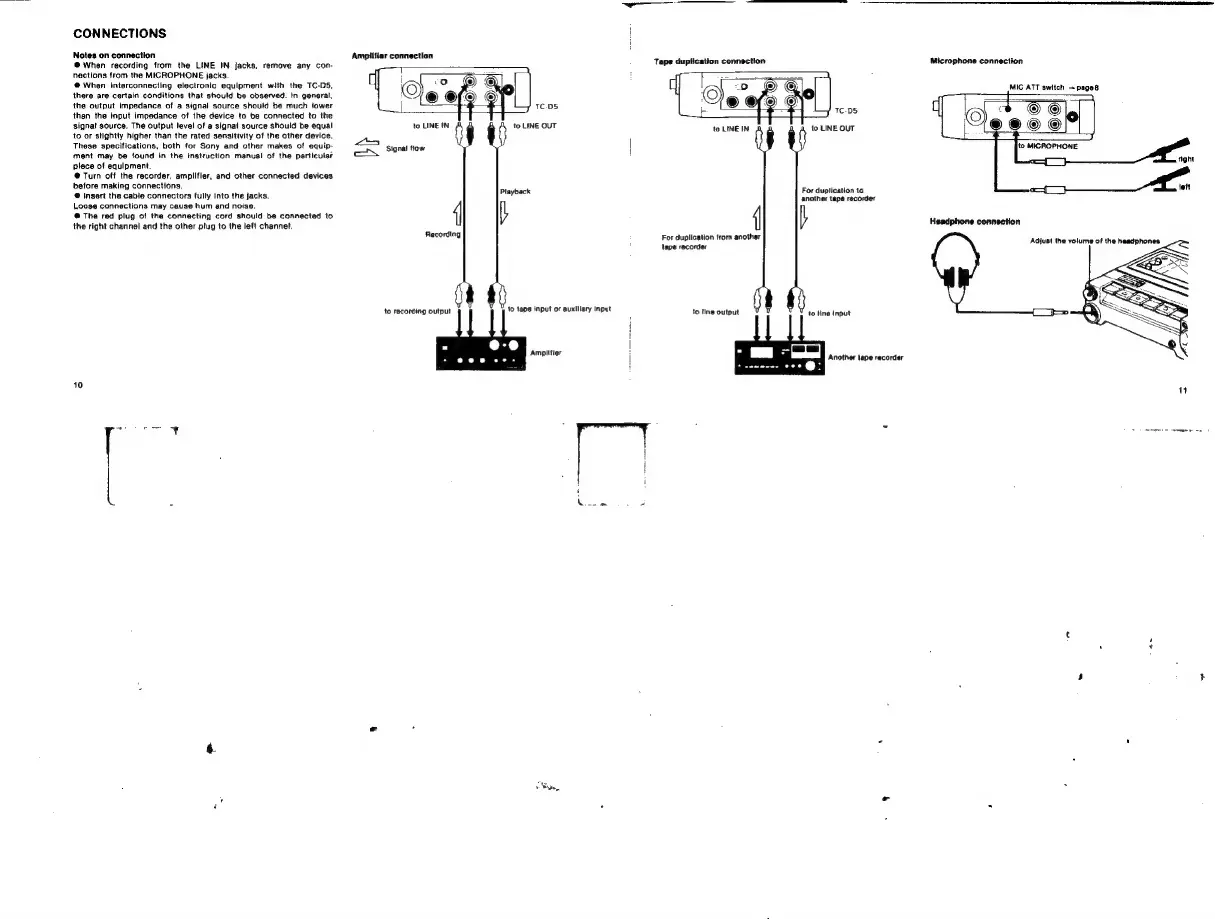

CONNECTIONS
Notes on connection
@ When recording from the LINE IN jacks, remove any con-
nections from the MICROPHONE jacks.
@ When interconnecting electronic equipment with the TC-D5,
there are certain conditions that should be observed. tn general,
the output impedance of a signal source shoutd be much jower
than the input impedance of the device to be connected to the
signal source, The output level of a signal source should be equal
to or stightly higher than the rated sensitivity of the other device.
These specifications, both for Sony and other makes of equip-
ment may be found in the instruction manual of the particular
plece of equipment.
@ Turn off the recorder, amplifier, and other connected devices
before making connections.
© insert the cable connectors fulty into the jacks.
Loose connections may cause hum and noise.
@ The red plug of the connecting cord should be connected to
the right channel and the other plug to the left channel.
Ampilfier connection
TC-05
to LINE IN to LINE OUT
Signal How
(ak
Playback
Recording
‘
to recording output to tape input of auxiliary input
Amplitier
Seu,
Tape duplication connection
TC-DS
to LINE IN
to LINE OUT
For duplication to
another tape recorder
{| |p
For duplication trom another
tape recorder
tt)
fo tine output to fine input
Another tape recorder
Microphone connection
MIC ATT switch + pages
Headphone connection
Adjuat the volume of the headphones
W

Sony TC-D5 Specifications

General

Track System	4-track, 2-channel stereo
Tape Speed	4.8 cm/s
Type	Cassette Deck
Wow and Flutter	0.08% WRMS
Frequency Response	40Hz to 15kHz
Signal to Noise Ratio	58 dB (Dolby B on)
Input	Line, Mic
Output	Line, Headphones
Power Supply	6 V DC (4 x AA batteries or AC adapter)
