| TC-D705

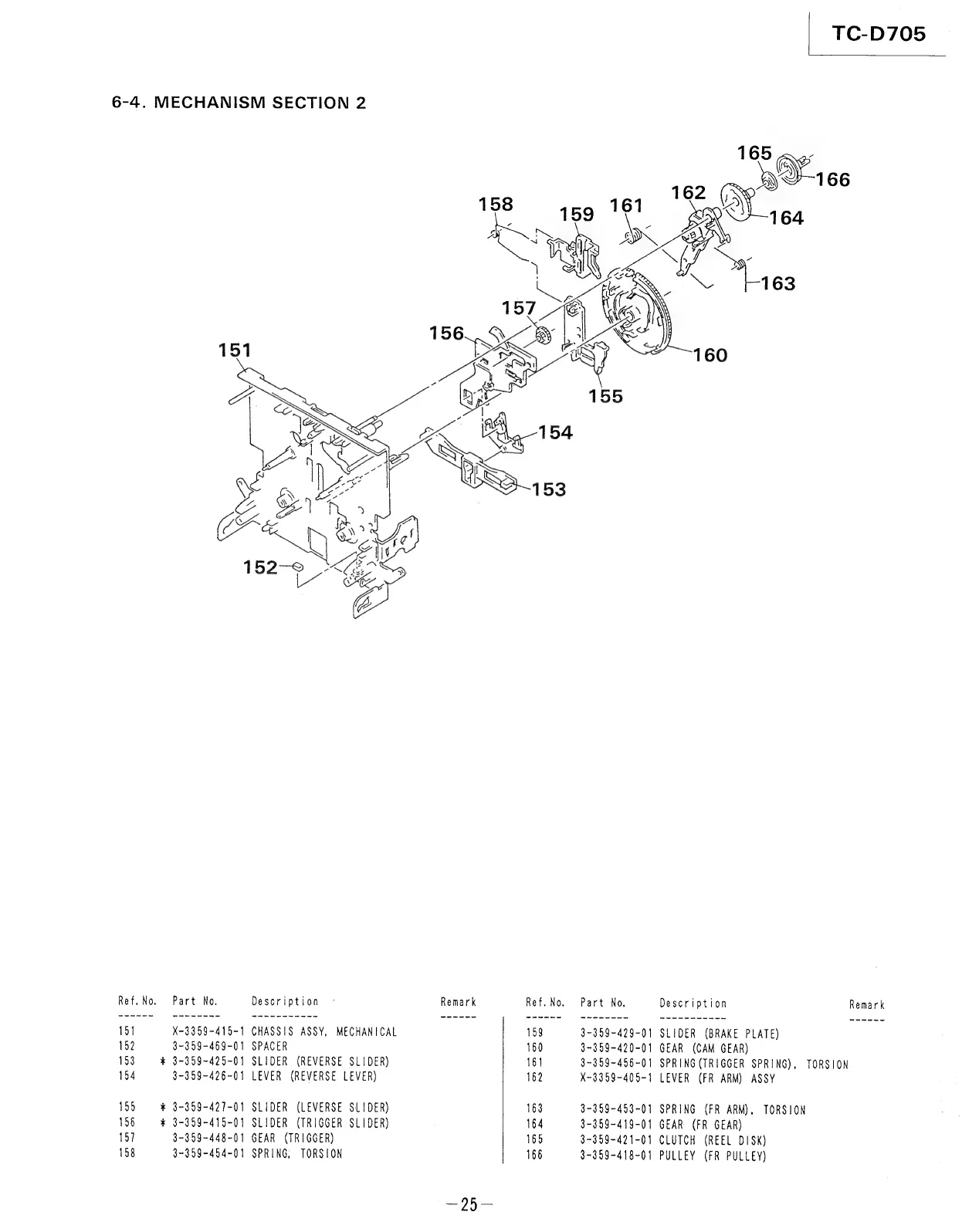

6-4. MECHANISM SECTION 2
j
165 xo.
wO-166
)
1 64
Ref.
No.
Part
No.
Description
-
Remark
Ref.No.
Part
No.
Description
Remark
154
X-3359-415~1
CHASSIS
ASSY,
MECHANICAL
159
3-359~429-01
SLIDER
(BRAKE PLATE)
152 3-359-469-01 SPACER 160 3~359-420-01 GEAR (CAM GEAR)
153
*
3~359~425-01
SLIDER
(REVERSE
SLIDER)
161
3-359-456-01
SPRING
(TRIGGER
SPRING),
TORSION
154
3-359-426-01
LEVER
(REVERSE
LEVER)
162
X~3359-405-1
LEVER
(FR
ARM)
ASSY
155 * 3-359-427-01 SLIDER (LEVERSE SLIDER) 163 3-359-453~-01 SPRING (FR ARM), TORSION
156
*
3-359-415-01
SLIDER
(TRIGGER
SLIDER)
164
3-359~419-01
GEAR
(FR
GEAR)
157
3-359-448-01
GEAR
(TRIGGER)
165
3-359-421-01
CLUTCH
(REEL
DISK)
158
3-359-454~01
SPRING,
TORSION
166
3-359-418-01
PULLEY
(FR
PULLEY)
