TC-D705
SECTION
2
DISASSEMBLY
Note:Follow
the
disassembly
procedure
in
the
numerical
order
given.

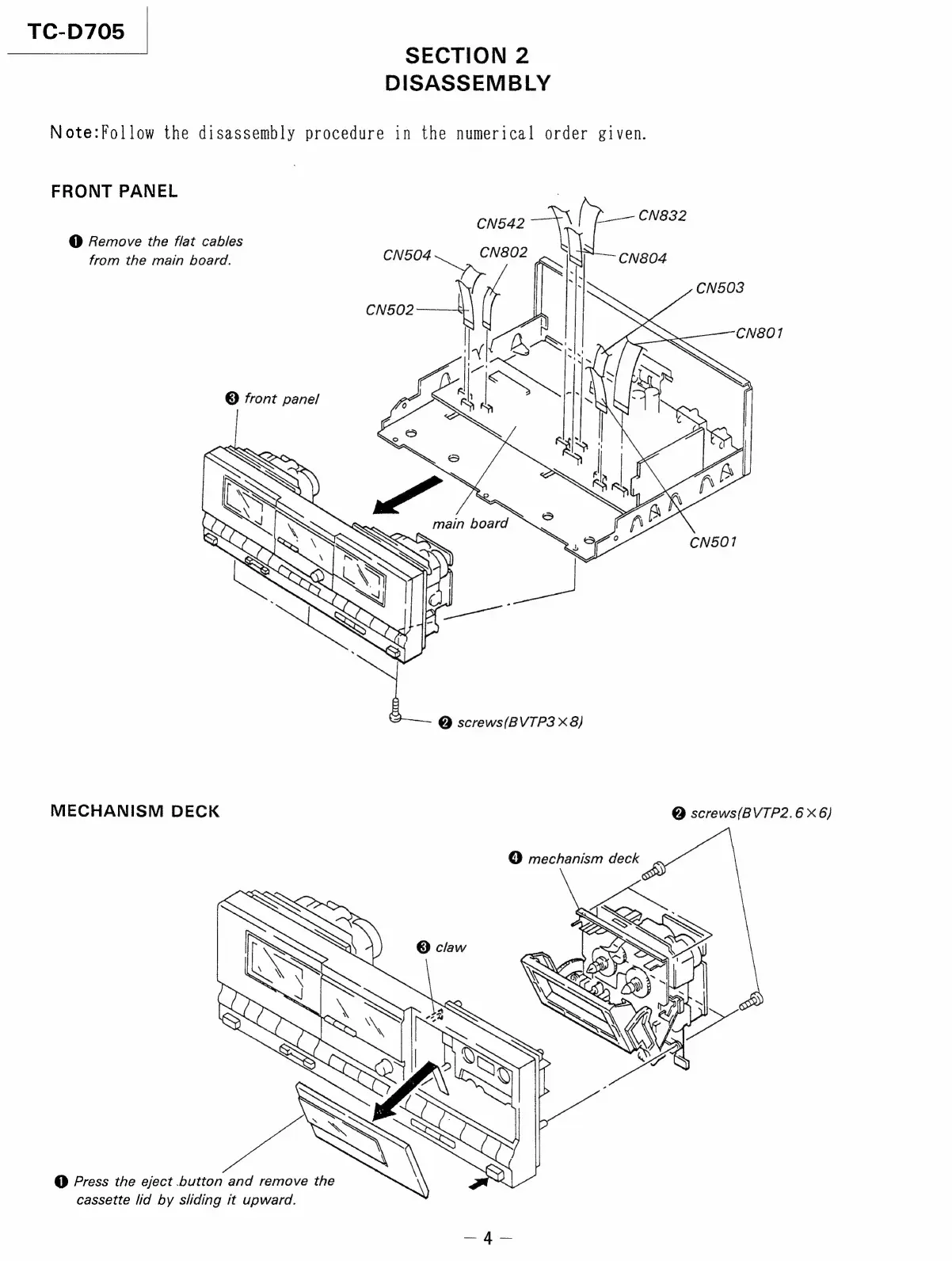

FRONT
PANEL
@
Remove
the
flat
cables
from
the
main
board.
®
front
panel
MECHANISM
DECK
@O
Press
the
eject
button
and
remove
the
cassette
lid
by
sliding
it
upward.
