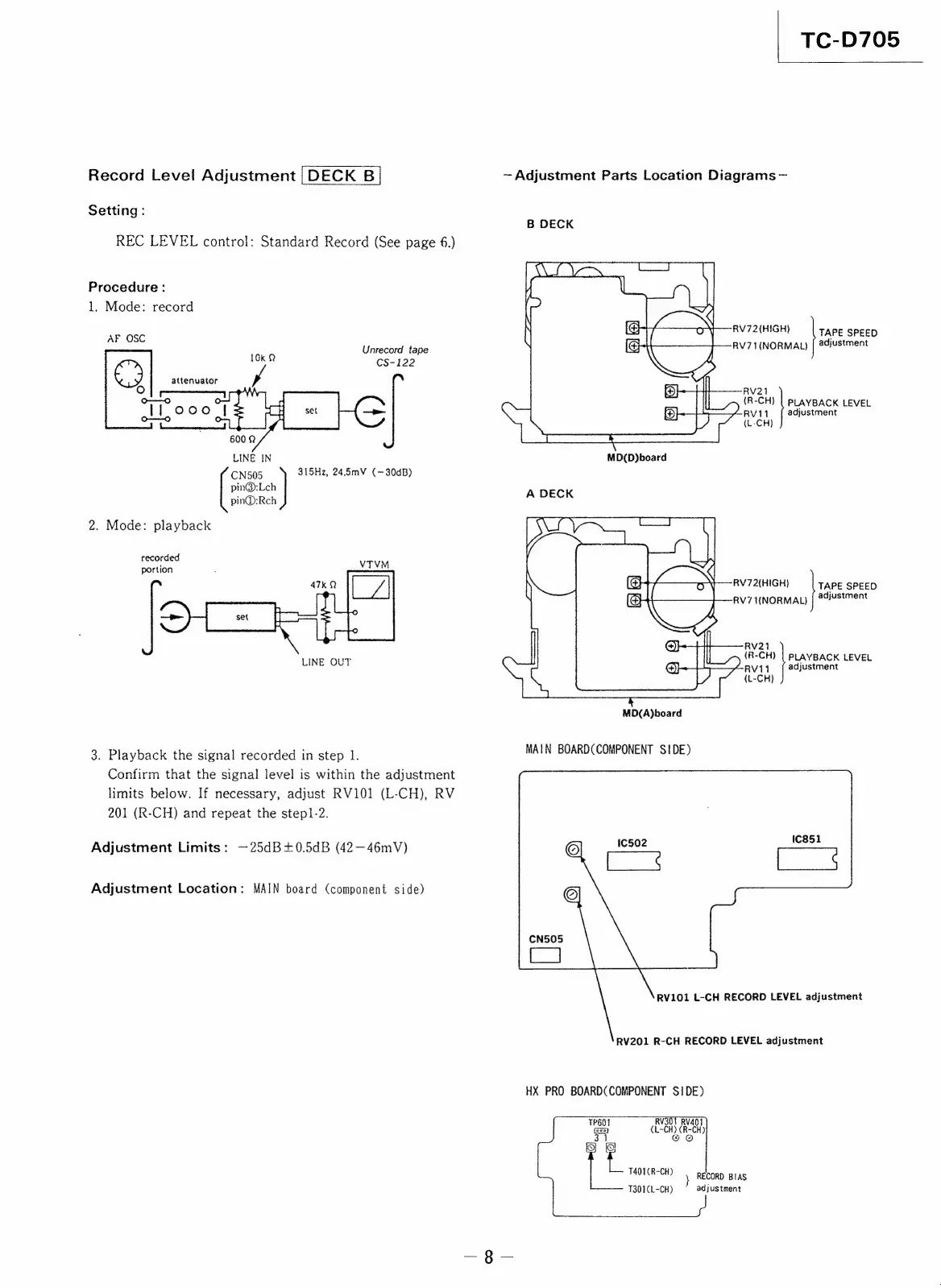

Sony TC-D705 - Page 8

Record Level Adjustment | DECK B
Setting:
REC LEVEL control: Standard Record (See page 6.)
Procedure:
1. Mode: record
AF OSC
Unrecord tape
a 10k 2 CS-122
OY ny
o—o
—_
o—o
LINE IN
CN505 315Hz, 24.5mV (-—30dB)
pin@:Lch
(ase
2. Mode: playback
recorded
portion
LINE OUT
3. Playback the signal recorded in step l.
Confirm that the signal level is within the adjustment
limits below. If necessary, adjust RV101 (L-CH), RV
201 (R-CH) and repeat the step1-2.
Adjustment Limits: —25dB+0.5dB (42—46mV)
Adjustment Location: MAIN board (component side)
TC-D705
~ Adjustment Parts Location Diagrams —
RV72(HIGH) | TAPE SPEED
RV71(NORMAL) | 2djustment
——-- RV21
(R-CH) | PLAYBACK LEVEL
adjustment
RV72(HIGH)
are
epsecety
RV71(NORMAL)
adjustment
RV21
(R-CH) PLAYBACK LEVEL
RV11 adjustment
(L-CH)
MD(A)board
MAIN BOARD(COMPONENT SIDE)
RV101 L-CH RECORD LEVEL adjustment
RV201 R-CH RECORD LEVEL adjustment
HX PRO BOARD(COMPONENT SIDE)
© ©
f
T401(R-CH)
} RECORD BIAS
T301(L-CH) adjustment
