Sony TC-RX50 - Section 1 General; Section 2 Mechanical Adjustments

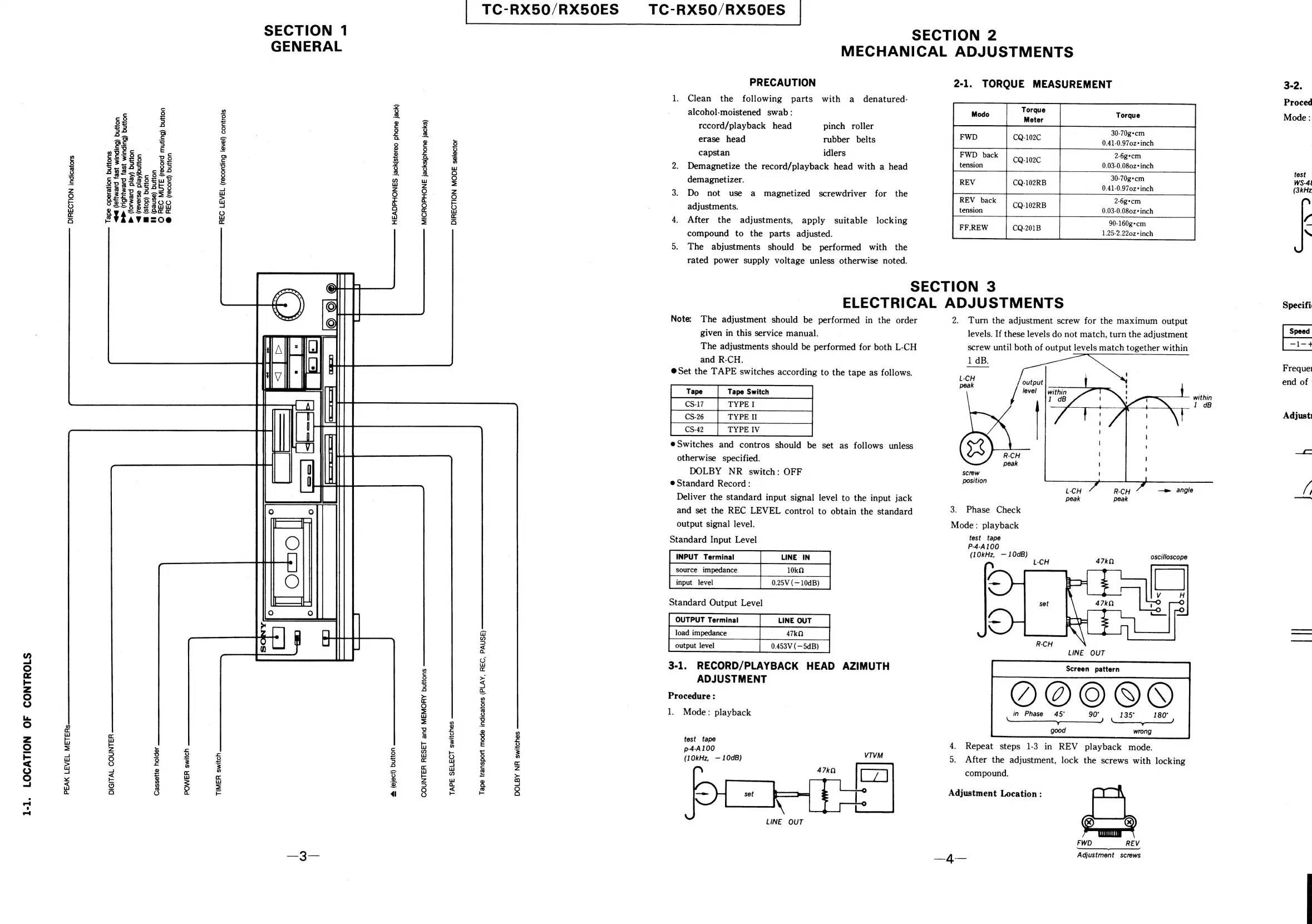

LOCATION OF CONTROLS
1-1.
DIRECTION indicators
PEAK LEVEL METERs
Tape operation buttons —
ng) button
<4 (leftward fast winding) button
BP (rightward fast windi
® (forward play) button
@ (reverse play)button
@ (stop) button
DIGITAL COUNTER
§8 (pause) button
g) button
O REC MUTE (record mutin
@ REC (record) button
Cassette holder
POWER switch
REC LEVEL (recording level) controls
TIMER switch
SECTION 1
GENERAL
HEADPHONES jack(stereo phone jack)
@ (eject) button
COUNTER RESET and MEMORY buttons
MICROPHONE jacks(phone jacks)
DIRECTION MODE selector
TAPE SELECT switches
| TC-RX50/RX50ES TC-RX50/RX50ES |
Tape transport mode indicators (PLAY, REC, PAUSE)
DOLBY NR switches
SECTION 2
MECHANICAL ADJUSTMENTS
PRECAUTION
1. Clean the following parts with a denatured-
alcohol-moistened swab:
rccord/playback head pinch roller
erase head rubber belts
capstan idlers
2. Demagnetize the record/playback head with a head
demagnetizer.
3. Do not use a magnetized screwdriver for the
adjustments.
4. After the adjustments, apply suitable locking
compound to the parts adjusted.
D. The abjustments should be performed with the
rated power supply voltage unless otherwise noted.
2-1. TORQUE MEASUREMENT
| Modo Meter
30-70g°cm
srw sao 0.41-0.970z*inch
FW
RE
D
FWD back 2-6g°cm
Polies 0.03-0.080z*inch
30-70g*cm
Ee ZRe 0.41-0.970z*inch
REV back 2-6g°cm
one 0.03-0.080z*inch
90-160g*°cm
EE REW C2018 1.25-2.220z*inch
SECTION 3
ELECTRICAL ADJUSTMENTS
Note: The adjustment should be performed in the order
given in this service manual.
The adjustments should be performed for both L-CH
and R-CH.
@Set the TAPE switches according to the tape as follows.
eSwitches and contros should be set as follows unless
otherwise specified.
DOLBY NR switch: OFF
e Standard Record:
Deliver the standard input signal level to the input jack
and set the REC LEVEL control to obtain the standard
output signal level.
Standard Input Level
INPUT Terminal LINE IN
O25 (~ 1008)
Standard Output Level
OUTPUT Terminal LINE OUT
0asa (~ 588)
3-1. RECORD/PLAYBACK HEAD AZIMUTH
ADJUSTMENT
Procedure :
1. Mode: playback
test tape
p-4-A100
(10kHz, —10dB)
LINE OUT
2. Turn the adjustment screw for the maximum output
levels. If these levels do not match, turn the adjustment
screw until both of output levels match together within
1 dB.
se output
level | within
1 dB
R-CH
peak
screw
position
L-CH R-CH —e angle
peak peak
3. Phase Check
Mode: playback
test tape
P-4-A100
(10kHz, — 10dB)
L-CH
LINE OUT
DOOSS
in Phase 45° 135° 180°
good wrong
4. Repeat steps 1-3 in REV playback mode.
o. After the adjustment, lock the screws with locking
compound.
Adjustment Location :
FWD REV
ee
ee 4-— Adjustment screws
3-2.
Proced
Mode:
test —
WS-48&
(3kHz,
Specifi
Speed
-1-+
Frequet
end of |
Adjust!
