Sony TCM-121 - Specifications

Power Requirements:
Pe 4 ey a owt 4 a “ e] * 4
by : > i * i |

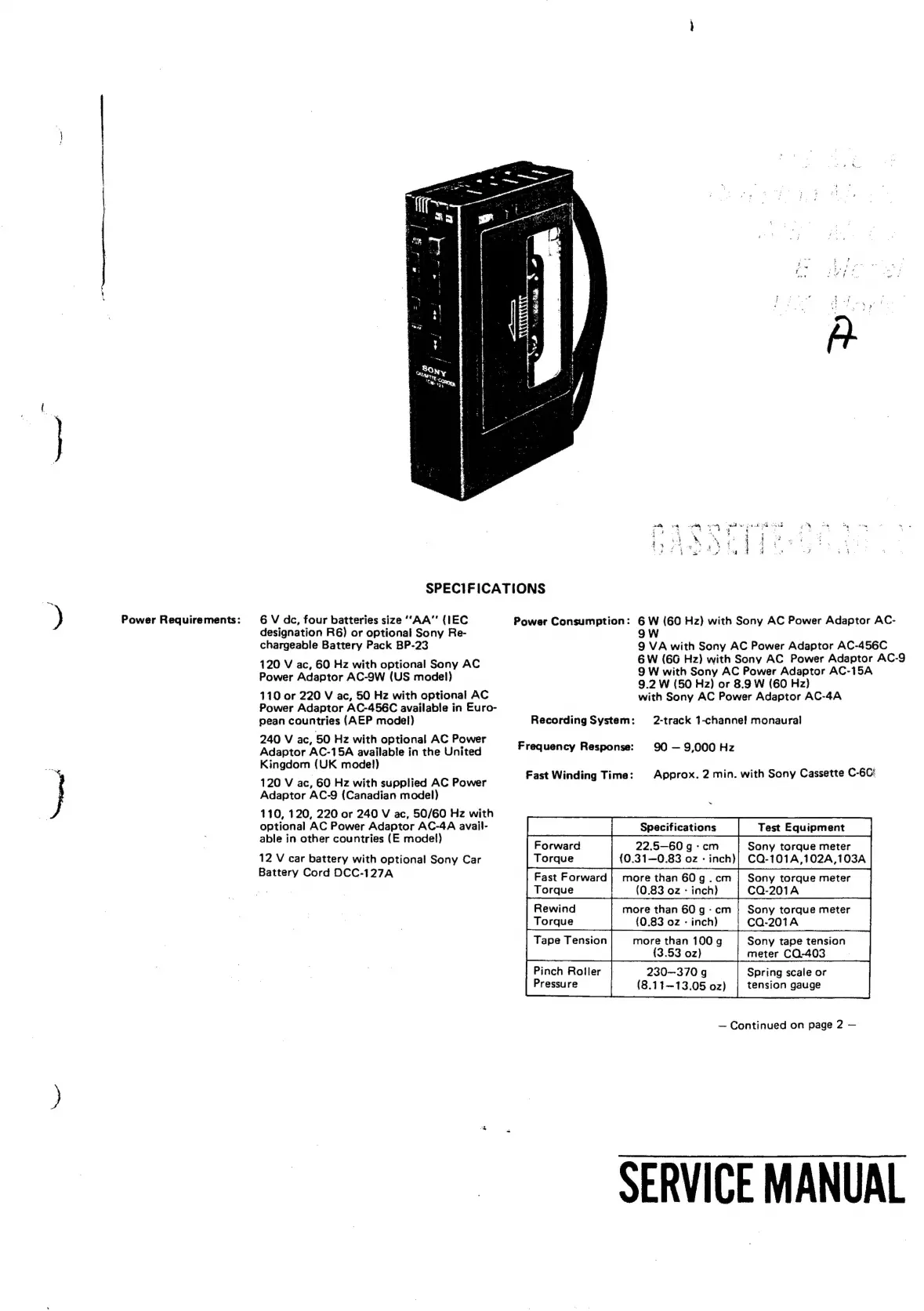

SPECIFICATIONS
6 V dc, four batteries size “AA” (IEC Power Consumption: 6 W (60 Hz) with Sony AC Power Adaptor AC-
designation R6&) or optional Sony Re- QW
chargeable Battery Pack BP-23 9 VA with Sony AC Power Adaptor AC-456C
: . A 6 W (60 Hz) with Sony AC Power Adaptor AC-9
atte itd ACO US ioay. 9 W with Sony AC Power Adaptor AC-15A
9.2 W (50 Hz) or 8.9 W (60 Hz)
110 or 220 V ac, 50 Hz with optional AC with Sony AC Power Adaptor AC-4A
Power Adaptor AC-456C available in Euro-
pean countries (AEP model) Recording System: 2-track 1-channe! monaural
240 V ac, 50 Hz with optional AC Power
Adaptor AC-15A available in the United
Kingdom (UK mode!)
120 V ac, 60 Hz with supplied AC Power
Adaptor AC-9 (Canadian model)
110, 120, 220 or 240 V ac, 50/60 Hz with
optional AC Power Adaptor AC-4A avail-
able in other countries (E model)
Frequency Response: 90 — 9,000 Hz
Fast Winding Time: Approx. 2 min. with Sony Cassette C-6C!
Forward 22.5—60 g -cm Sony torque meter
Torque {0.31—0.83 oz - inch)| CQ-101A,102A,103A
Fast Forward| more than 60g.cm | Sony torque meter
Torque (0.83 oz + inch) CQ-201A
Rewind more than 60 g-cm } Sony torque meter
Torque {0.83 02 - inch) CQ-201A
Tape Tension more than 100 g Sony tape tension
(3.53 oz) meter CQ-403
Pinch Roller | 230—370 g Spring scale or
Pressure (8.11-13.05 oz) | tension gauge
— Continued on page 2 —
12 V car battery with optional Sony Car
Battery Cord DCC-127A
SERVICE MANUAL
