7-1
S MIC Chassis

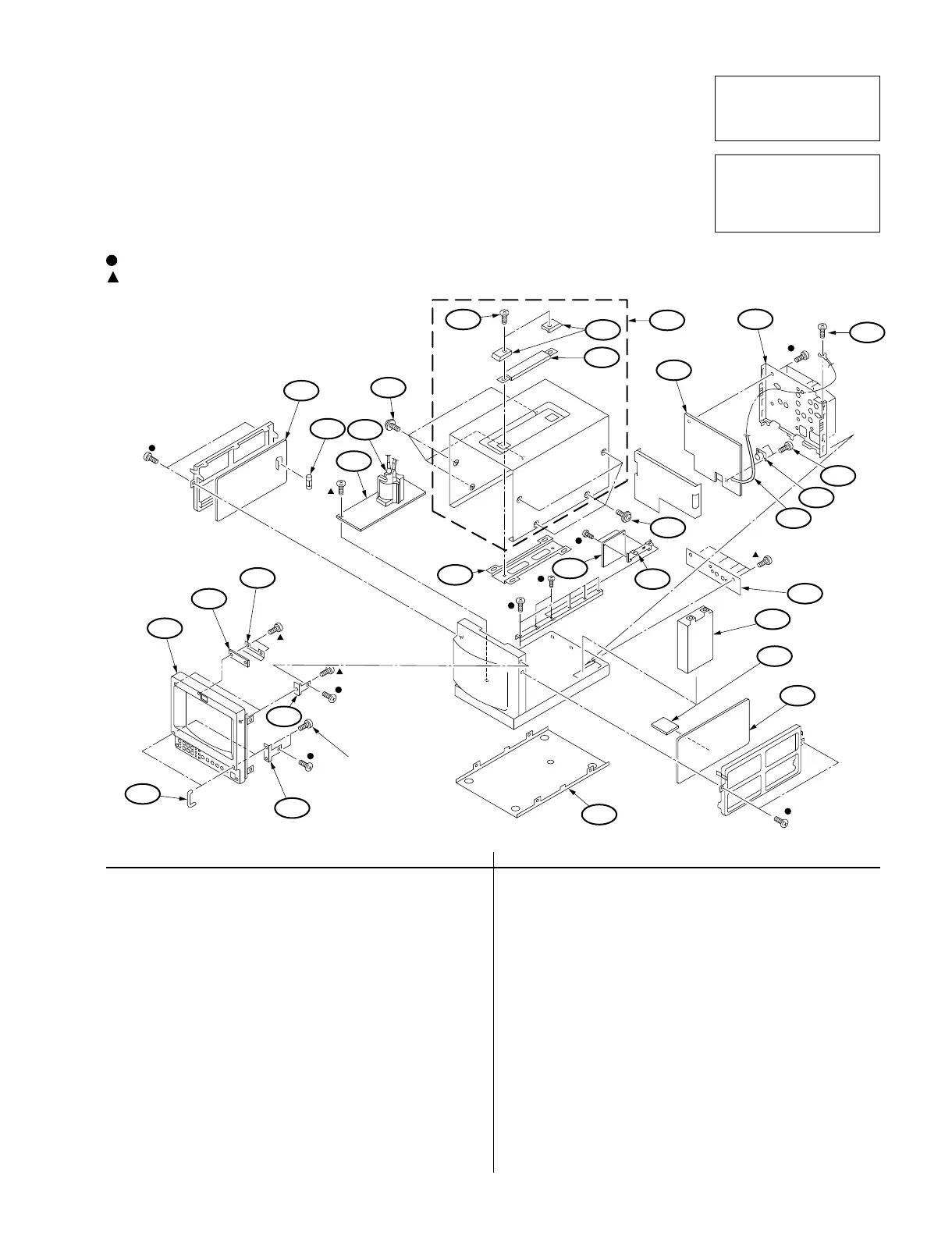

7-1. CHASSIS
: 7-685-646-79 +BVTP3 x 8
: 7-685-468-79 +BVTP3 x 12
SECTION 7
EXPLODED VIEWS
NOTE:
. Items with no part number and no
description are not stocked because they
are seldom required for routine service.
. The construction parts of an assembled
part are indicated with a collation number
in the remark column.
. Items marked “*” are not stocked since
they are seldom required for routine
service. Some delay should be
anticipated when ordering these items.
Les composants identifies par
une marque
! sont critiques
pour la securite. Ne les
remplacer que par une piece
portant le numero specifie.
The components identified by
mark
! are critical for safety.
Replace only with part number
specified.
1 X-4036-093-1 BEZEL ASSY
2 4-037-569-01 HANDLE, PROTECTOR
3 * 4-034-845-01 BRACKET (L), BEZEL
4 * 4-034-846-01 BRACKET (U), BEZEL
5 * 4-035-388-01 PLATE, LIGHT INTERCEPTION
6 * A-1390-455-A X BOARD, COMPLETE
7 * 4-034-870-02 CABINET, BOTTOM
8 * A-1135-964-A B BOARD, COMPLETE (BVM-8045QD)
8 * A-1135-977-A B BOARD, COMPLETE (BVM-9045D)
9 * A-1394-917-A S BOARD, COMPLETE
10 ! 1-413-720-21 SWITCHING REGULATOR (SOPS-1021)
11 * A-1346-805-A D BOARD, COMPLETE
12 ! 1-532-747-11 FUSE, GLASS TUBE (5.0A/125V)
(BVM-8045QD)
12 ! 1-576-232-11 FUSE (H.B.C) (5.0A/250V) (BVM-8045QD)
13 * A-1195-146-A P BOARD, COMPLETE 14
14 ! 1-439-526-13 TRANSFORMER ASSY, FLYBACK
Ref.No. Part No. Description Remark Ref.No. Part No. Description Remark
15 4-034-847-01 HANDLE (BASE)
16 3-419-372-31 HANDLE
17 * X-4032-336-1 CABINET ASSY 15, 16, 19
18 * X-4030-273-1 REINFORCEMENT ASSY, HANDLE
19 4-035-452-01 SCREW (M4X10)
20 * A-1190-333-A PA BOARD COMPLETE
21 * A-1275-167-A QA BOARD, COMPLETE
22 * 4-034-864-91 CHASSIS, R
23 4-035-802-01 SCREW (M2.6X6)
24 * 4-046-075-01 PANEL, CONNECTOR
25 4-034-834-01 SCREW (CLAW) (4X6), CASE
26 * 4-067-394-01 HOLDER, PA PWB
27 * 1-900-157-02 CONNECTOR ASSY, MICRO 5P
28 1-555-724-00 WIRE, GROUND (BVM-8045QD)
29 4-389-025-01 SCREW (M4) (EXT TOOTH WASHER)
(BVM-9045D)
29 7-685-881-09 SCREW BVTT 4X8 (BVM-9045QD)
P4 x 25
7-682-567-09
4
3
2
1
5
12
14
19
15
16
21
22
10
24
8
9
7
25
28
27
23
26
20
18
13
11
25
6
17
29
To Next Page
