Sony TRINITRON BVM-9045D - D Board Removal; P Board Removal

2-4
S MIC Chassis

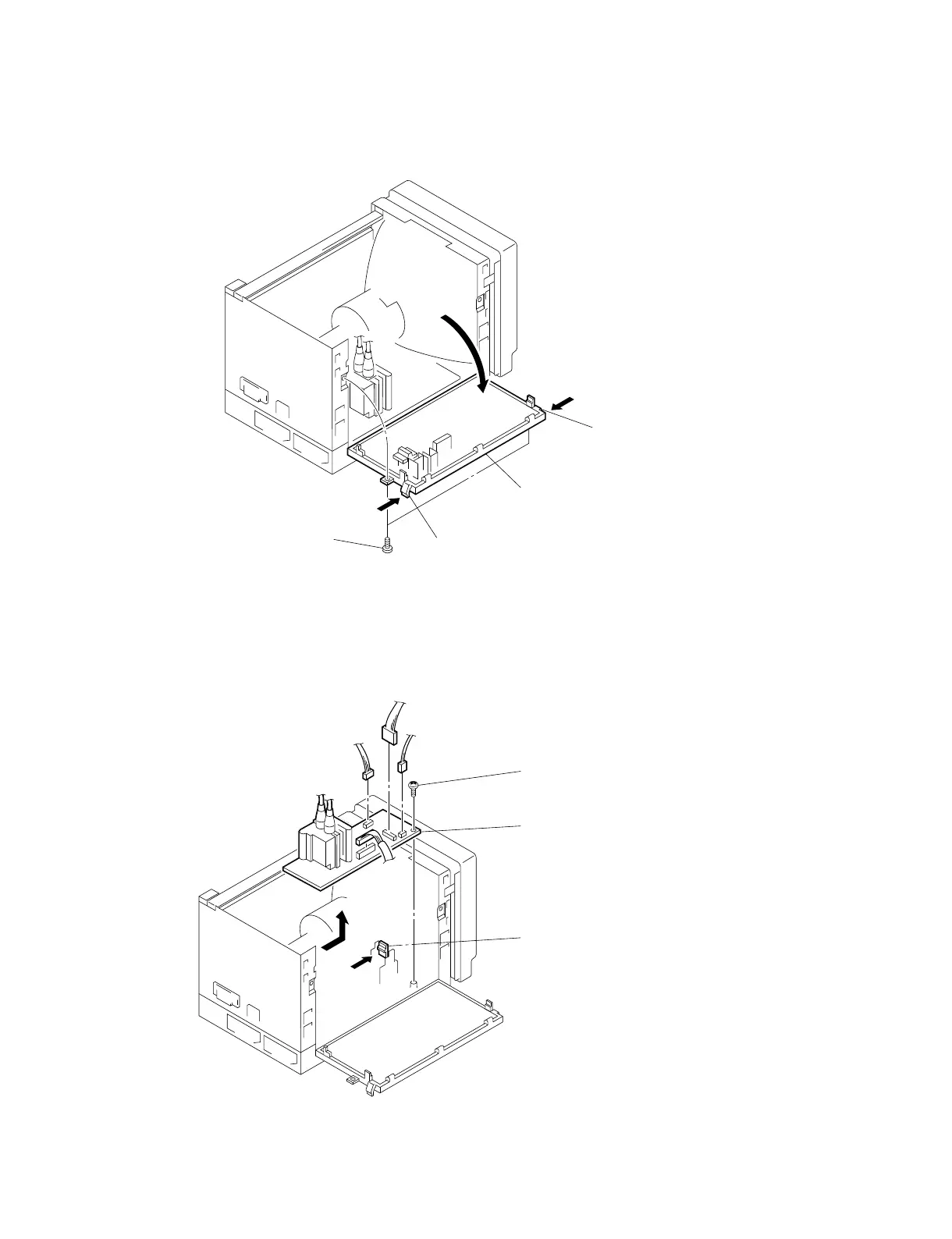

2-2-6. P Board Removal
4 Open the D board.
2 Unhook the claw.
3 Unhook the claw.
Remove the two
screws (BVTP3 x 8).
1
CN805
3 Remove the P board.
1 Remove the screw (BVTP3 x 12).
2 Unhook the claw.
CN802
CN801
CN803
2-2-5. D Board Removal
