Sony TRINITRON BVM-9045D User Manual

7-2
S MIC Chassis
PICTURE TUBE

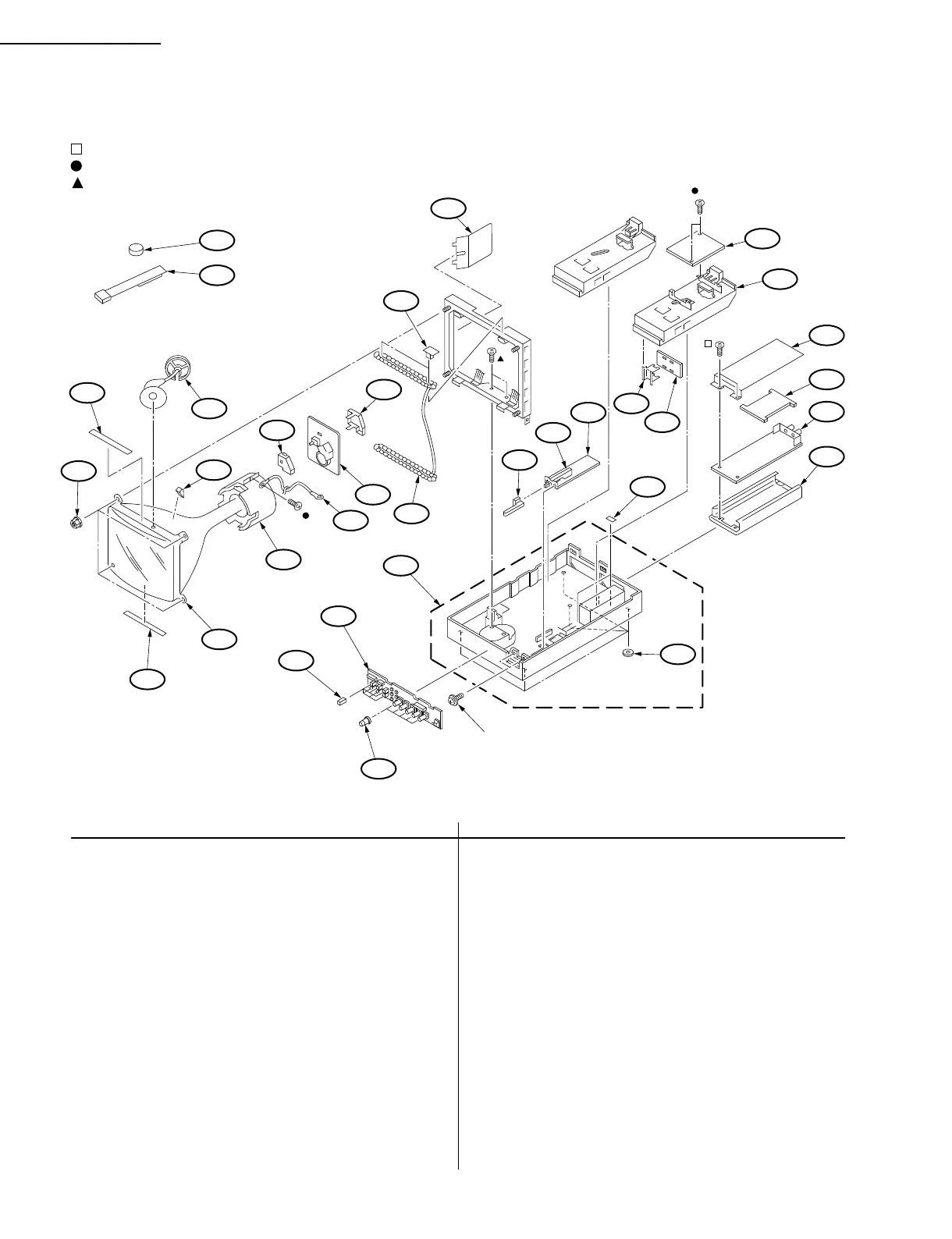

7-2. PICTURE TUBE
: 7-685-645-79 +BVTP3 x 6
: 7-685-646-79 +BVTP3 x 8
: 7-685-648-79 +BVTP3 x 12
51 4-304-511-00 NUT (M5), FLANGE
52 ! 8-737-651-05 PICTURE TUBE (M20JMP10X)
53 4-035-332-01 CLOTH, PROTECTION
54 * 4-034-856-01 HOLDER, HV CABLE
55 4-309-369-00 SPACER, DEFLECTION YOKE
56 ! 1-451-319-22 DEFLECTION YOKE (Y9FXC)
57 * A-1331-377-A CA BOARD, COMPLETE 58, 59
58 * 4-376-133-11 COVER (MAIN), CV VOL
59 * 4-376-132-11 COVER (REAR LID), CV VOL
60 ! 1-416-882-11 COIL, DEMAGNETIC
61 4-380-534-01 CAP, DGC
62 * 4-034-850-01 INSULATOR
63 * A-1372-584-A HA BOARD, COMPLETE
64 4-034-849-01 SWITCH (SMALL), PUSH
65 4-043-802-02 KNOB, CONTROL
66 * A-1241-164-A FA BOARD, COMPLETE (BVM-9045D)
66 * A-1241-176-A FA BOARD, COMPLETE
(BVM-8045QD) 67
67 ! 1-692-050-11 SWITCH, PUSH (AC POWER) (1 KEY)
(5.0A/250V) (BVM-4095D)
67 ! 1-692-049-11 SWITCH, PUSH (AC POWER) (3.0A/250V)
(BVM-9045QD)
68 4-034-841-11 BUTTON, POWER SWITCH
69 * X-4036-112-3 CHASSIS ASSY, BOTTOM 70
70 4-034-840-01 RUBBER, FOOT
71 * A-1316-193-A GB BOARD, COMPLETE
72 * X-4032-154-1 GUIDE (GB) ASSY, BATTERY
73 * 4-046-072-01 SUPPORTER, PC BOARD (T)
74 * A-1390-454-A T BOARD, COMPLETE
75 * 4-046-073-01 CASE (UPPER)
76 * X-4032-153-1 HEAT SINK (BV) ASSY
77 * A-1135-798-A BV BOARD, COMPLETE
78 * 4-046-076-01 CASE (MAIN)
79 * 1-923-511-84 WIRE UL1007 AWG18 110MM BLK
80 * 1-452-884-11 MAGNET
81 * 3-703-044-26 LABEL, CAUTION (BVM-8045QD)
82 4-051-735-22 PIECE A (75), CONV.CORRECT
Ref.No. Part No. Description Remark Ref.No. Part No. Description Remark
80
53
54
55
58
59
61
62
70
79
60
69
68
67
66
63
64
65
51
53
52
56
PSW3 x 10
7-682-949-09
82
73
74
81
71
72
57
75
76
77
78


Sony TRINITRON BVM-9045D Specifications

General

Screen Size	9 inches
Display Type	CRT
CRT Type	Trinitron
Aspect Ratio	4:3
Resolution	800 TV lines
Input Connectors	BNC
Inputs	Composite
Weight	8.5 kg (18 lb 12 oz)
