Sony TRINITRON KV-1442 - GENERAL; 1-1. LOCATION OF CONTROLS

KV-1442ECPS
RM-651
SECTION 1
GENERAL

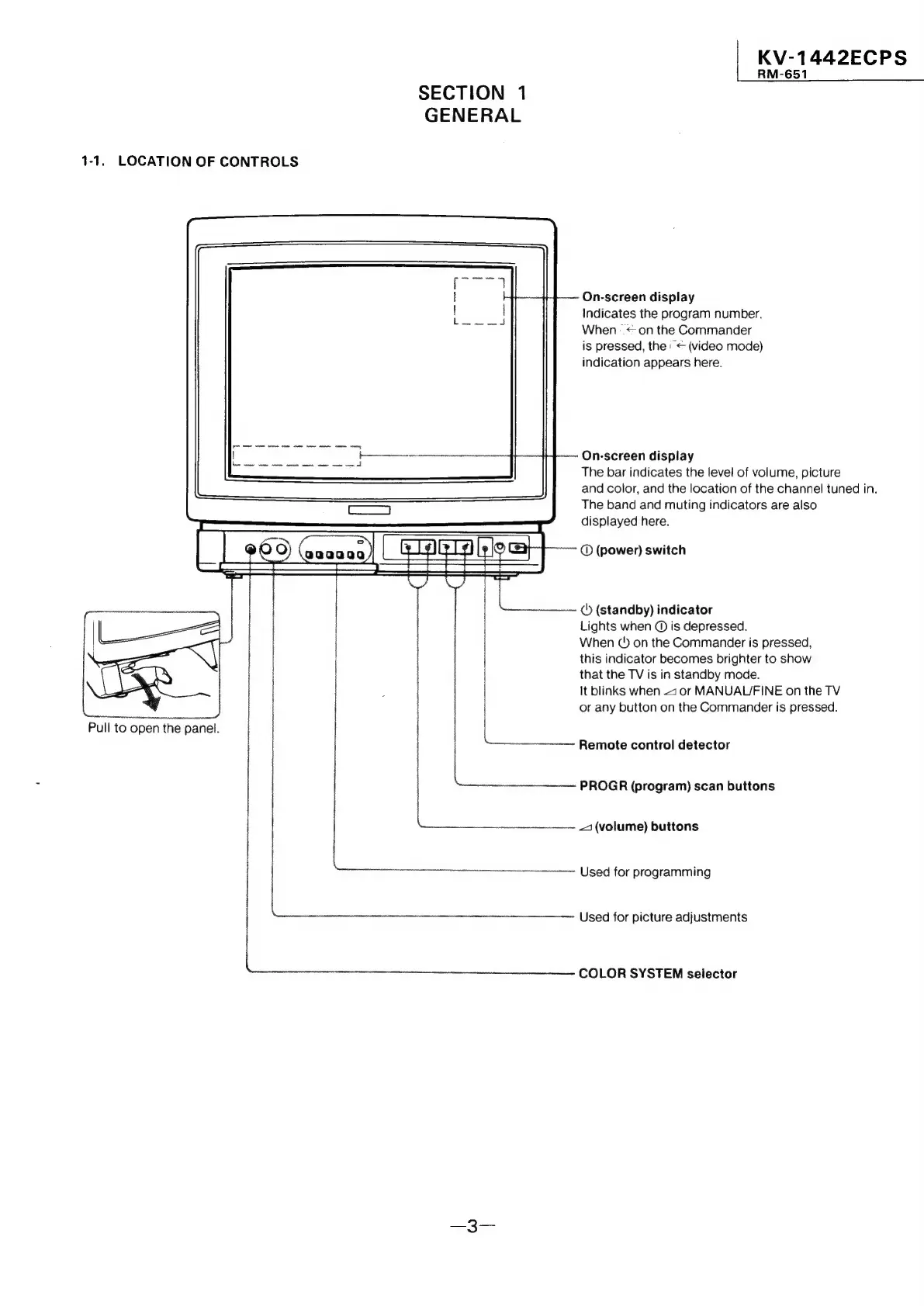

1-1. LOCATION OF CONTROLS
On-screen display
Indicates the program number.
When. <on the Commander
is pressed, the: < (video mode)
indication appears here.
On-screen display
The bar indicates the level of volume, picture
and color, and the location of the channel tuned in.
The band and muting indicators are also
displayed here.
© (power) switch
© (standby) indicator
Lights when © is depressed.
When (!) on the Commander is pressed,
this indicator becomes brighter to show
that the TV is in standby mode.
It blinks when -4 or MANUALFFINE on the TV
or any button on the Commander is pressed.
Pull to open the panel.
“——_--_---—- Remote control detector
neater PROGR (program) scan buttons
Soa PN EUR verter (volume) buttons
_ " Used for programming
eee Used for picture adjustments
be Bde deudues COLOR SYSTEM selector
