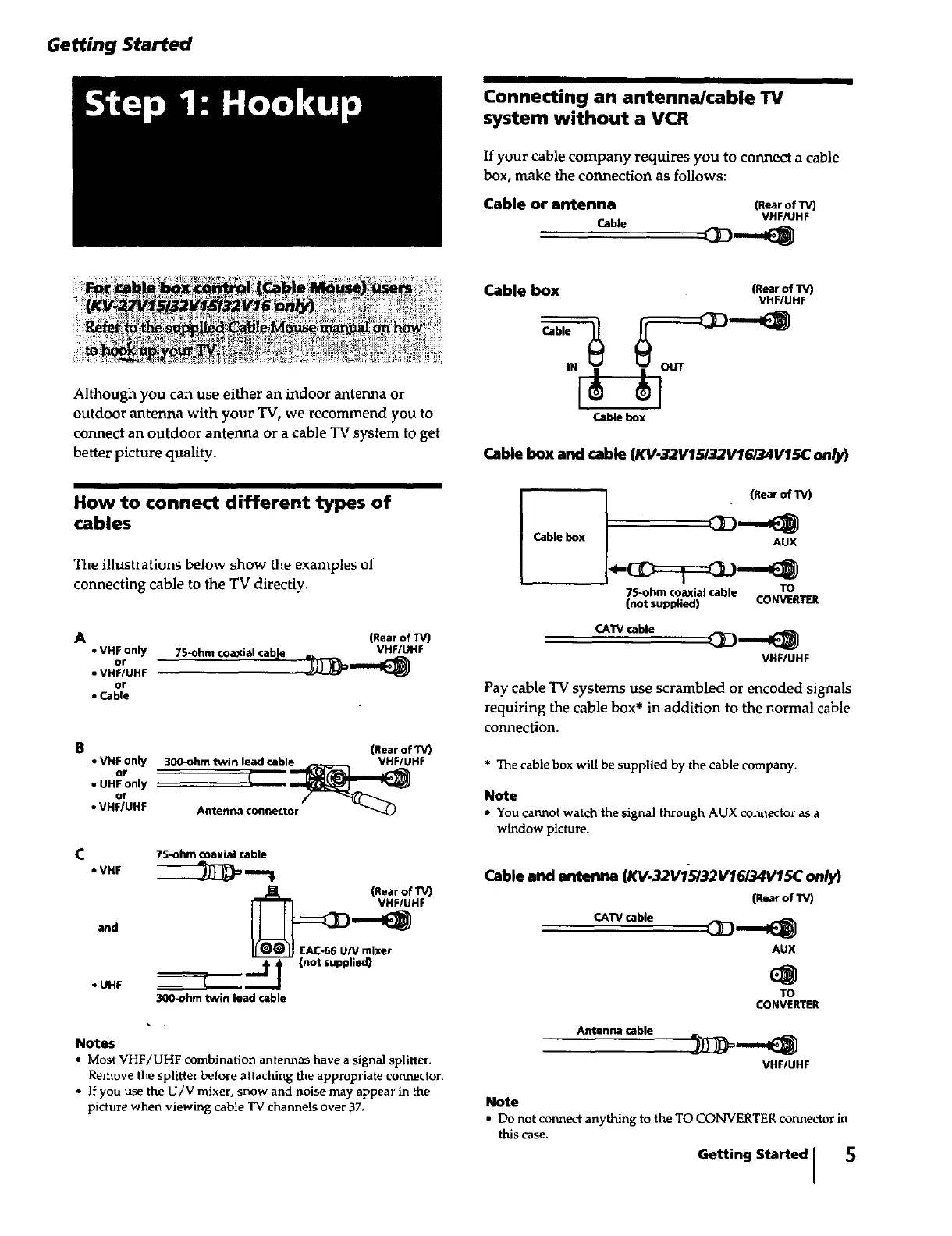

Getting Started
Although you can use either an indoor antenna or
outdoor antenna with your TV, we recommend you to
connect an outdoor antenna or a cable TV system to get
better picture quality.
How to connect different types of
cables
The illustrations below show the examples of
connecting cable to the TV directly.
A (Rearof TV)
• VHF only 75-ohm coaxial cable VHF/UHF
or
• VHFIUHF
or
• Cable
B
(Rear of TV)
• VHFonly 300-ohm twin lead cable VHF/UHF
or
• UHFonly
or
• VHF/UHF
Arltenfla connector
C
• VHF
and
• UHF
7S-ohm coaxial cable
.m. (Rear of I"V)
EAC-66UPI mixer
_- _ (not suppliedl
300-ohm twin lead cable
Notes
• Most VHF/UHF combination antermas have a signal splitter.
Remove the splitter before attaching the appropriate connector.
• If you use the U/V mixer, snow and noise may appear in the
picture when viewing cable TV channels over 37.
Connecting an antenna/cable TV
system without a VCR
If your cable company requires you to connect a cable
box, make the connection as follows:
Cable or antenna (Rearof
VHF/UHF
Cable
Cable box (Rear of TV)
VHF/UHF
Cable ::_ _:_mml_
INL-_OUT
Cable box
Cable box and cable (KV-32V15/32V16/34V15C only)
I (Rear of TV)
Cable box _)_AUX
75-ohm coaxial cable TO
(not $uppliedl CONVERTER
CATV cable _)_
VHF/UHF
Pay cable TV systems use scrambled or encoded signals
requiring the cable box* in addition to the normal cable
connection.
* The cable box will be supplied by the cable company.
Note
• You cannot watch the signal through AUX connector as a
window picture.
Cable and antenna (KV-32V15/32V16/34V15C only)
(Rearof TV)
CAW cable :_),m_
AUX
TO
CONVERTER
Antenna cable
VHF/UHF
Note
• Do not connect anything to the TO CONVERTER connector in
this case.
Getting Started I 5
