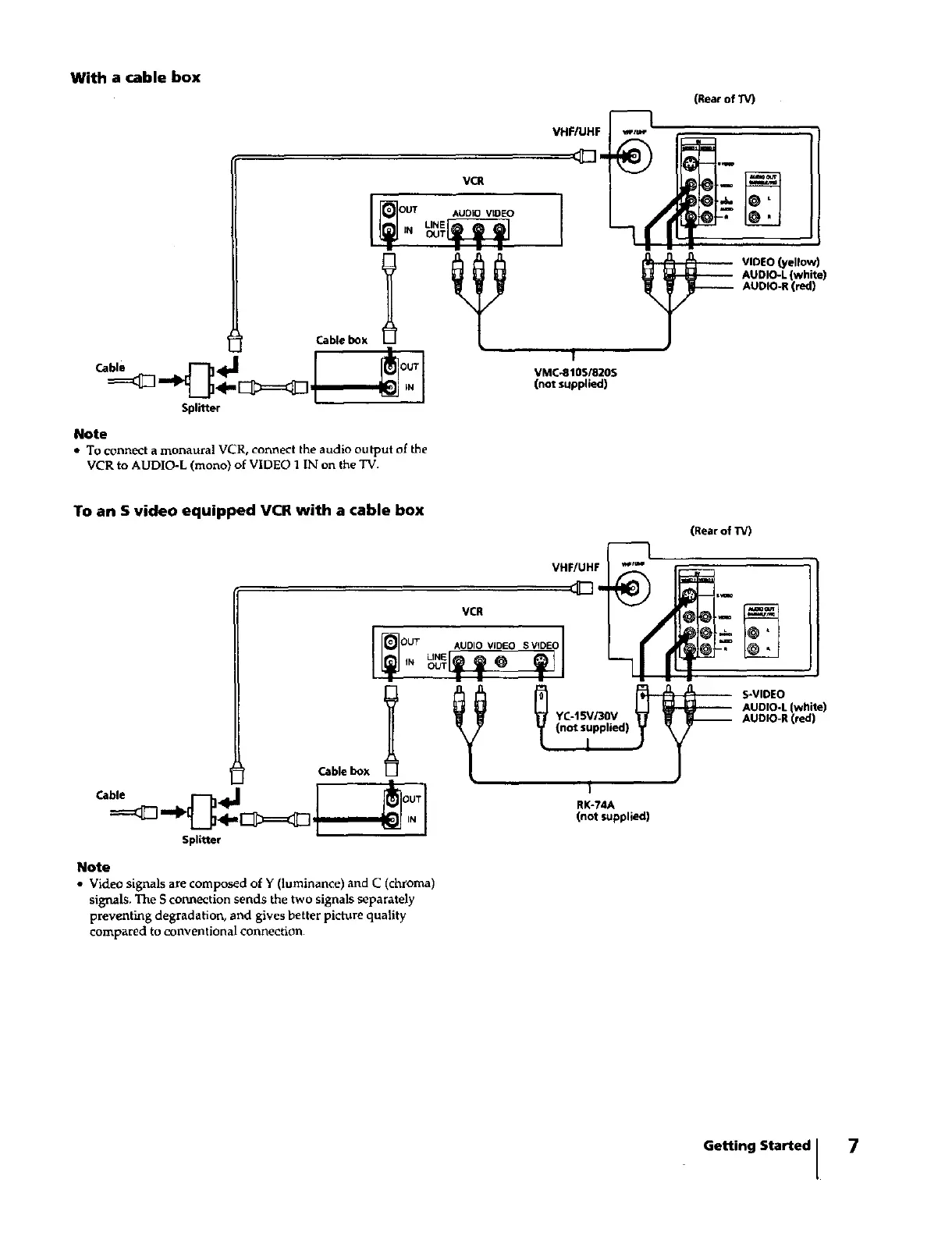

With a cable box
VCR
OUT AUDIO VIDEO
LINE[_..
IN OIJT
Cable box l
Splitter
Note
• To connect a monaura] VCR, connect the audio output of the
VCR to AUDIO-L (mono) of VIDEO 1 IN on the "IV.
VHF/UHF
I
|
VMC410S/820S
(not supplied)
(RearofTV)
-- VIDEO (yellow)
AUDIO-L (white)
-- AUDIO-R (red)
To an S video equipped VCR with a cable box
(RearofTV)
VHF/UHF
VCR
Cable box l
Ca_ P'_ _ OUT
Splitter
_ YC-15V/30V
(not supplied)
I
I
RK-74A
(not supplied)
-- S-VIDEO
AUDIO-L (white)
-- AUDIO-R (red)
Note
• Video signals are composed of Y (luminance) and C (chroma)
signals. The S connection sends the two signals separately
preventing degradation, and gives better picture quality
compared to conventional connection.
Getting Started 7
To Next Page
