Sony TRINITRON KV-PG14P70 - Dynamic Convergence Adjustment

– 16 –
KV-PG14M40/PG14M72/L/N
KV-PG14P42/G/L/N/PG14P70
RM-952

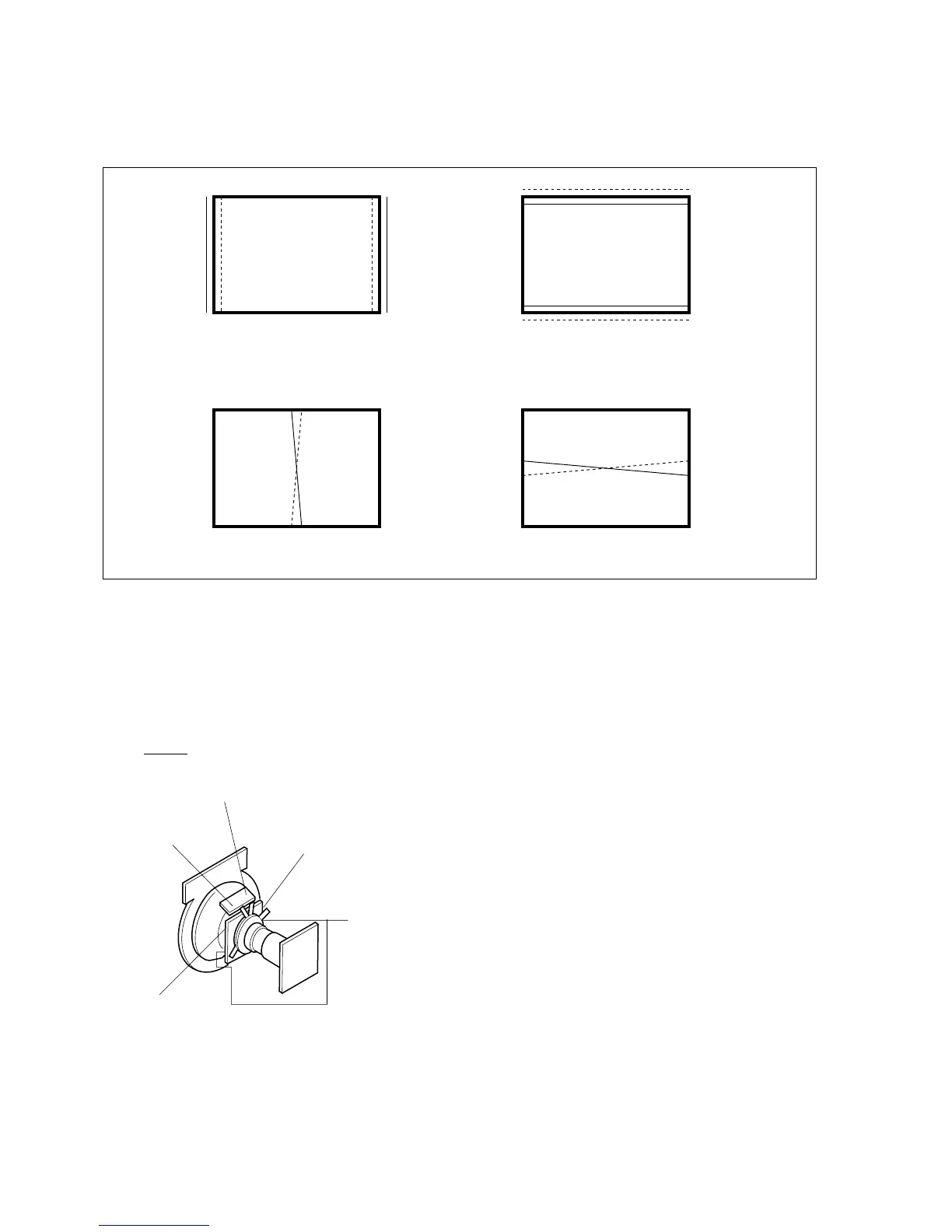

TLH Insert TLH Correction Plate to DY Pocket (Left or Right)
YCH Rotate YCH VOL on DY
TLV Rotate TLV VOL ON DY
XCV Rotate XCV Adj core on DY
ON DY:
(2) Dynamic Convergence Adjustment
Preparation:
Before starting this adjustment, adjust the horizontal static
convergence and the vertical static convergence
RB
RB
TLH TLV
YCH XCV
B
R
R
B
YCH
TLV
DY pocket
DY pocket
XCV
