1-8
SIIA Chassis
14
Specifications
Outputs
LINE A
Y/C OUT 4-pin mini-DIN (×1) loop-through,
Automatic 75 ohms termination
VIDEO OUT
BNC connector (×1) loop-through,
Automatic 75 ohms termination
AUDIO OUT
Phono jack (×1) loop-through
Speaker output Output level: 0.8 W
General
CRT PVM-14N5A/14N5E/14N5U/
14N6A/14N6E/14N6U:
14-inch CRT with P-22 phosphor
Visible picture size 340 mm
(13-inch measured diagonally)
PVM-20N5A/20N5E/20N5U/
20N6A/20N6E/20N6U:
20-inch CRT with P-22 phosphor
Visible picture size 490 mm
(19-inch measured diagonally)
Power consumption
PVM-14N5A/14N5E/14N5U: 80W
PVM-14N6A/14N6E/14N6U: 80W
PVM-20N5U/20N6U: 100W
PVM-20N5A/20N6A/20N5E/
20N6E: 105 W
Power requirements
100 to 240 V AC, 50/60Hz
“For use of PVM-14N5U/14N6U/
20N5U/20N6U”, operate these
monitors on 120 V AC.
Operating conditions
Temperature 0 to +35°C
Humidity 0 to 90% (no condensation)
Transport and Storage conditions
Temperature –10 to +40°C
Humidity 0 to 90%
Dimensions (w/h/d)
PVM-14N5A/14N5E/14N5U/
14N6A/14N6E/14N6U:
346 × 340 × 414 mm
(13
5
⁄ 8 × 13
1
⁄ 2 × 16
3
⁄ 8 inches)
PVM-20N5A/20N5E/20N5U/
20N6A/20N6E/20N6U:
449 × 441 × 502 mm
(17
3
⁄ 4 × 17
3
⁄ 8 × 19
7
⁄ 8 inches)
Mass PVM-14N5A/14N5E/14N5U/
14N6A/14N6E/14N6U:
Approx. 15 kg (33 lb 1 oz)
PVM-20N5A/20N5E/20N5U/
20N6A/20N6E/20N6U:
Approx. 28 kg (61 lb 12 oz)
Accesory supplied AC power cord (1)
Operating Instructions (1)

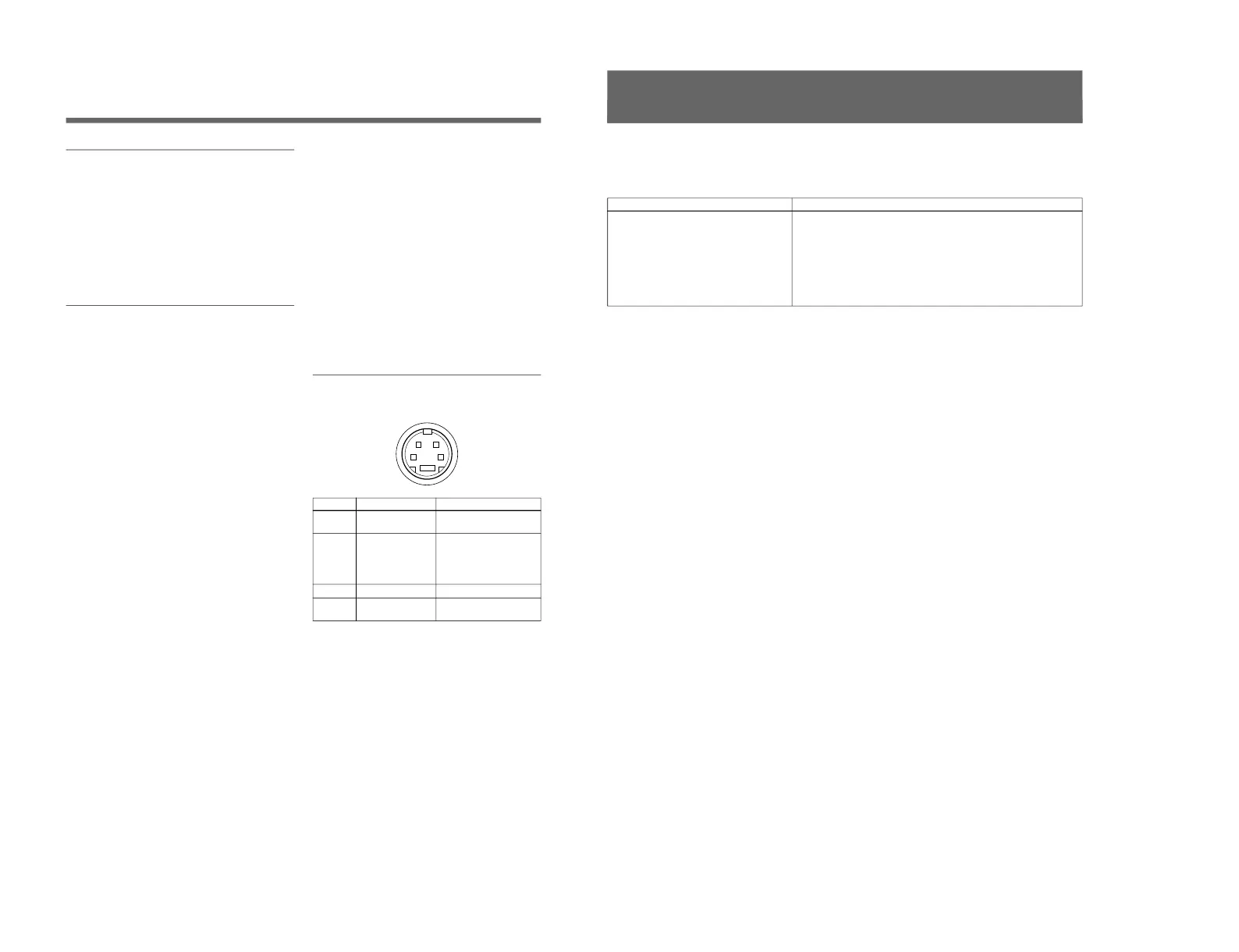

Pin assignment
Y/C IN connector (4-pin mini-DIN)
21
34
*
Pin No.
1
2
3
4
Design and specifications are subject to change
without notice.
Signal
Y-input
CHROMA
subcarrier-input
GND for Y-input
GND for CHROMA-
input
Description
1 Vp-p, sync negative, 75
ohms
0.286 Vp-p (NTSC), 300m
Vp-p (PAL), burst
Delay time between Y and
C: within 0 ± 100 nsec.,
75 ohms
GND
GND
15
This section may help you isolate the problem. Should
the problem persist, unplug the unit and contact your
Sony dealer or local authorized Sony service facility.
Troubleshooting
Symptom
If colors are not accurately reproduced
Possible causes and remedies
The monitor input signal is deviated from the color system specifications (i.e.
signals from VCRs).
Proceed as follows to correct this phenomenon.
1 Confirm the color system of the input signal.
2 Select the same color system as that of the input signal on the COLOR
SELECT menu.
If the problem remains unsolved after corresponding color system is
selected, briefly turn OFF the power, then turn ON the monitor again.
