12
Using On-Screen Menus

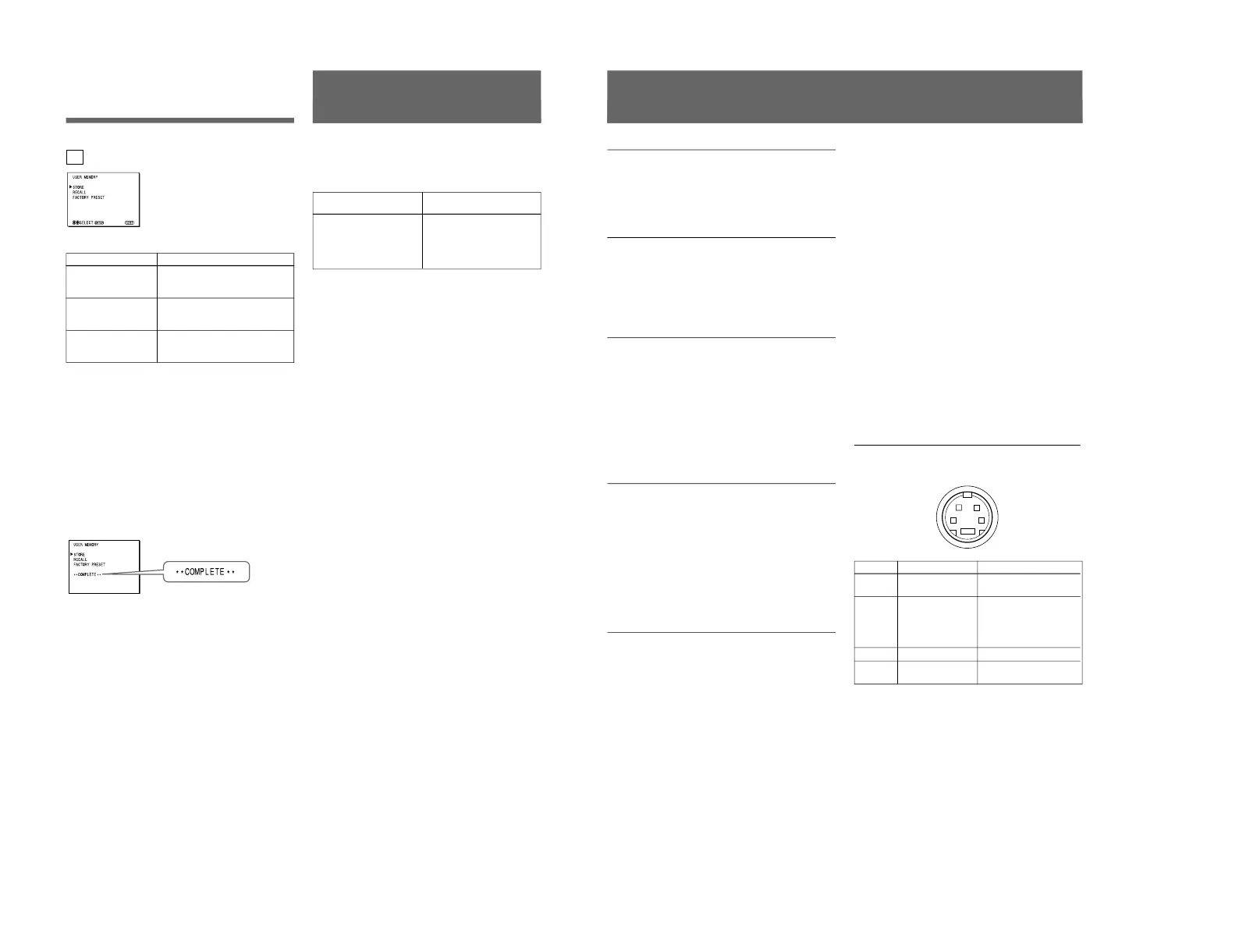

2d USER MEMORY menu
The items have the following functions.
Item
STORE
RECALL
FACTORY PRESET
a) The current settings and adjusted values are reset to the
factory settings. The values and settings adjusted and
stored in the internal memory by using the STORE
menu, however, are not changed. To reset internally
stored adjusted values and settings to the factory setting,
select FACTORY PRESET, first, then select STORE.
The color system of the input signal is reset to AUTO
even though the factory setting on the COLOR SELECT
menu is NTSC or PAL.
When you press the ENTER (4) button, the following
message is displayed for about two seconds. The
currently selected item becomes active when pressing
the ENTER (4) button.
This section may help you isolate the problem. Should
the problem persist, unplug the unit and contact your
Sony dealer or local authorized Sony service facility.
Symptom
If the picture is unstable,
when the input signal from
a security camera is
switched
Troubleshooting
Possible causes and
remedies
Select NTSC on the COLOR
SELECT menu when the
NTSC signal is input.
Select PAL when the PAL
signal is input.
Function
To store all adjustments and
settings currently set on each
menu into the internal memory.
To recall all adjustments and
settings currently stored in the
internal memory.
To reset the adjustments and
settings currently set on each
menu to the factory settings.
a)
13
Specifications
Video signal
Color system NTSC, PAL, SECAM, NTSC
4.43
Resolution 500 TV lines
Frequency response
LINE 6 MHz±3dB (Y signal)
Picture performance
Normal scan 7 % over scan of CRT effective
screen area
H. linearity Less than 8.0 % (typical)
V. linearity Less than 7.0 % (typical)
Color temperature D65
Inputs
LINE
Y/C IN 4-pin mini-DIN(×1)
See the pin assignment on this page.
VIDEO IN BNC connector (×1), 1Vp-p +3 dB,
–6 dB, sync negative
AUDIO IN Phono jack (×1), –5 dBu
a)
, more
than 47 kilo-ohms
a) 0 dBu = 0.775 Vr.m.s.
Outputs
LINE
Y/C OUT 4-pin mini-DIN (×1) loop-through,
Automatic 75 ohms termination
VIDEO OUT
BNC connector (×1) loop-through,
Automatic 75 ohms termination
AUDIO OUT
Phono jack (×1) loop-through
Speaker output Output level: 0.8 W
General
CRT SSM-14N5E/14N5U/14N5A:
14-inch CRT with P-22 phosphor
visible picture size 340 mm
(13-inch measured diagonally)
SSM-20N5E/20N5U/20N5A:
20-inch CRT with P-22 phosphor
visible picture size 490 mm
(19-inch measured diagonally)
Power consumption
SSM-14N5E/14N5U/14N5A: 80W
SSM-20N5U: 100 W
SSM-20N5E/20N5A: 105W
Power requirements
100 to 240 V AC, 50/60Hz
“For use of SSM-14N5U/20N5U”,
operate these monitors on 120 V AC.
Operating conditions
Temperature 0 to +35°C
Humidity 0 to 90% (no condensation)
Transport and Storage conditions
Temperature –10 to +40°C
Humidity 0 to 90%
Dimensions (w/h/d)
SSM-14N5E/14N5U/14N5A:
346 × 340 × 414 mm
(13
5
⁄
8
× 13
1
⁄
2
× 16
3
⁄
8
inches)
SSM-20N5E/20N5U/20N5A:
449 × 441 × 502 mm
(17
3
⁄
4
× 17
3
⁄
8
× 19
7
⁄
8
inches)
Mass SSM-14N5E/14N5U/14N5A:
Approx. 15 kg (33 lb 1 oz)
SSM-20N5E/20N5U/20N5A:
Approx. 28 kg (61 lb 12 oz)
Accesory supplied AC power cord (1)
Operating Instructions (1)
5
Pin assignment
Y/C IN connector (4-pin mini-DIN)
