Sony Trinitron PVM-1954Q User Manual

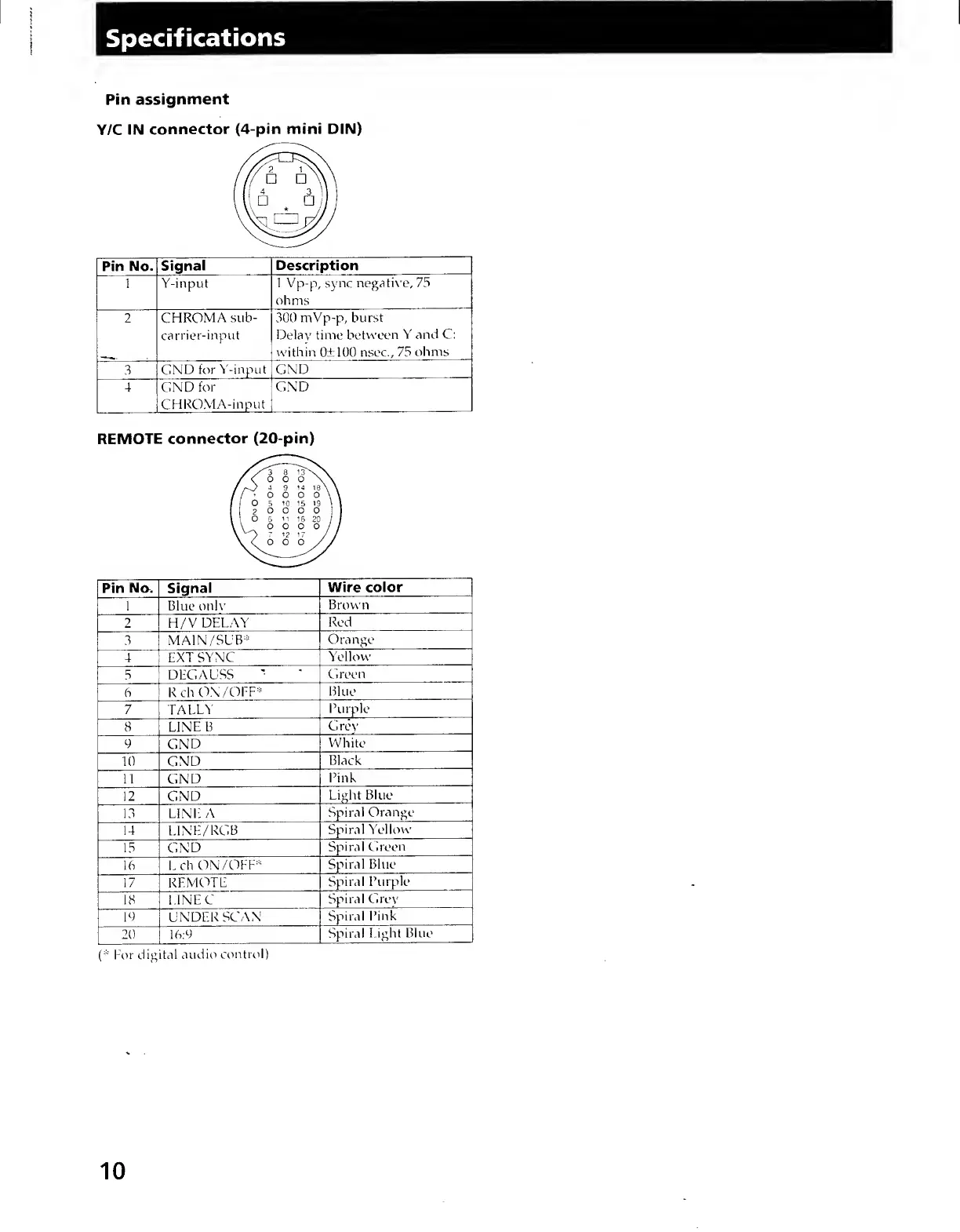

Specifications
Pin assignment
Y/C
IN
connector
(4-pin mini DIN)
Pin No.
Signal Description
1
Y-input
1 Vp-p, sync
negative, 75
ohms
2
CHROMA sub-
carrier-input
300 mVp-p,
burst
Delay
time
between
Y and C:
within 0±100 nsec.,
75 ohms
3
GND for
Y-input GND
4
GND
for
CHROMA-input
GND
REMOTE
connector
(20-pin)
8
^3^
/
0 O 0
N,
\
/
/-O
4
9
14
leX
\
/ {
'
0 O 0
0
\ \
/
/
0
5
10 15
19
\
\
1
2
O o 0 0
v \
°
6
1
•,
16
20
/ /
0 o 0
0/1
\
12
17
/
j
X
0 o 0
V
Pin No. Signal
Wire color
1 Blue onh’
Brown
2 H/V
DELA't
Red
3
MAIN/SUB^^'
Orange
4
EXT SYNC
Yel
Unv
5
DEGAUSS
Green
6 R ch
ON70FF'^‘
Blue
7 TALL3'
Furple
8
LINE B
Grey
9
GND
White
10 GND
Black
11 GND
Pink
12 GND
Light
Blue
13 LINE A
Spiral Orange
14 LINH/RGB
Spiral Yellow
15 GND
Spiral
Green
16 Lch
ON/OFF^^^
Spiral Blue
17 REMOTE
Spiral
Purple
18 LINEC
Spiral Grey
19
UNDER
SCAN
Spiral
Pink
20
16:9
Spiral
l ight Blue
(*
For
digital
audio
control)
10
