Connections

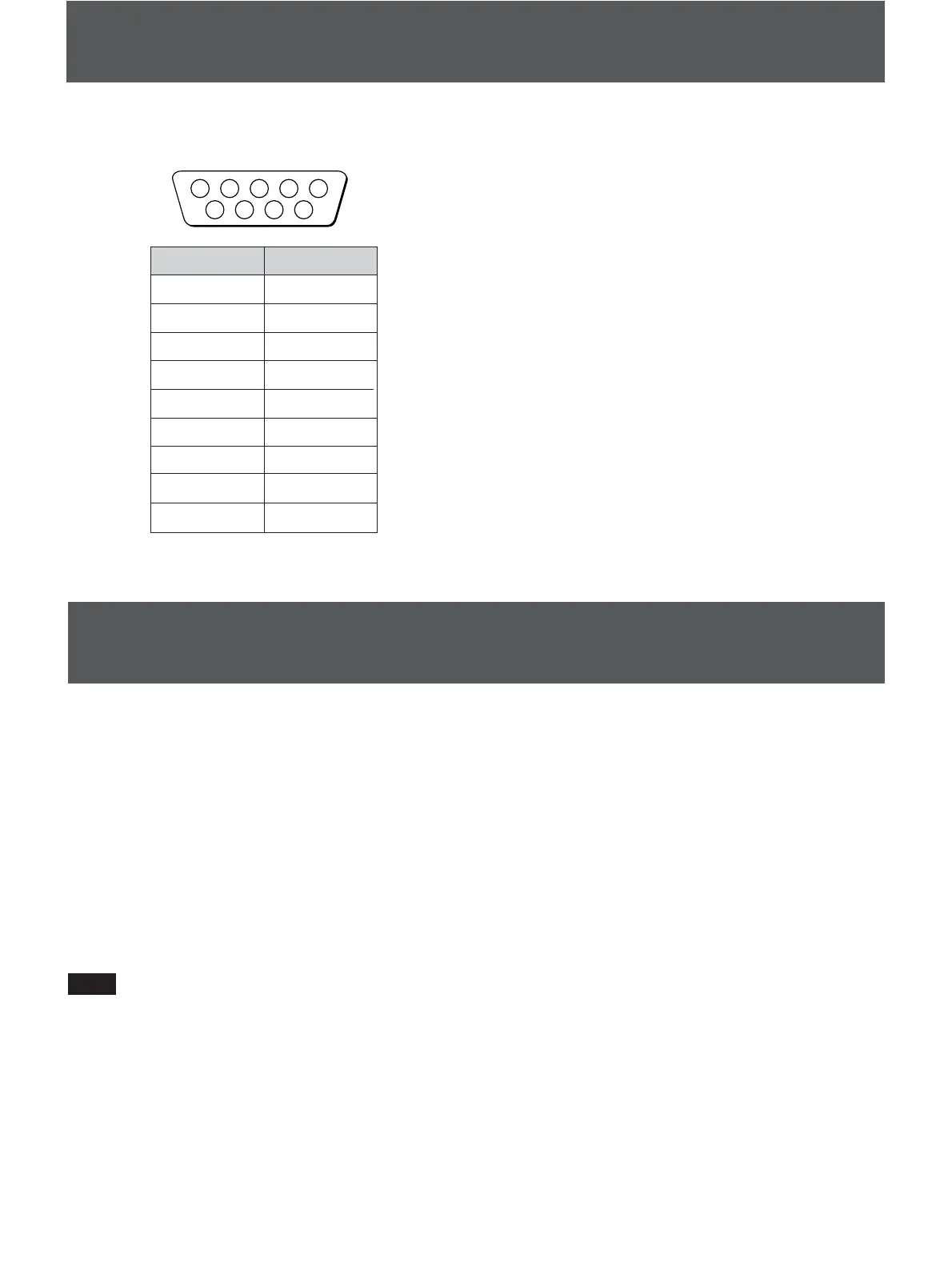

Pin assignment for the RS-232C connector is as
follows.
12345
6789
Signal
Unused
RX
TX
Unused
GND
Unused
RTS
CTS
Unused
Pin number
1
2
3
4
5
6
7
8
9
This protocol provides the following features when
individual monitors are controlled.
• The ability to change the parameters of the monitor
without changing the NV RAM settings. These
parameters include Presets, White Balance and
Input Configuration.
• Switch functions can be changed.
• The ability to remotely make settings and
adjustments normally made with the monitors’s
menu.
• The ability to save current monitors parameters into
the NV RAM for safe keeping.
Note
When there is a signal change or an input change
before saving the changed parameters into the NV
RAM, the changes are discarded and their previous
values are restored.
Features of the Command Protocol
