Section 1
Service Informations

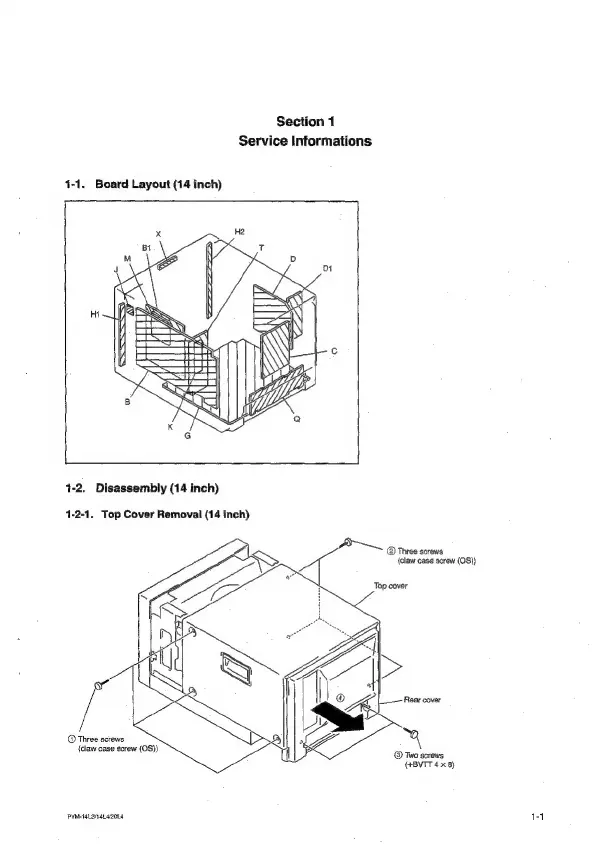

1-1. Board Layout (14 inch)
1-2. Disassembly (14 inch)
1-2-1. Top Cover Removal (14 inch)
@ Three screws
(claw case screw (OS))
Top cover
@ Three screws
{claw
case
screw
(OS)}
@
Two
screws
(4BVTT 4x8)
PYMAaLs/4LaZoL4 14
