Ref. No. Part No. Description Remark
VCT-FS7
33
SECTION 2
ACCESSORIES
* 4-564-777-01 MANUAL, INSTRUCTION
(JAPANESE, ENGLISH, FRENCH, GERMAN)
* 4-564-777-11 MANUAL, INSTRUCTION (SPANISH, DUTCH,
ITALIAN, PORTUGUESE, SIMPLIFIED CHINESE)
501 4-458-485-02 15X250 ROD (1 piece) (Φ 15 rod)
502 4-564-773-01 SCREW, BINDING 3/8
(Retaining screw (3/8 in.) for rear base)
503 7-682-548-09 SCREW +B 3X8 (1 piece)
(Retaining screw (+B M3x8) for rear base)
504 4-547-069-11 VF ROD (for Service)

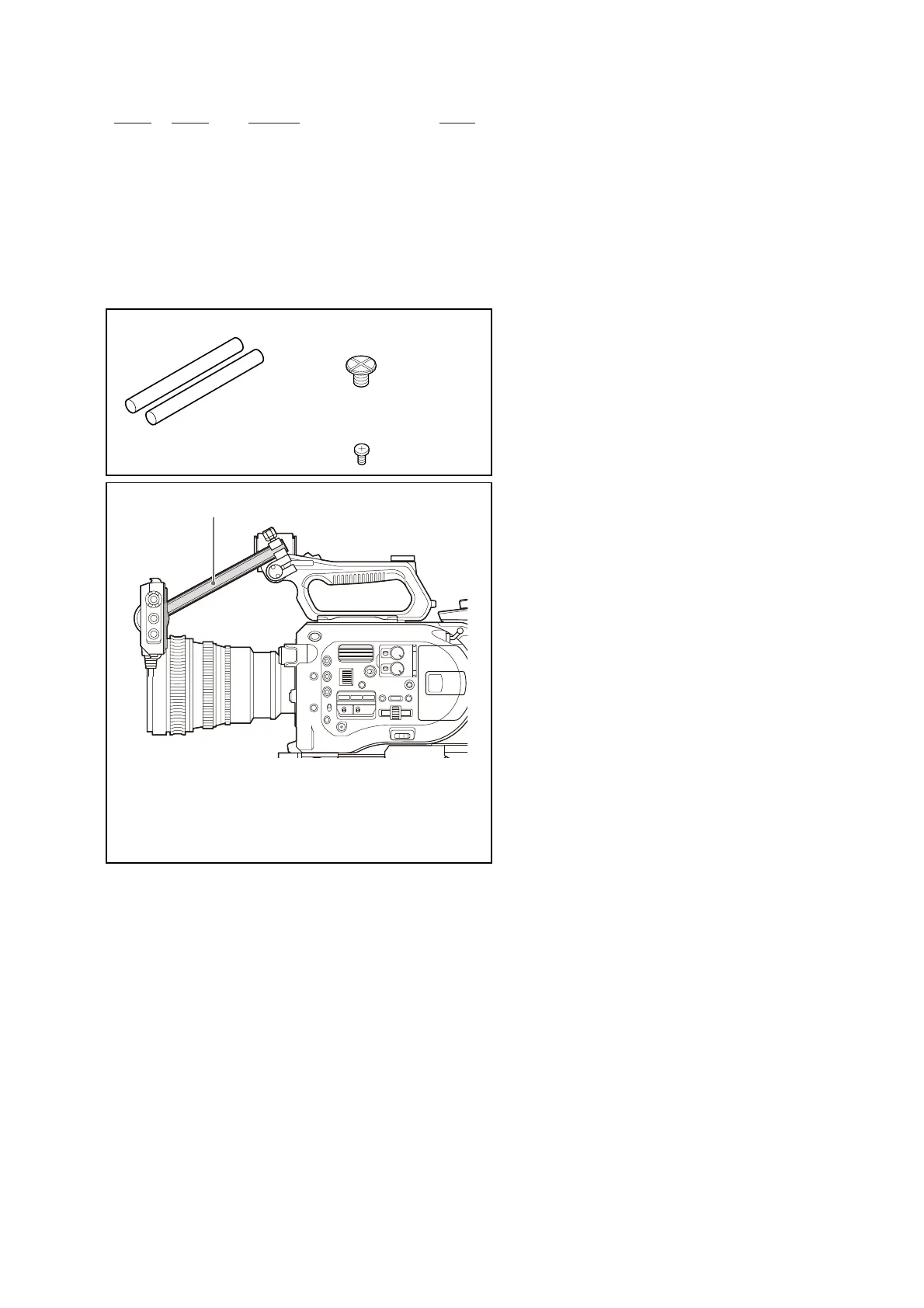

501
ø 15 rods (2)
502
Retaining screw (3/8 in.) for rear base (1)
503
Retaining screws (+B M
3 u8
) for rear base (10)
504
Viewfinder rod
Note:
This part is not an accessory.
The length of the viewfinder rod may be insufficient
when attaching the PXW-FS7 adjustable shoulder pad
at the forefront position.
In that case, use the viewfinder rod (for service),
which is 20 mm longer than the standard viewfinder rod.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
