Sony Walkman D-E777 - Motor ASSY, Turn Table (Spindle) (M901); Motor ASSY (Sled) (M902), Optical Pick-Up (DAX-23 E); Lid, Upper, Switch Unit

7
D-E777/EJ721/EJ725

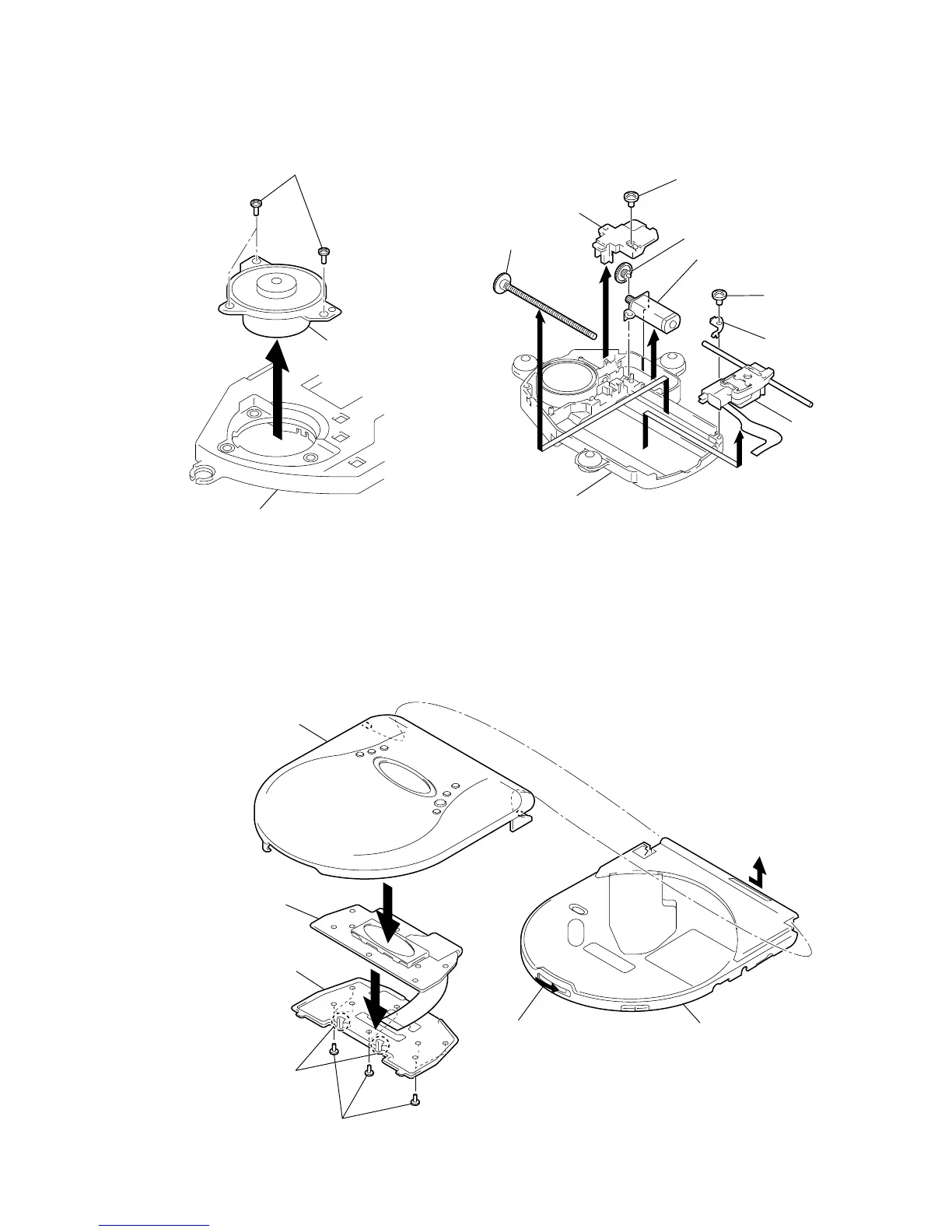

3-3. “MOTOR ASSY, TURN TABLE
(SPINDLE) (M901)”
3-4. “MOTOR ASSY (SLED) (M902)”,
OPTICAL PICK-UP (DAX-23E)
3
5
6
2
1 Screw (B 1.7x5)
4 Screw
(P 1.4x3.5)
Screw ASSY, Feed
Chassis
Optical pick-up
(DAX-23E)
Retainer, shaft
Gear B
Cover, Gear
Motor ASSY (Sled) (M902)
2
Motor ASSY, Turn tabl
e
(Spindle) (M901)
1 Screws
(B1.7x5)
Chassis
3-5. “LID, UPPER”, SWITCH UNIT
4
2
6
Switch unit
Cover, lid
Cabinet (front)
Lid, upper
1 OPEN
5 Claws
3 Screws
