Sony WEGA KDE-50XS955, KDE-37XS955, KDE-42XS955 User Manual

29
Setup
About Using
S VIDEO
If the optional equipment you are connecting has an S VIDEO jack
(shown at left), you can use an S VIDEO cable for improved picture
quality (compared to an A/V cable). Because S VIDEO carries only
the video signal, you also need to connect audio cables for sound, as
shown below.

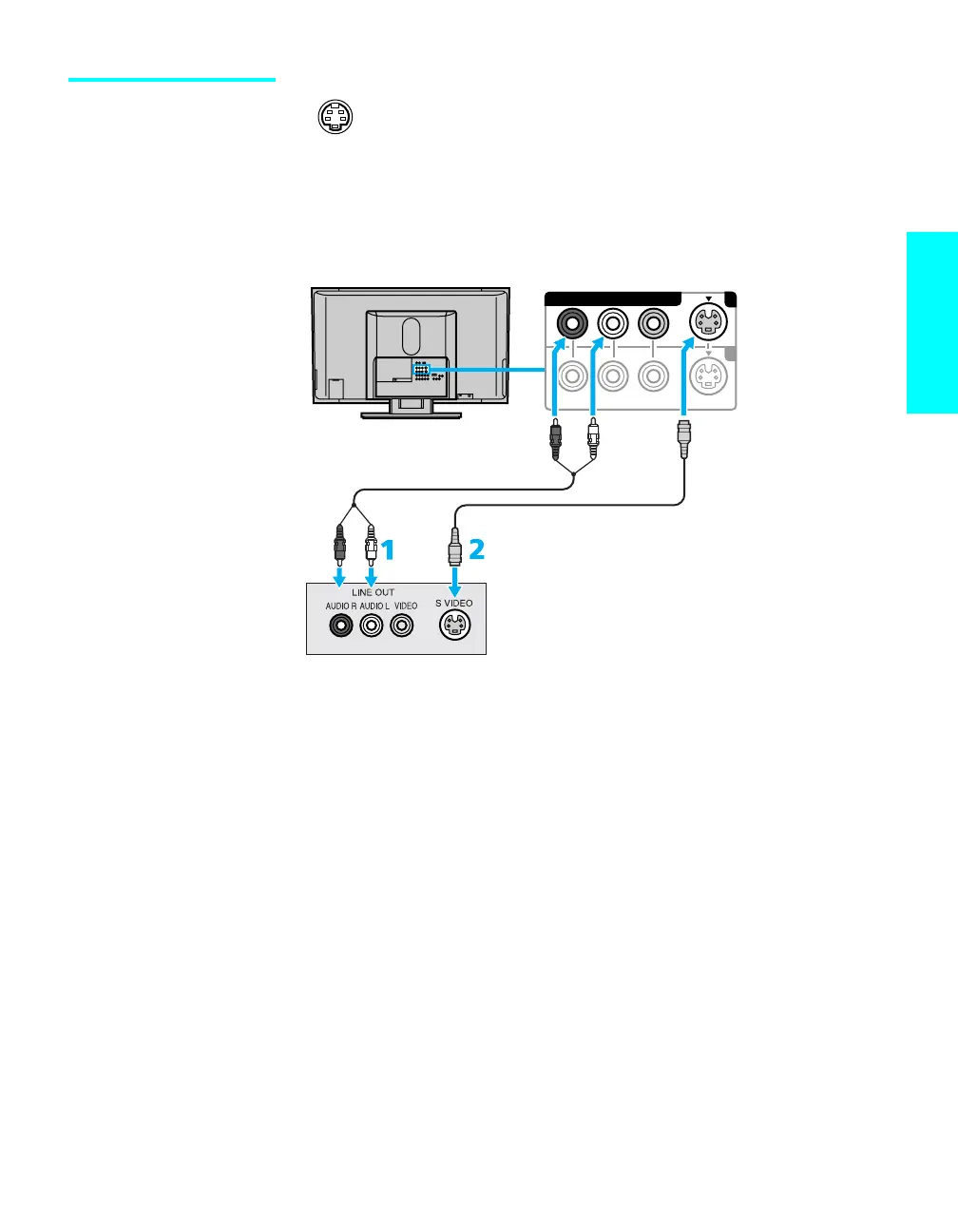

Example of an S VIDEO Connection
R-AUDIO -L
VIDEO
S VIDEO
(
MONO
)
VIDEO IN
1
3
S VIDEO
cable
Audio cable
Rear of TV
Equipment with S VIDEO

Sony WEGA KDE-50XS955, KDE-37XS955, KDE-42XS955 Specifications

General

Display Technology	Plasma
Aspect Ratio	16:9
Contrast Ratio	10000:1
Inputs	HDMI, Component, Composite, S-Video
Brightness	1000 cd/m²
Viewing Angle	160 degrees
Screen Size	50 inches (KDE-50XS955), 37 inches (KDE-37XS955), 42 inches (KDE-42XS955)
