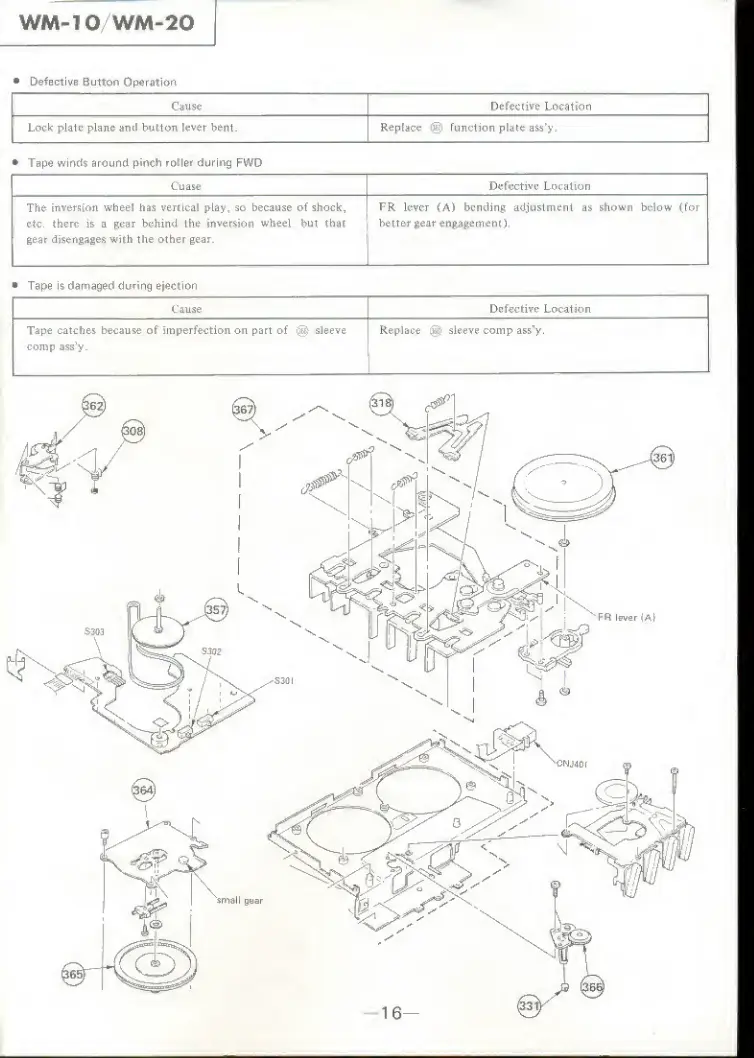

WM-10 WM-20
* Defective Button Operation
Cause
Defective Location
Lock plate plane? and button lever bent. Replace @ function plate ass’y.
* Tape winds around pinch roller during FWD
Cuase Defective Location
The inversion wheel has vertical play, so because of shock,
etc. there is a gear behind the inversion wheel but that
gear disengages with the other gear.
FR lever (A) bending adjustment as shown below (for
better gear engagement).
* Tape is. damaged during ejection
Cause Defective Location
Tape catches because of imperfection on part of @ sleeve
comp ass’y-
Replace @ sleeve comp ass’y-
16 —
