SECTION 4

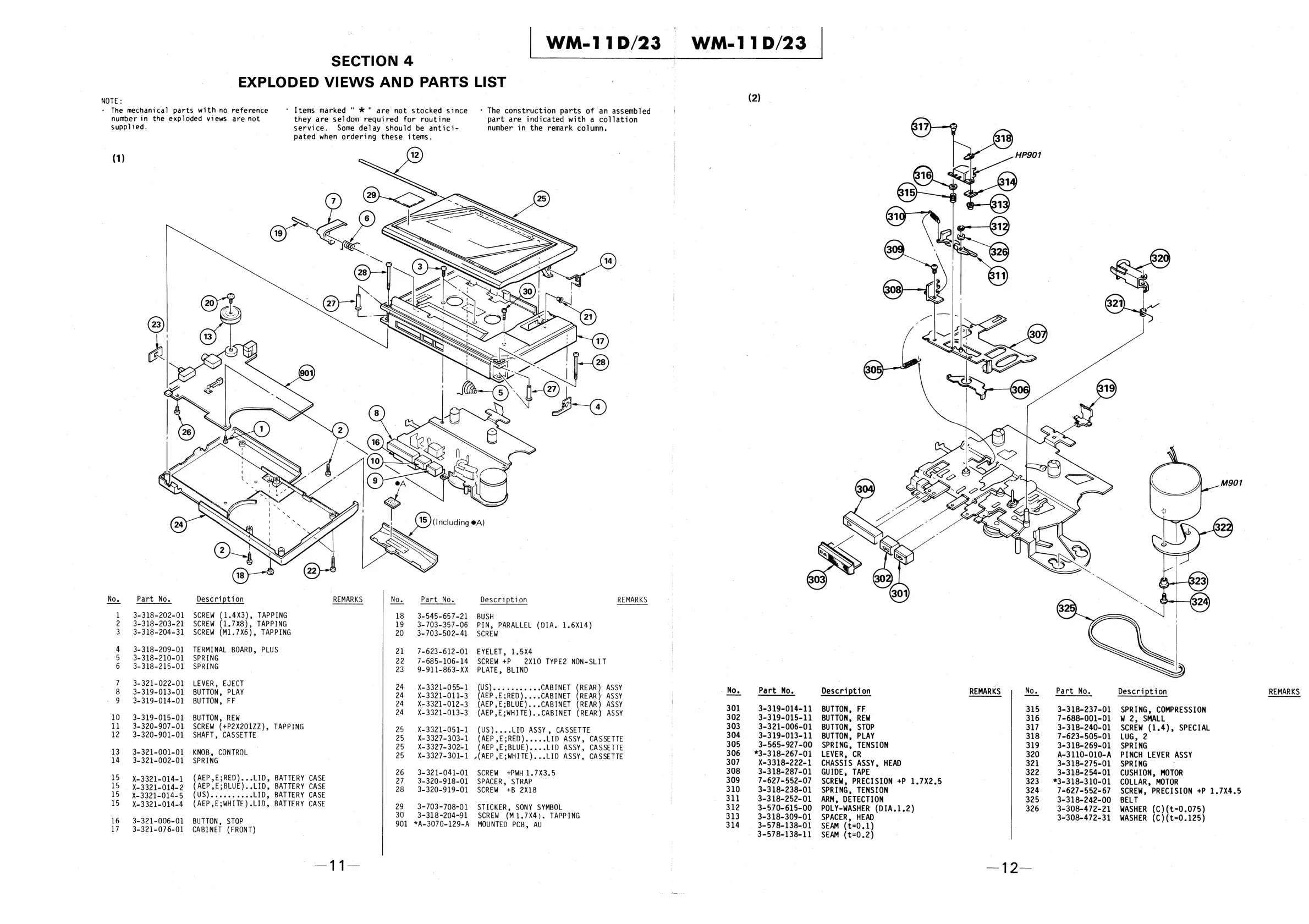

EXPLODED VIEWS AND PARTS LIST
WM-11D/23
WM-11D/23
NOTE:
- The mechanical parts with no reference
number in the exploded views are not
supplied.
* Items marked " *" are not stocked since
they are seldom required for routine
service. Some delay should be antici-
pated when ordering these items.
(1)
- The construction parts of an assembled
part are indicated with a collation
number in the remark column.
No. Part No. Description
1 3-318-202-01 SCREW (1.4X3), TAPPING
2 3-318-203-21 SCREW (1.7X8), TAPPING
3 3-318-204-31 SCREW (M1.7X6), TAPPING
4 3-318-209-01 TERMINAL BOARD, PLUS
5 3-318-210-01 SPRING
6 3-318-215-01 SPRING
7 3-321-022-01 LEVER, EJECT
8 3-319-013-01 BUTTON, PLAY
9 3-319-014-01 BUTTON, FF
10 3-319-015-01 BUTTON, REW
11 3-320-907-01 SCREW (+P2X201ZZ), TAPPING
12 3-320-901-01 SHAFT, CASSETTE
13. 3-321-001-01 KNOB, CONTROL
14 =3-321-002-01 SPRING
15 y¥-3321-014-1 (AEP,£;RED)...LID, BATTERY CASE
15 = x¥.-.3321-014-2 (AEP,E;BLUE)..LID, BATTERY CASE
15) “(Xe992 T0145. CUS) mores ces LID, BATTERY CASE
15 =X~3321-014-4 (AEP,E;WHITE).LID, BATTERY CASE
16 3-321-006-01 BUTTON, STOP
17 = 3-321-076-01 CABINET (FRONT)
REMARKS No.
Part No.
18 3-545-657-21
19 3-703-357-06
20 =. 33-- 703-502- 41
21 7-623-612-01
22 7-685-106-14
23. -9-911-863-XX
24 = X-3321-055-1
24 = X-3321-011-3
24 = X- 3321-012-3
24 = X-3321-013-3
25 = X-3321-051-1
25 = X-3327-303-1
25 = X-3327-302-1
Description
BUSH
PIN, PARALLEL (DIA. 1.6X14)
SCREW
EYELET, 1.5X4
SCREW +P 2X10 TYPE2 NON-SLIT
PLATE, BLIND
WS) coco soudet CABINET (REAR) ASSY
(AEP .E:RED)....CABINET (REAR) ASSY
(AEP ,E;BLUE)...CABINET (REAR) ASSY
(AEP ,E;WHITE)..CABINET (REAR) ASSY
(US)....LID ASSY, CASSETTE
(AEP ,E;RED)..... LID ASSY, CASSETTE
(AEP ,E;BLUE)....LID ASSY, CASSETTE
(
25 X=-3327-301-1 ,(AEP,E;WHITE)...LID ASSY, CASSETTE
26 =. 3- 321-041-001
27 =—3- 320-9 18-01
28 = 3-320-919-01
29 = 3-703-708-01
30 3-318-204-91
901 *A-3070-129-A
— 1 1 ——
SCREW +PWH 1.7X3.5
SPACER, STRAP
SCREW +B 2X18
STICKER, SONY SYMBOL
SCREW (M1.7X4). TAPPING
MOUNTED PCB, AU
REMARKS
(2)
- No. Part No.
301 3-319-014-11
302 3-319-015-11
303 3-321-006-01
304 3-319-013-11
305 3-565-927-00
306 *3-318-267-01
307 X-3318-222-1
308 3-318-287-01
309 7-627-552-07
310 3-318-238-01
311 3-318-252-01
312 3-570-615-00
313 3-318-309-01
314 3-578-138-01
— 3-578-138-11
Description
BUTTON, FF
BUTTON, REW
BUTTON, STOP
BUTTON, PLAY
SPRING, TENSION
LEVER, CR
CHASSIS ASSY, HEAD
GUIDE, TAPE
SCREW, PRECISION +P 1.7X2.5
SPRING, TENSION
ARM, DETECTION
POLY-WASHER (DIA.1.2)
SPACER, HEAD
SEAM (t=0.1)
SEAM (t=0.2)
REMARKS No
315
316
317
318
319
320
321
322
323
324
325
326
eo
Part No.
3-318-237-01
7-688-001-01
3-318-240-01
7-623-505-01
3-318-269-01
A-3110-010-A
3-318-275-01
3-318-254-01
*3-318-310-01
7-627-552-67
3-318-242-00
3-308-472-21
3-308-472-31
Description
REMARKS
SPRING, COMPRESSION
W 2, SMALL
SCREW (1.4), SPECIAL
LUG, 2
SPRING
PINCH LEVER ASSY
SPRING
CUSHION, MOTOR
COLLAR, MOTOR
SCREW, PRECISION +P 1.7X4.5
BELT
WASHER (C
WASHER (C
)(t=0.075)
)(t=0.125)
