Sony WM-AF22 User Manual

ny
NOTE:
- WM-AF22/AF28/BF22/BF28
The mechanical parts with no reference
number in. the exploded views are not
supplied.
The construction parts of an assembled
part are indicated with a collation num-
ber in the remark column. A
Items marked “*" are not stocked since
they are seldom required for routine
service. Some delay should be antici-
pated when ordering these items.

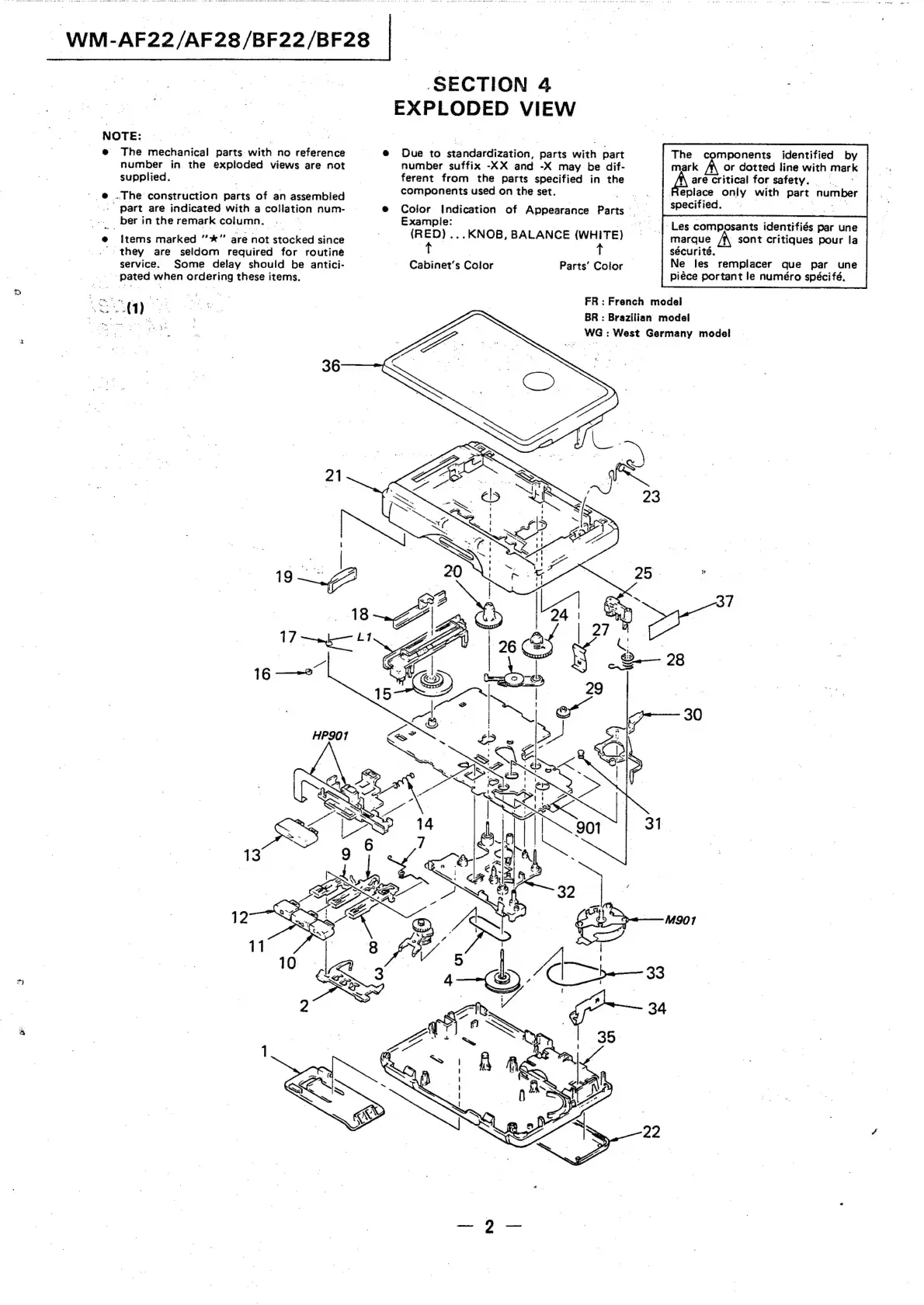

SECTION 4
EXPLODED VIEW
Due to standardization, Parts with part
number suffix -XX and -X may be dif-
ferent from the parts specified in the
components used on the set.
Color Indication of Appearance Parts -
Example:
(RED)... KNOB, BALANCE (WHITE) _
a
Cabinet's Color Parts’ Color —
The components identified by
mark or dotted line with mark
Avare critical for safety.
eplace only with part number
specified. Ge ee
| Les composants identifiés par une
marque /{\ sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifé.
t
FR: French model |
BR : Brazilian model
WG : West Germany model
