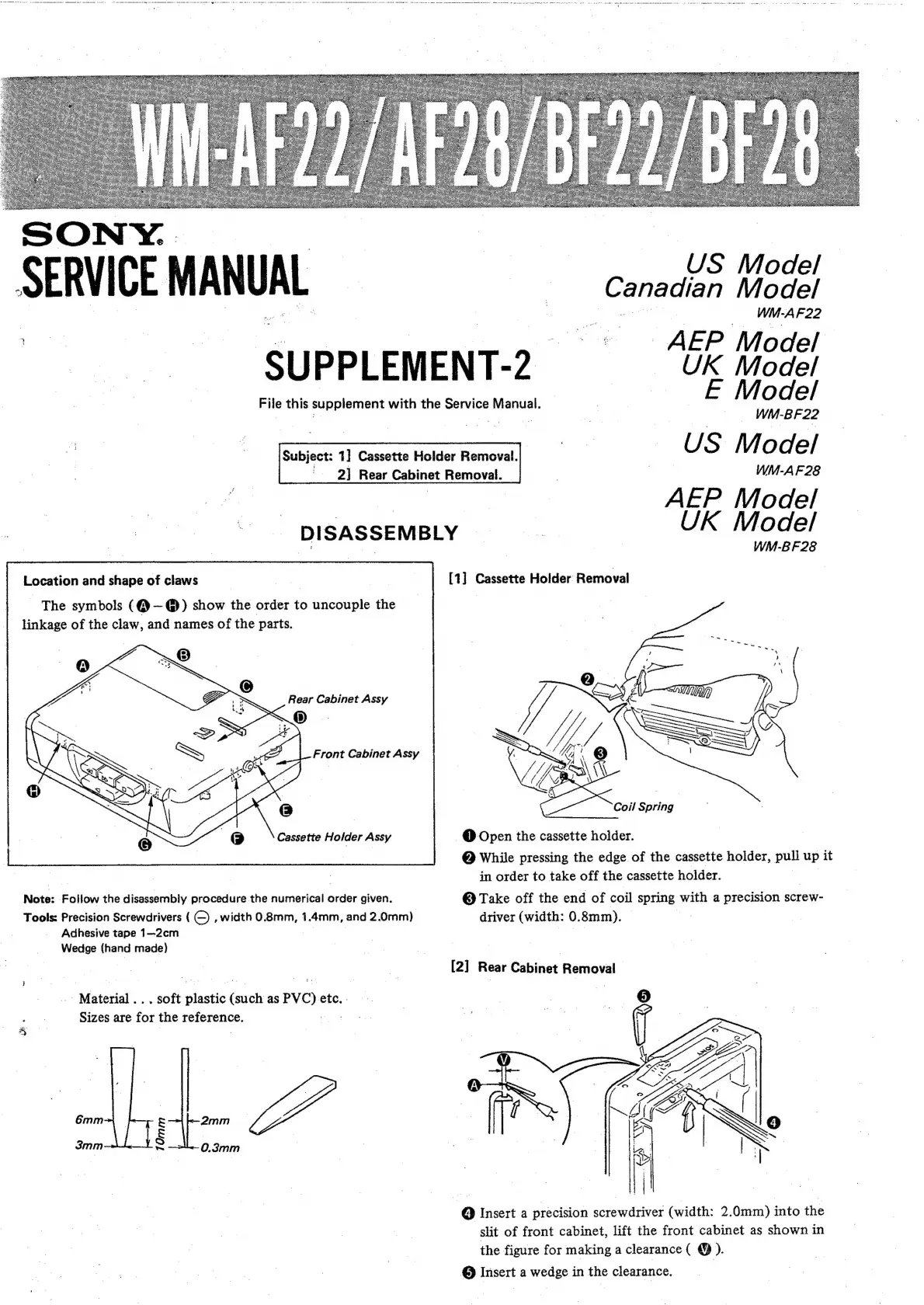

SERVICE
MANU
DISASSEMBLY
Location
and
shape
of
claws
The
symbols
(@—@)
show
the
order
to
uncouple
the
linkage
of
the
claw,
and
names
of
the
parts.
Cassette
Holder
Assy
Note:
Follow
the
disassembly
procedure
the
numerical
order
given.
Tools:
Precision
Screwdrivers
(©),
width
0.8mm,
1.4mm,
and
2.0mm)
Adhesive
tape
1—2cm
a
|
Wedge
(hand
made)
Material
..
.
soft
plastic
(such
as
PVC)
etc.
2
2
Sizes
are
for
the
reference.
SUPPLEMENT-
File
this
supplement
with
the
Service
Manual.
Subject:
1]
Cassette
Holder
Removal.
____2]
Rear
Cabinet
Removal.
US
Model
Canadian
Model
diate
F22
“UK
Model
E
Model
WM-BF
22
US
Model
WM-AF
28
AEP
Model
UK
Model
WM-BF
28
[1]
Cassette
Holder
Removal
Coil
Spring
~@
Open
the
cassette
holder.
@
While
pressing
the
edge
of
the
cassette
holder,
pull
up
it
in
order
to
take
off
the
cassette
holder.
@
Take
off
the
end
of
coil
spring
|
with
a
precision
screw-
driver
(width:
0.
8mm).
[2]
Rear
Cabinet
Removal
€)
Insert
a
precision
screwdriver
(width:
2.0mm)
into
the
slit
of
front
cabinet,
lift
the
front
cabinet
as
shown
in
the
figure
for
making
a
clearance
(
®
).
@
Insert
a
wedge
in
the
clearance.
