Sony WM-EX570 Service Manual

– 6 –
Note: Follow the disassembly procedure in the numerical order given.
SECTION 3
DISASSEMBLY

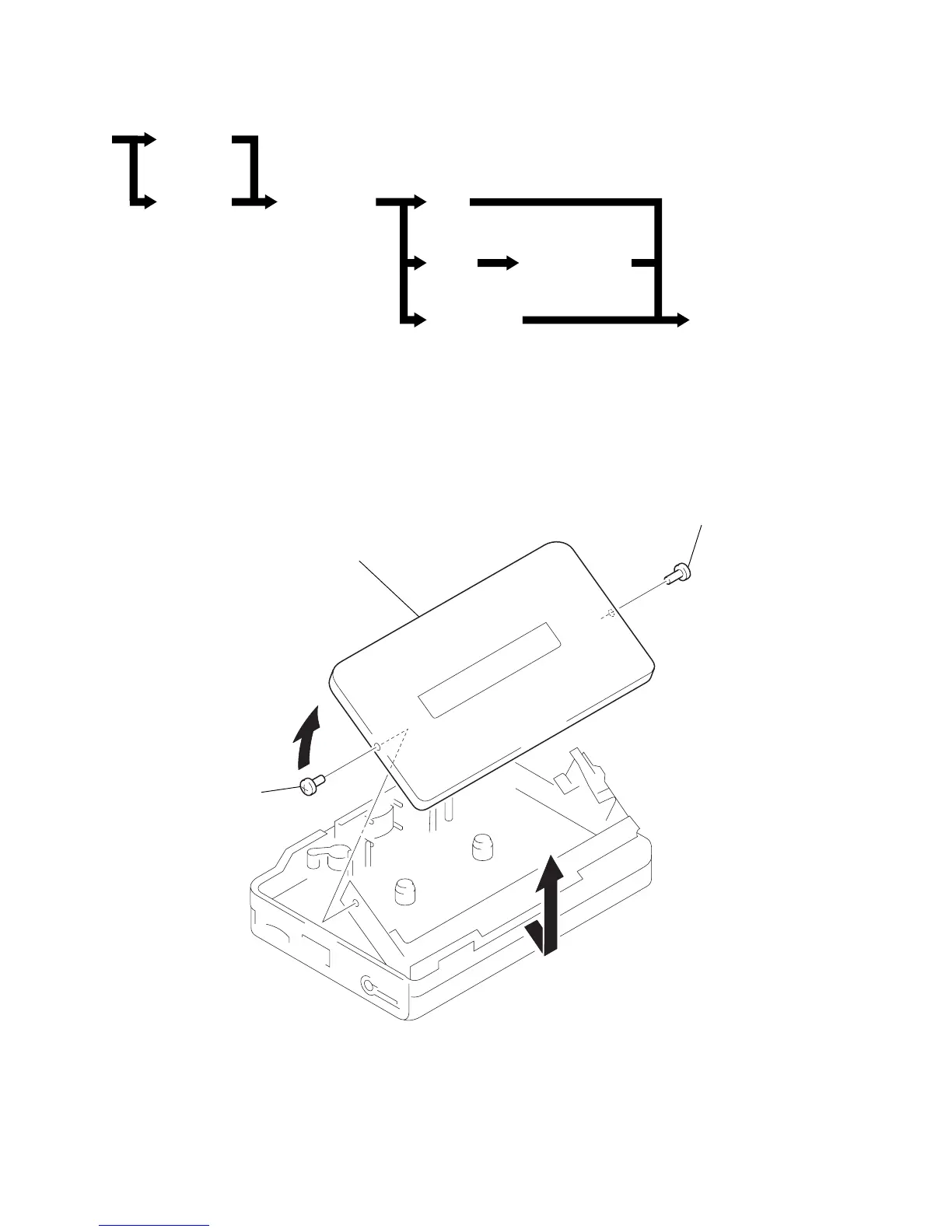

• This set can be disassembled in the order shown below.
LID ASSY, CASSETTE
Case AssySet
Lid Assy,
Cassette
Ornament Assy Belt
Holder
Motor (Capstan/Reel)
(M901)
Head, Magnetic
Main Board,
Note for Installation
1 Open the cassette lid assy
3 Remove the cassette lid assy to
direction of the arrow
A .
A
2
screw
(M1.4
× 1.6)
2 screw
(M1.4
× 2.0)

Sony WM-EX570 Specifications

General

Brand	Sony
Model	WM-EX570
Category	Cassette Player
Language	English
