– 4 –

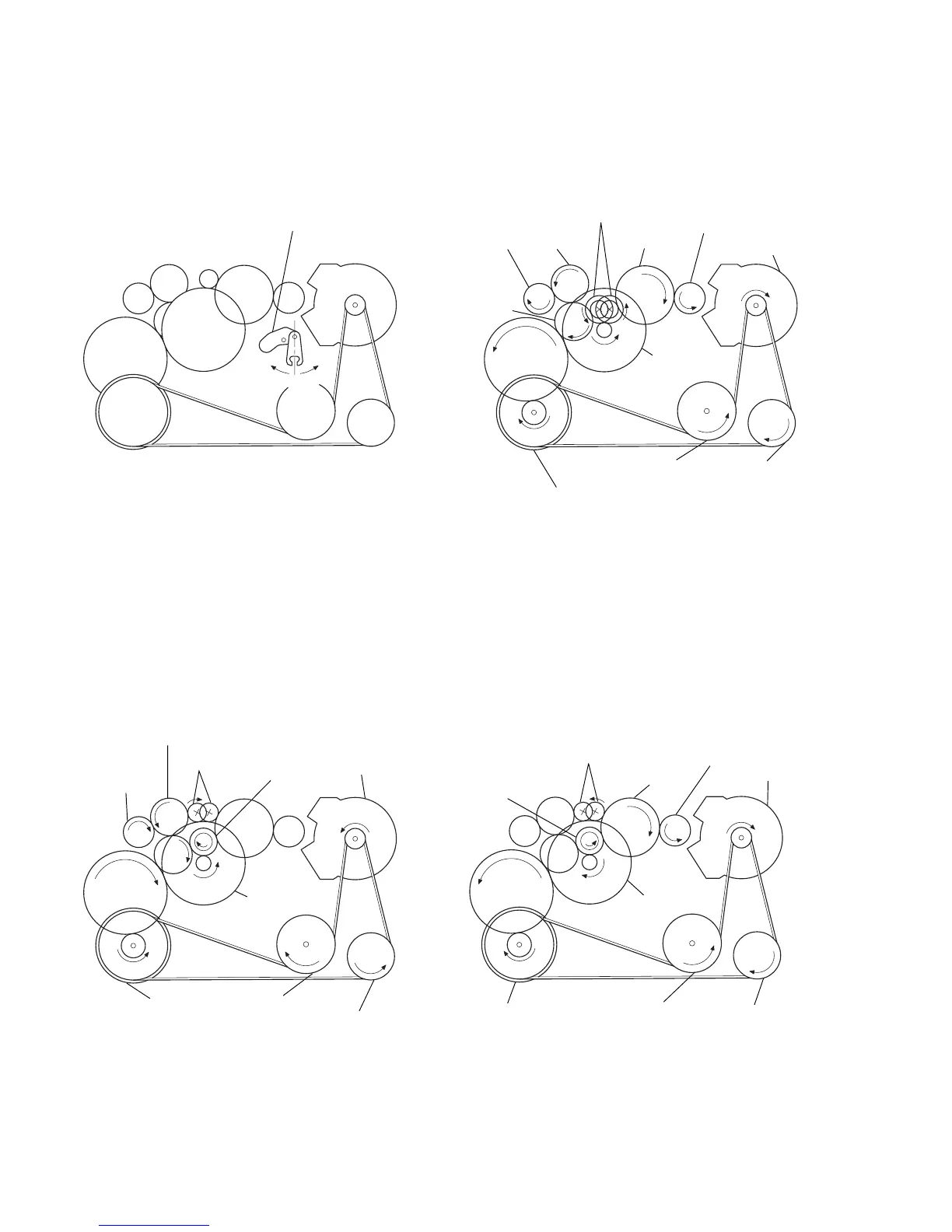

Lever (SW) Rotation system
Rotation system during PLAY.
Rotation system during FF.
Rotation system during REW.
senter
lever (SW)
side R
side F
Pulley (reverse)flywheel (R) ass’y
flywheel (N) ass’y
gear (Y)
gear (TA)
gear (TB)
gear (S)
motor pulle
y
gear (REEL)
(S side)
gear (NR)
(REV: right side/
FWD: left side)
gear (REEL)
(T side)
clutch ass’y (M)
gear (TB)
gear (REEL)
(T side)
gear (Y)
gear (NR)
motor pulley
pulley (reverse)
clutch ass’y (M)
flywheel (R) ass’y
flywheel (N) ass’y
gear (FR)
(FF: left side)
gear (NR)
gear (Y)
gear (S)
flywheel (N) ass’y
flywheel (R) ass’y
pulley (reverse)
clutch ass’y (M)
motor pulley
gear (REEL)
(S side)
gear (FR)
(REW: right side)
